Source 4 Mini | A Gobo Light that is small, lightweight, energy efficient and comes with the legendary ETC stage spot light reputation.
Source Four Mini, just like the standard Source 4 but 1/10 the size and weight. Can be used in stage lighting, theater lighting, film and video lighting, photo lighting, retail store lighting, restaurant lighting, club lighting or commercial lighting.
The ETC Lighting Source Four Mini is everything you expect from the Source Four? brand ? ease of use, superior optics, crystal-clear image projection and a bright, even field ? but packaged in a tiny fixture that?s just one-tenth the size of a traditional Source Four. A mere nine inches long, the 50-watt Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children?s theaters and other small-scale installations where size matters.

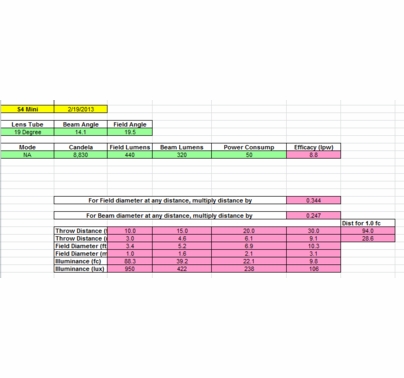

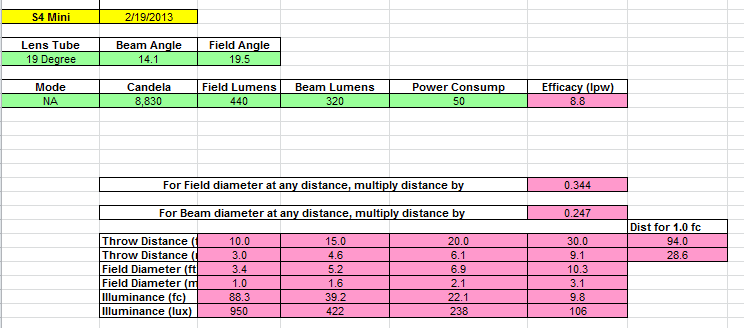

The Source 4 Mini is available in four field angles: 19?, 26?, 36? and 50?, with a 2.5-inch diameter lens.
The portable version featured here comes with a miniature C-clamp, E-sized pattern holder, gel media frame, edison connector and 50W lamp.
- Rugged, die-cast fixture body
- Interchangeable lens tubes permit selection of 19?, 26?,
36? and 50? field angles
- Uniquely efficient optical system
- Effective heat dissipation using dichroic reflector
for a cool beam
- Long life dimmable tungsten source
- Three-plane shutters
- Multiple accessories available for color, pattern,and filtering
- Die cast aluminum construction (a380 grade)
- Fine-texture, high-temperature powder-coated paint
- Steel yoke with .406? diameter mounting hole
- Rotating shutter assembly ?175 degree
- Removable rear housing for easy lamp replacement
- Stainless steel, full hard shutters in a tri-plane assembly, .40mm (a301 grade)
- Fixed beam angles to suit a range of throw distances
- Tool-free tilt and beam adjustment
- High impact resistant, thermally insulated knobs and shutter handles
- Captive accessory slot for pattern holder (included)
- Dual captive accessory slots for media frame (included)
--yoke mounted 12v transformer in color matched enclosure
--miniature C-clamp mounting (included)- for use with 3/8?
to 1? pipe (.675? to 1.315?od)
--3 foot power cable with 2-prong edison connector
- GE Lightech Halogen transformer (included)
- 60W Class 2 electronic transformer
- 12V DC output
- 120V AC 60Hz input
- Power factor: 0.95
- Input current: 0.5a
- Output current: 5000.0 ma
- UL e193999 standard
- 18AWG input wire size
- Dimmable (forward and reverse phase)
- Ushio 50W Eurostar IR MR-16 lamp (included)
- Long life lamp: 5000 hrs. average lamp life
- 35? flood beam spread
- 3000K color temperature
- Halogen capsule cuts harmful UV
- Titanium oxide coating provides consistent color
- Axial filament
- Base type: GU5.3
Fixture Wt: 2.7 lbs
