PRODUCT DESCRIPTION

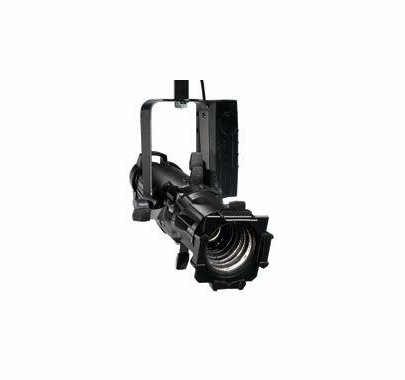

ETC Source 4 Mini Portable w/ 26 Degree Lens 50W, Black
***Tungsten Version of Source 4 Mini Has Been Discontinued***

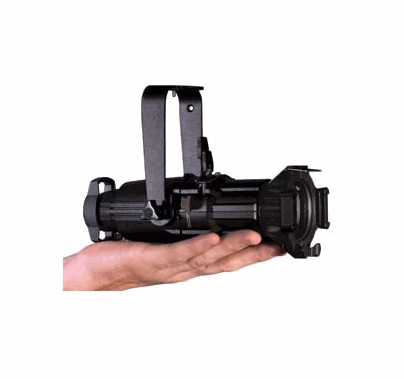

The Source 4 Mini is everything you expect from the Source Four brand: ease of use, superior optics, crystal-clear image projection and a bright, even field, but packaged in a tiny fixture that's just one-tenth the size of a traditional Source Four. A mere nine inches long, the 50-watt Source Four Mini can go anywhere: museums, retail outlets, restaurants, light labs, children's theaters and other small-scale installations where size matters.
The portable version featured here comes with a miniature C-clamp, E-sized pattern holder, gel media frame, edison connector and 50W lamp.
FEATURES
- Rugged, die-cast fixture body
- Interchangeable lens tubes permit selection of 19, 26,
36 and 50 degree field angles
- Uniquely efficient optical system
- Effective heat dissipation using dichroic reflector
for a cool beam
- Long life dimmable tungsten source
- Three-plane shutters
- Multiple accessories available for color, pattern,and filtering
SPECIFICATIONSPhysical
- Die cast aluminum construction (a380 grade)
- Fine-texture, high-temperature powder-coated paint
- Steel yoke with .406" diameter mounting hole
- Rotating shutter assembly 175 degree
- Removable rear housing for easy lamp replacement
- Stainless steel, full hard shutters in a tri-plane assembly, .40mm (a301 grade)
- Fixed beam angles to suit a range of throw distances
- Tool-free tilt and beam adjustment
- High impact resistant, thermally insulated knobs and shutter handles
- Captive accessory slot for pattern holder (included)
- Dual captive accessory slots for media frame (included)
- Portable-
--yoke mounted 12v transformer in color matched enclosure
--miniature C-clamp mounting (included)- for use with 3/8"
to 1" pipe (.675" to 1.315"od)
--3 foot power cable with 2-prong Edison connector
Electrical
- GE Lightech Halogen transformer (included)
- 60W Class 2 electronic transformer
- Potted
- 12V DC output
- 120V AC 60Hz input
- Power factor: 0.95
- Input current: 0.5a
- Output current: 5000.0 ma
- UL e193999 standard
- 18AWG input wire size
- Dimmable (forward and reverse phase)
Lamp
- Ushio 50W Eurostar IR MR-16 lamp (included)
- Long life lamp: 5000 hrs. average lamp life
- 35 degree flood beam spread
- 3000K color temperature
- Halogen capsule cuts harmful UV
- Titanium oxide coating provides consistent color
throughout life
- Axial filament
- Base type: GU5.3
Fixture Wt: 2.7 lbs
