Aadyntech JAB V2 Variable LED 3000K - 6000K

PRODUCT DESCRIPTION

Aadyntech JAB V2 Variable LED 3000K - 6000K

NEW MODEL: Now 30% Brighter and Onboard Digital Controller

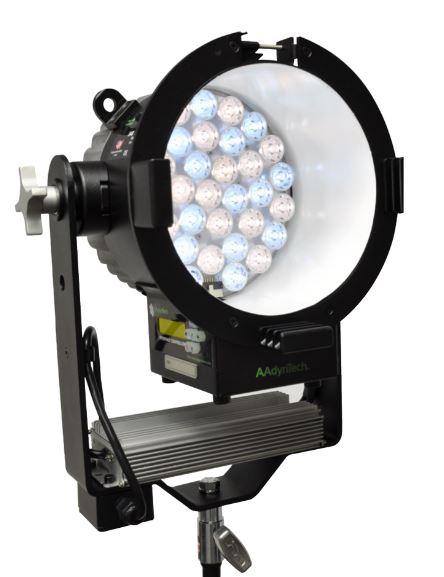

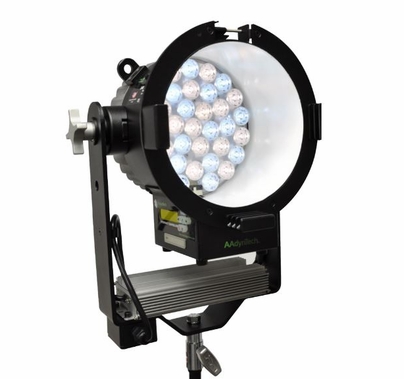

The JAB V2 Variable has an adjustable color temperature range of 3,000K to 6,000K and develops an output of 2,100 fc @ 10 feet. Most remarkable is the Variable draws only 1.78 amp of power at full output, and can be operated at 28.8v DC battery power all day long. Like all AAdynTech fixtures, the Variable generates no heat or harmful UV or IR emissions, is self-contained with an auto-ranging universal power supply requiring no ballast, head cables or lamps, and instant ON ensures no warm-up wait time on set.

Optical efficiency provides a single light source eliminating multiple shadows. The Variable comes equipped with four quick change lenses to vary the beam angle for spot, medium or flood while maintaining a flat, even field of light. There are several control possibilities with the Variable; local onboard manual controls, DMX with DMX loop-thru, or via the optional illuminated UIM Digital Remote. A heavy-duty yoke is provided and a full set of accessory options are available; barn doors, ATA Mil-spec road cases, speed rings, light banks, filters and more. Several Kit versions coupled with various accessories and housed in a rugged Mil-Spec waterproof molded rolling case. When your production requires precise color temperature control and reliable even lighting; the JAB V2 Variable by AAdynTech has no peer.

JAB Variable Includes

• Fixture w/ head duty yoke
• 5 Degree Lens
• 15 Degree Lens
• 30 Degree Lens
• 55 Degree Lens
• Scrim Bag

FEATURES

• 2,100 foot candle output @ 10 feet
• Adjustable 3000K to 6000K color temperature
• Draws only 1.78 amps at full output
• Auto range voltage 100/277 VAC 50/60Hz
• Up to 90% energy savings
• Precise brightness control with no color shift
• Single light source eliminates multiple shadows
• No heat generation, operates cool to the touch
• Douse button (momentary off)

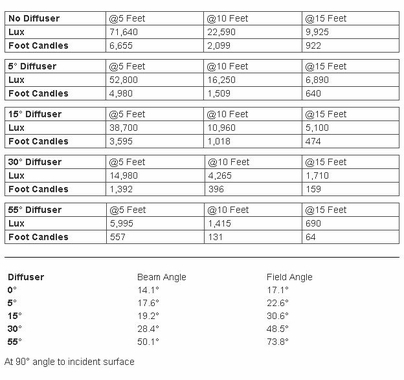

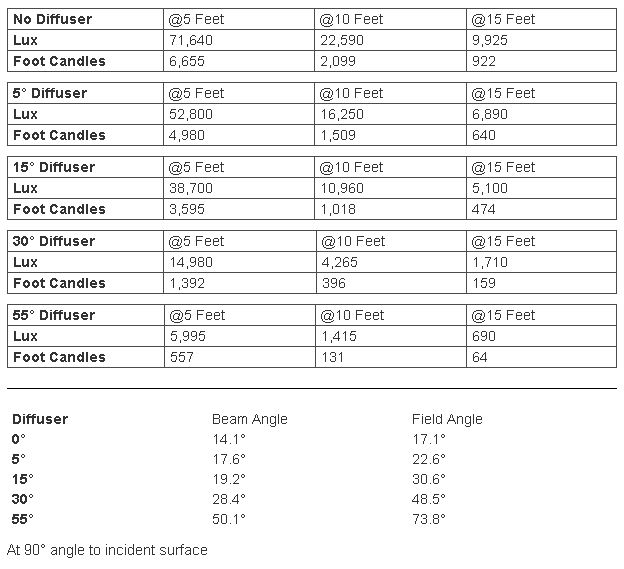

• Included 5, 15, 30, 55 degree lenses to vary beam angle
• No head cables, ballast or spare lamps

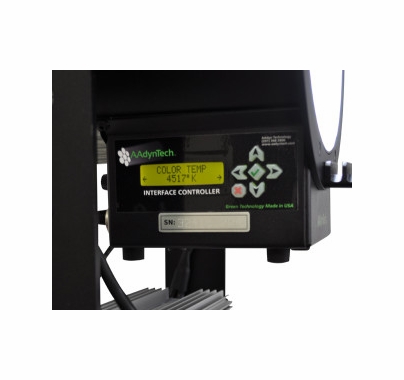

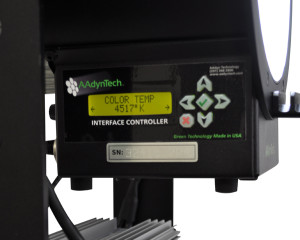

• Optional digital User Interface Module (UIM) control
• Recalibration countdown hour smart meter (with UIM)
• Full DMX control w/ DMX loop-thru
• 5-pin XLR DMX In/Out
• Programmable multiple lightening and strobe effects (with UIM)
• Multiple user memory storage with recall (with UIM)
• 2 year warranty on fixture
• 60,000 hour warranty on LED diodes
• Operating temperature at -20c to +50c
• Certified UL, ETL, CSA, CE & RoHS compliant
• USA & International Patent Pending

Specifications

• Control Local, UIM, DMX
• Source LED, 3,000K to 6,000K
• Life Expectancy 60,000 Hours
• Cooling Passive
• Mounting Baby Pin
• Certifications ETL, UL, CSA, CE and RoHS Compliant

Dimensions

• Length 339.0 mm 13.3 in
• Width 326.5 mm 12.9 in
• Height 554.9 mm 21.8 in
• Weight 8.9 kg 19.5 lbs

Power

• Input Voltage 100-277v AC Battery (30v DC)
• Input Freq 50/60 Hz
• Input Current 1.78 Amp@120V 120 watts @ full
• Connection US NEMA 5-15 Others Available

Highlights

• RoHS Compliant
• Variable Kelvin Color Temp 3000K to 6000K
• Dimmable with no color shift
• Draws 1.00 amps at max output
• No UV or IR
