PRODUCT DESCRIPTION
Revolutionary Soft Light for Exceptional Illumination
Key Features
- Complete color control from Tungsten to Daylight
- RGB color capability with intuitive hue and saturation control
- Fast and easy color selection with advanced LED Light Engine
- Produces a single, soft shadow for natural lighting
- Durable thermoplastic front diffusion panel (25.4" x 11.8")
- Ships with standard medium diffusion panel
- Light head, power supply, and header cable included
- Two-piece system for convenient power supply mounting
- Optional accessories for creative possibilities
- Built-in dimming, 512 DMX input and output
- Compatibility with wireless DMX using optional Arri Skylink
- 420 watts power consumption with 2k tungsten or 6k space light output
- Ultra-thin 5.1" depth for tight spaces
- Built-in effects for dynamic lighting scenarios
- Optional accessories for precise light beam control

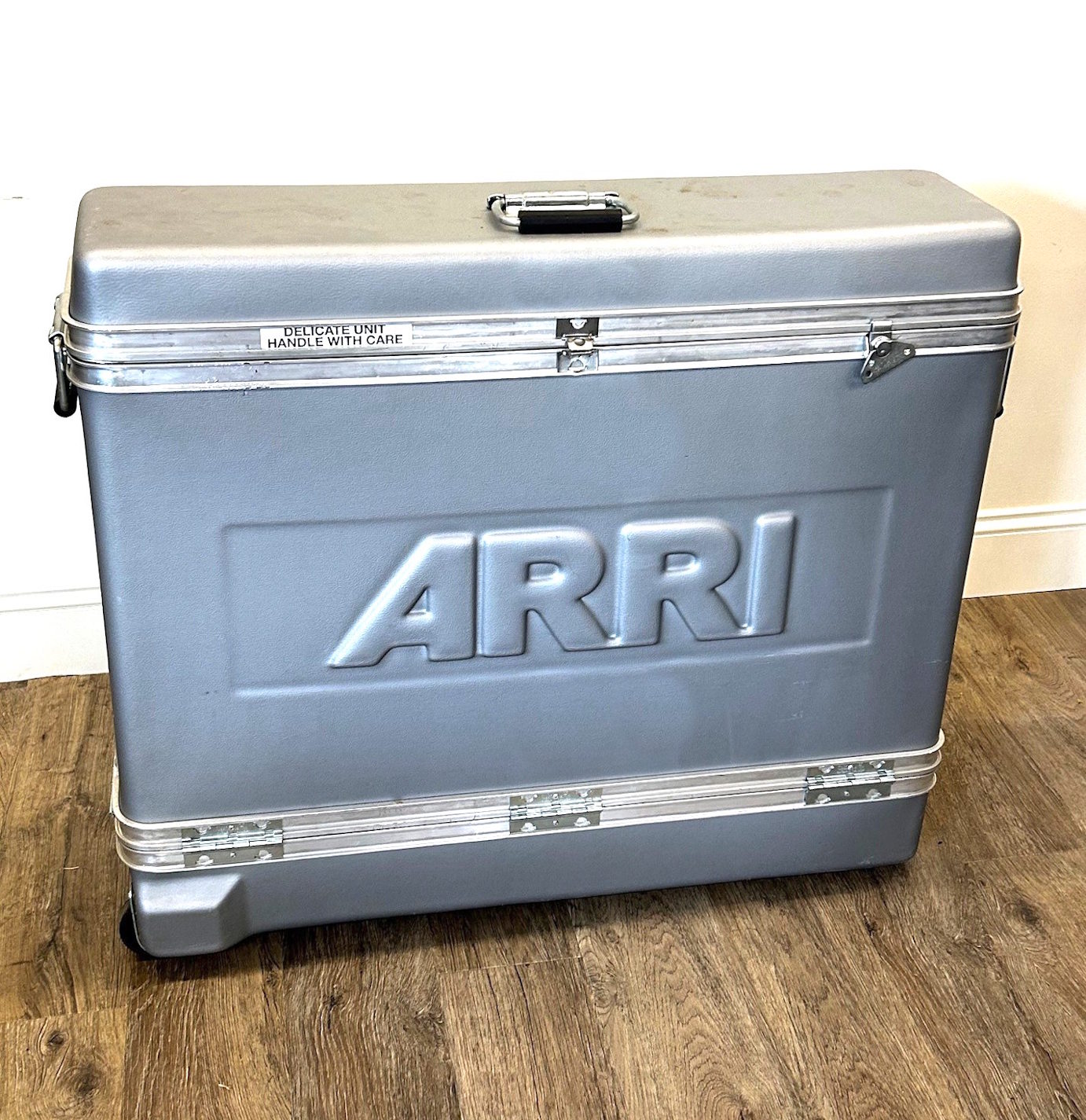

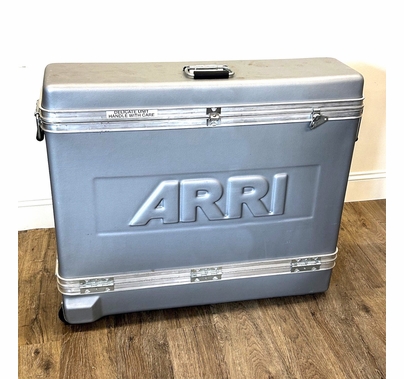

- Custom-designed SkyPanel Case for secure storage and transport
- Adaptable to various setups – combo stand or junior pipe clamp
- Built-in USB port for software updates
- Designed and built in Germany for rugged durability
- Available in budget-friendly remote phosphor version
Description

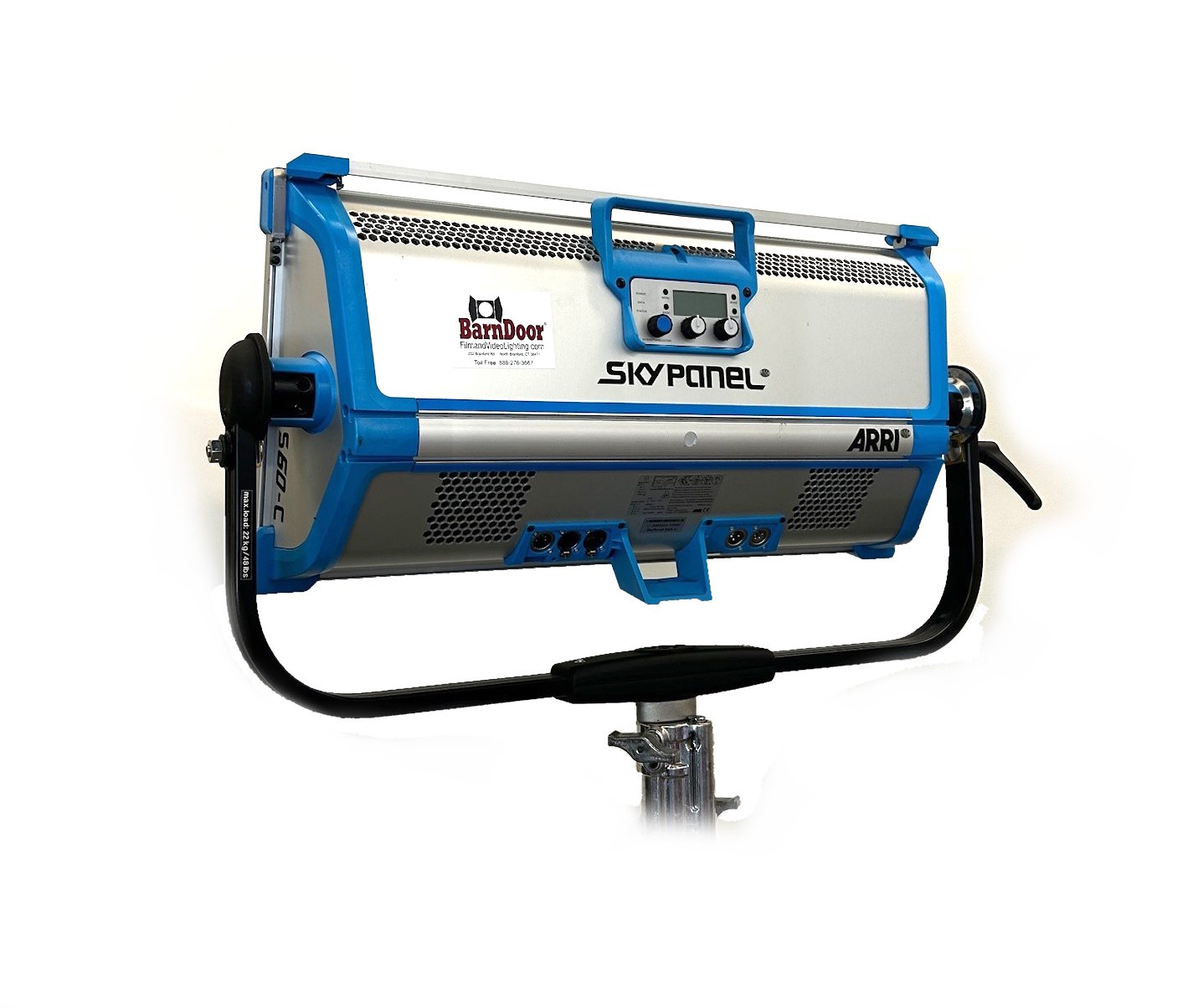

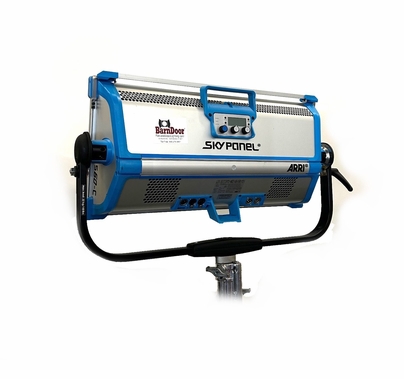

Elevate your lighting game with the Arri SkyPanel S60-C LED Light, a revolutionary soft light that redefines the art of illumination. With complete color control ranging from Tungsten to Daylight, this versatile light boasts exceptional color rendition and the ability to produce any RGB color through intuitive hue and saturation control.
Say goodbye to complex setups with its fast and easy color selection using the advanced LED Light Engine. The Arri S60-C is your all-in-one solution, whether you're aiming to create natural sunlight or use it as a beauty light for portraits and interviews. Achieve natural skin tones and a smooth, even light with ease.
Specs: LampHead

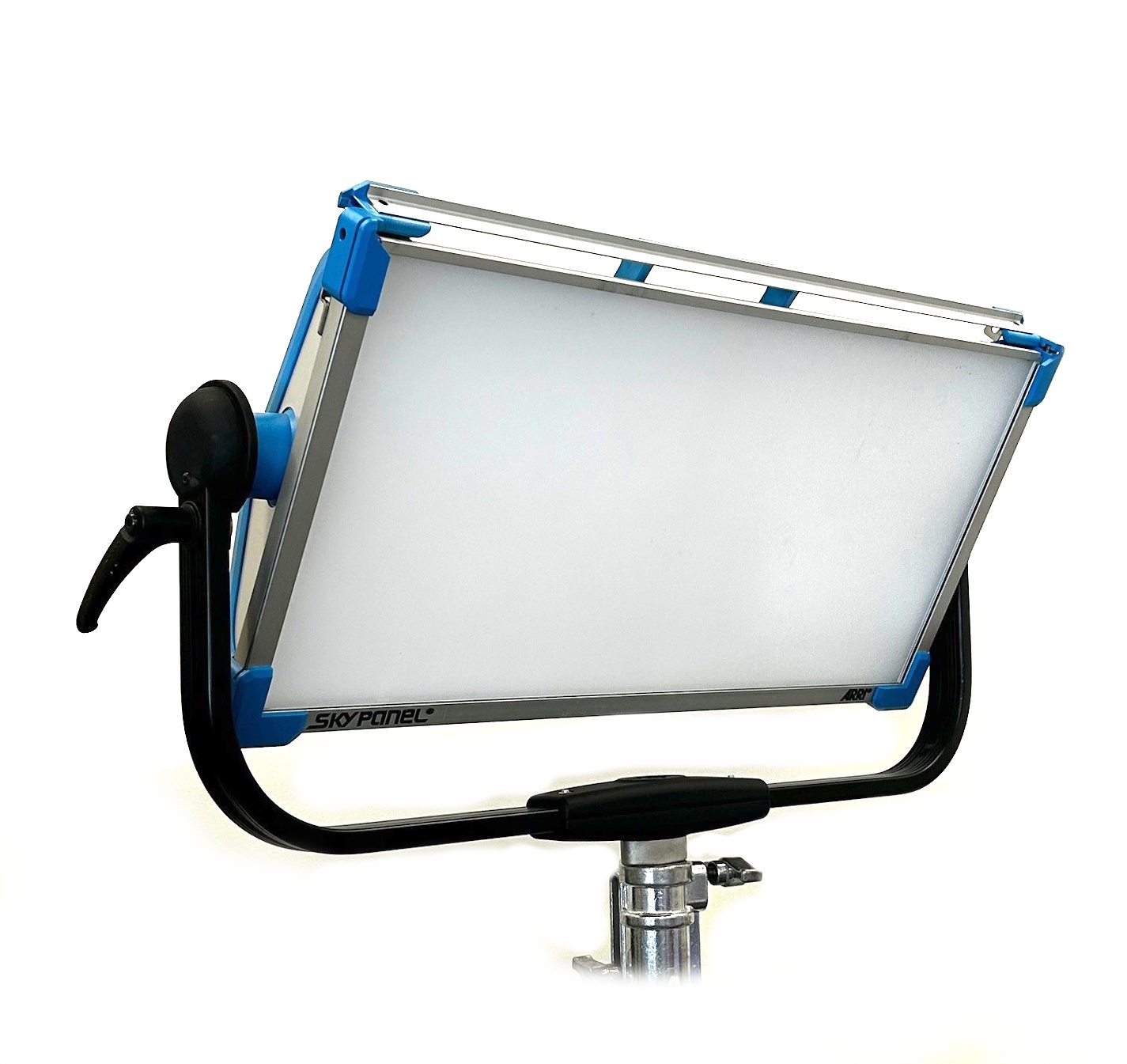

- Optical System: Soft Diffusion Panel
- Light Aperture: 645 x 300 mm / (25.4 x 11.8 inches)
- Beam Angle: 110 deg. (Half Peak Angle)
- Weight: Manual Version: 12 kg (26.5 lbs), Pole Op Version: 13 kg (28.7 lbs)
- Handling: Steel Yoke, High Strength Tilt Lock, Pole Operation Option (Pan & Tilt)
- Mounting: 28 mm Spigot (Junior Pin)
- Tilt Angle: +/- 90 deg.
- Lamphead Voltage Input: 48 V DC
- Power Consumption: 420 W Nominal, 450 W Maximum
- Lamphead Power Connection: Male 3-Pin XLR - 15 amp (Pin 1: Negative / Pin 2: Positive)
- Battery Connector: Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
- Battery DC Voltage Range: 23 - 36 V DC
- Battery Mode Light Output: 50% of Total Output
- White Light: 2,800K - 10,000K Continuously Variable Correlated Color Temperature
- Colored Light: Full RBG+W Color Gamut with Hue and Saturation Control
- Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
- Color Rendition: CRI Average > 95, TLCI Average > 90
- Green-Magenta Adjustment: Continuously Adjustable (Full Minusgreen to Full Plusgreen)
- Dimming: 0 - 100% Continuous

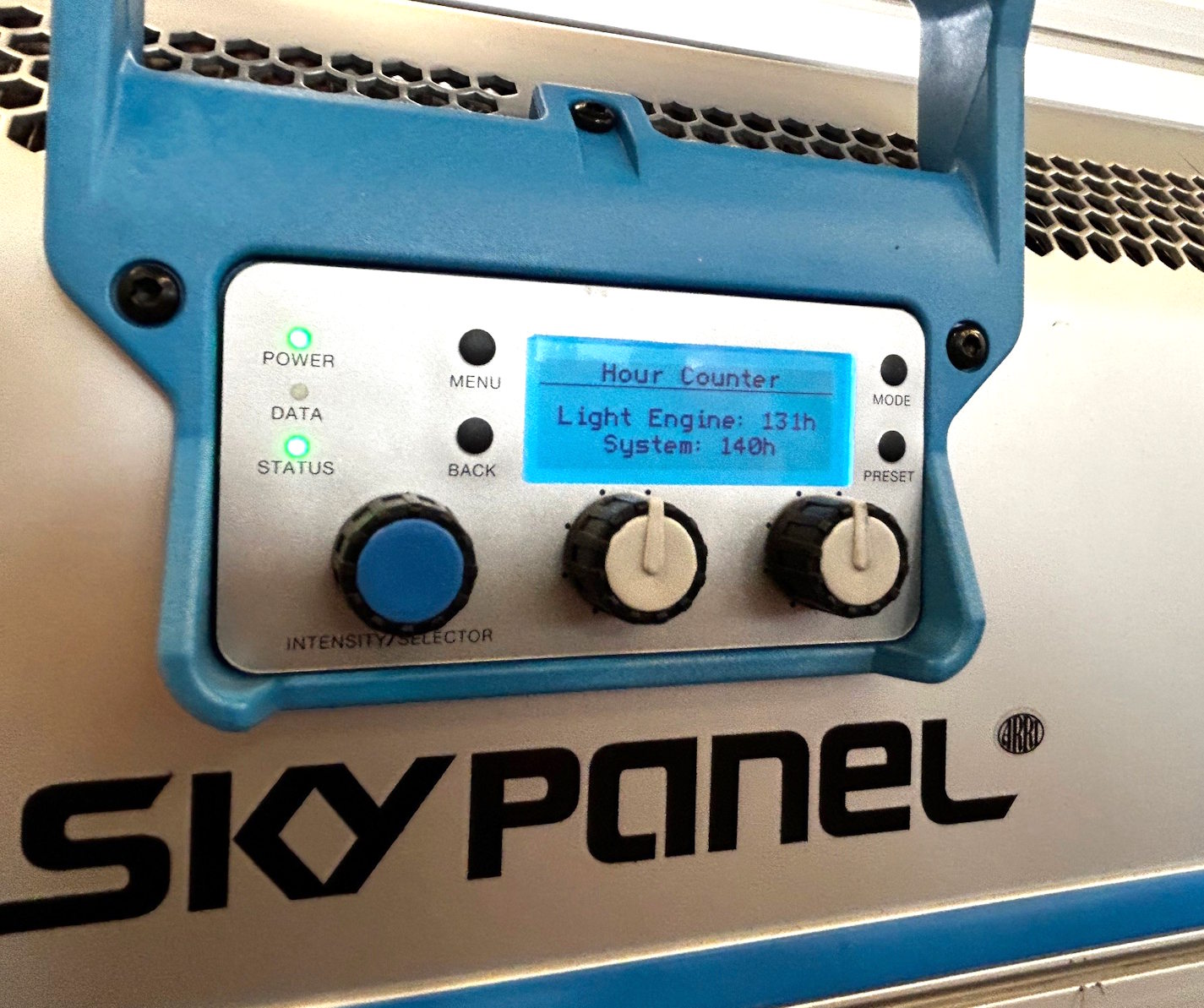

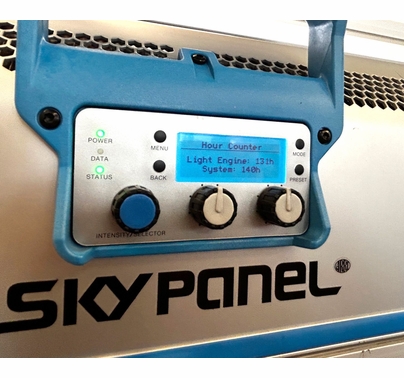

- Control: On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN Network Connectivity, USB-A
- Remote Device Management (RDM): DMX Setup, Hour Counter and Standard RDM Commands
- USB Interface: DMX Setup, Fixture Status and Firmware Upgrade Through PC, Mac and USB Stick
- Housing Color: Blue/Silver, Black
- Ambient Temperature Operation: -20 to +45 deg. C (-4 to +113 deg. F)
- Protection Class: IP 20
- Estimated LED Lifetime (L70): 50,000 hours
- Estimated Color Shift Over
Lifetime: < 200 K
- Certifications (pending): CE, FCC; GS, cNRTL, CB
Photometrics
Distance: 16.4' (5.0m)
At 3200K
With Standard Diffusion: 393 lux / 37 fc
With Lite Diffusion: 462 lux / 43 fc
With Heavy Diffusion: 320 lux / 30 fc
With Intensifier: 511 lux / 47 fc
At 5600K
With Standard Diffusion: 416 lux / 39 fc
Lite Diffusion: 489 lux / 45 fc
With Heavy Diffusion: 338 lux / 31 fc
With Intensifier: 541 lux / 50 fc
In the Box
- SkyPanel Fixture

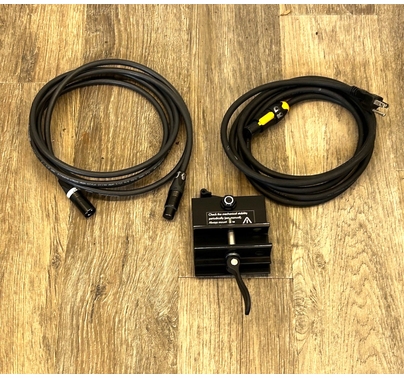

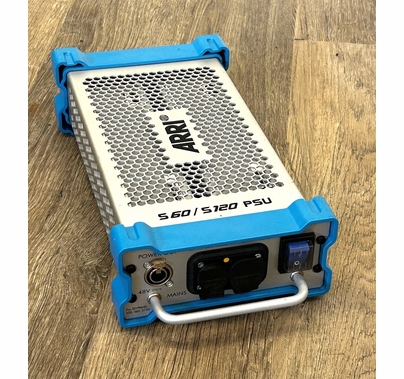

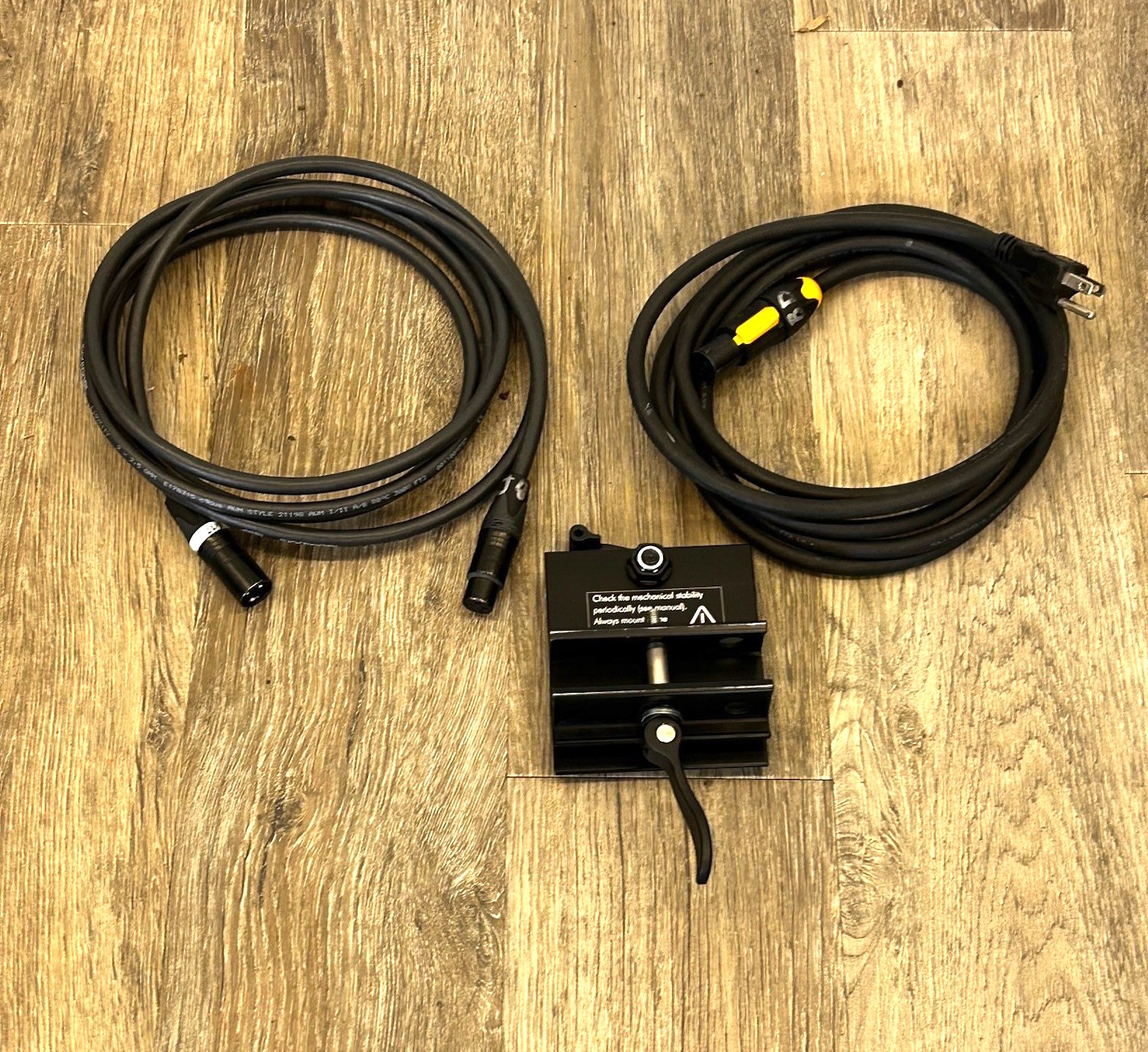

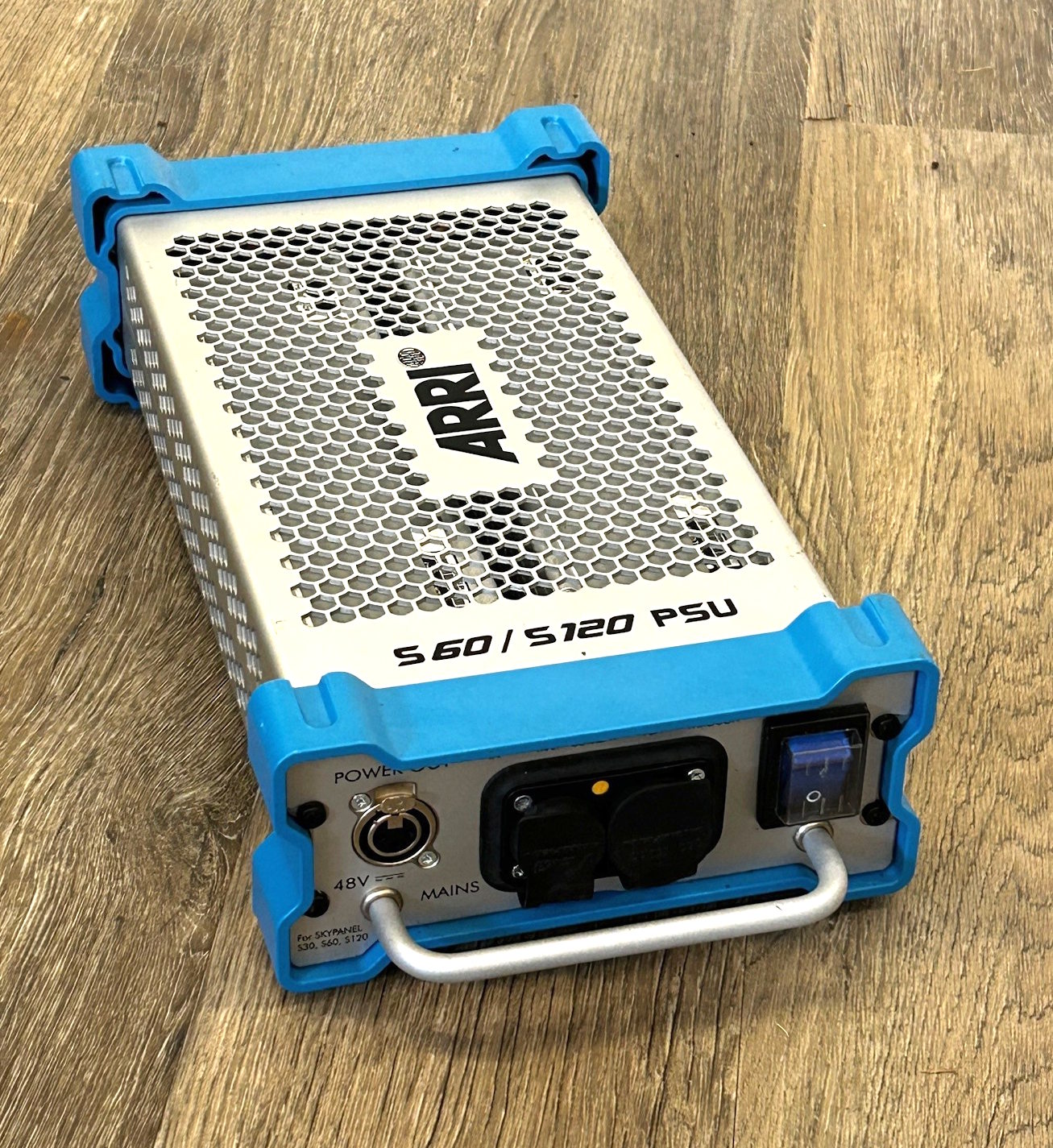

- Power Supply and Cables
- Rail Mount Adapter for Power Supply
- Standard Diffuser
- Honeycomb Grid
