PRODUCT DESCRIPTION

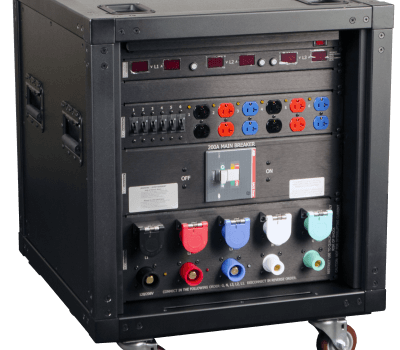

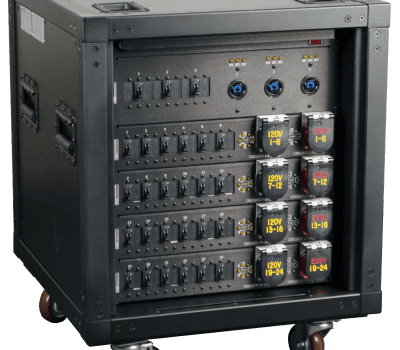

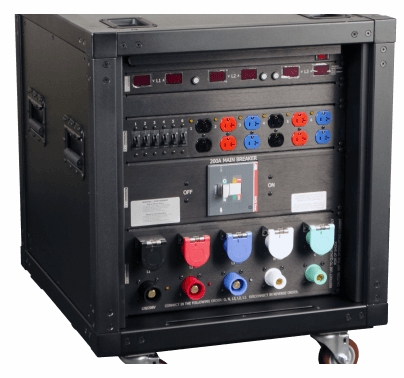

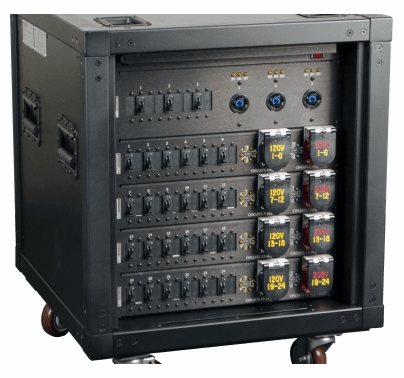

Lex Viceroy Rack 200 Amp PowerRack w/ 24 120V or 208V Circuits PRMK12D-MR4U-2LV
Lex Products Viceroy Rack 200 Amp PowerRack Rolling Distribution Racks are ideal for touring applications where durable racks are required. Built on a lightweight, rugged aluminum frame and all hardware is recessed to protect against breakage. Featuring a high impact, high density, polymer top, bottom and sides. Recessed cups on top panel for easy stacking. Lex Products builds simple and safe portable electrical distribution products. Anywhere portable power is required check out the Lex PowerRacks for film, video, stage and live event entertainment.
Application
(24) circuits of either 120 VAC or 208 VAC make an ideal distribution for entertainment lighting.
Specifications
- Input: (5) 16 Series Cam-type panel mount Male devices, RGN
- Thru: (5) 16 Series Cam-type panel mount Female devices with protective covers, RGN
- Main Breaker: 200 Amp
- Output: (4) 6-circuit, 120V LSC19 receptacles and (4) 6-circuit, 208V LSC19 receptacles (parallel)
- (3) NEMA L21-30, 30 Amp locking receptacles
- (6) 20 Amp, 120V NEMA 5-20 duplex receptacles
- Overcurrent Protection: (24) 20 Amp, 2 Pole branch rated circuit breakers
- (3) 30 Amp, 3 Pole branch rated circuit breakers
- (6) 20 Amp, Single Pole branch rated circuit breakers
- Dimensions: 26" L x 24 "W x 30' H
Features & Benefits
- Extruded aluminum frames combined with high density polyethlene (HDPE) enclosure panels create lightweight yet remarkbly strong and extremely durable rack enclosures
- Front and back rack doors have "snap-in" latches for ease of access
- All rack hardware is recessed on HDPE panels to protect from breakage and there are no exposed latches when doors are removed
- All 19" rack panels are laser engraved for clear and concise identification
- 100% rated, electronic main and magnetic branch circuit breakers eliminates worry of thermal tripping
- LED power indicators, including discrete six (6) circuit arrays for multipin receptacles, provide clear live circuit identification
Markets Served
- Live Event
- Motion PIcture
- Theatre
- TV/Film Production
- Worship Venues
- Convention Centers
- Rentals
