Lex 3RU Rack Mount Power Distro L14-30 In/Thru to Duplexes

PRODUCT DESCRIPTION

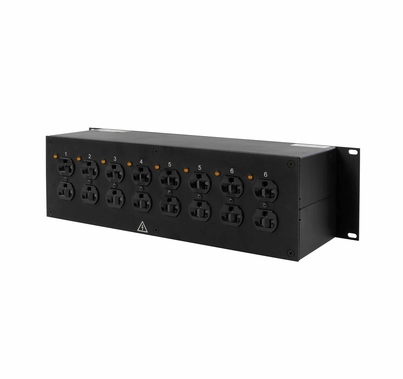

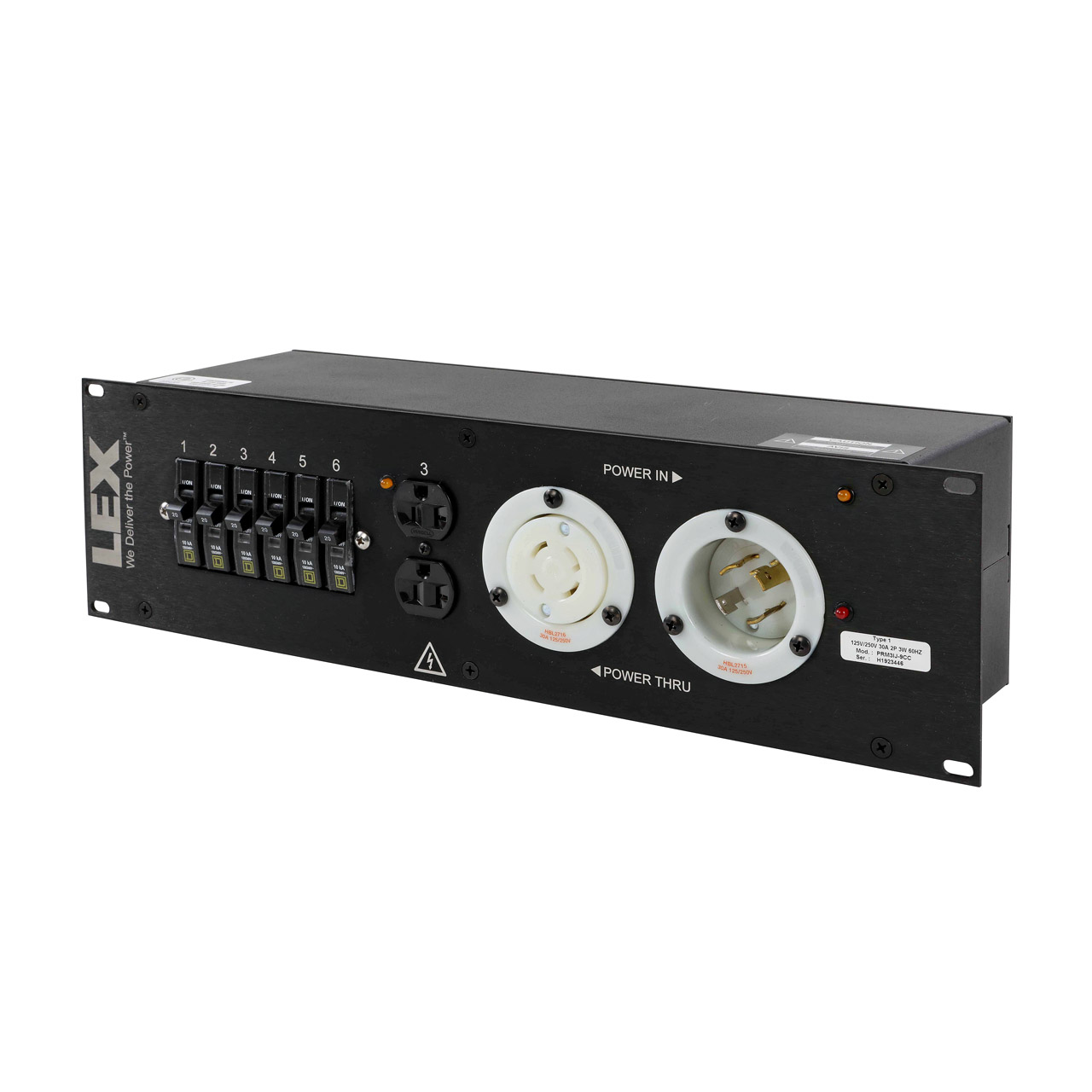

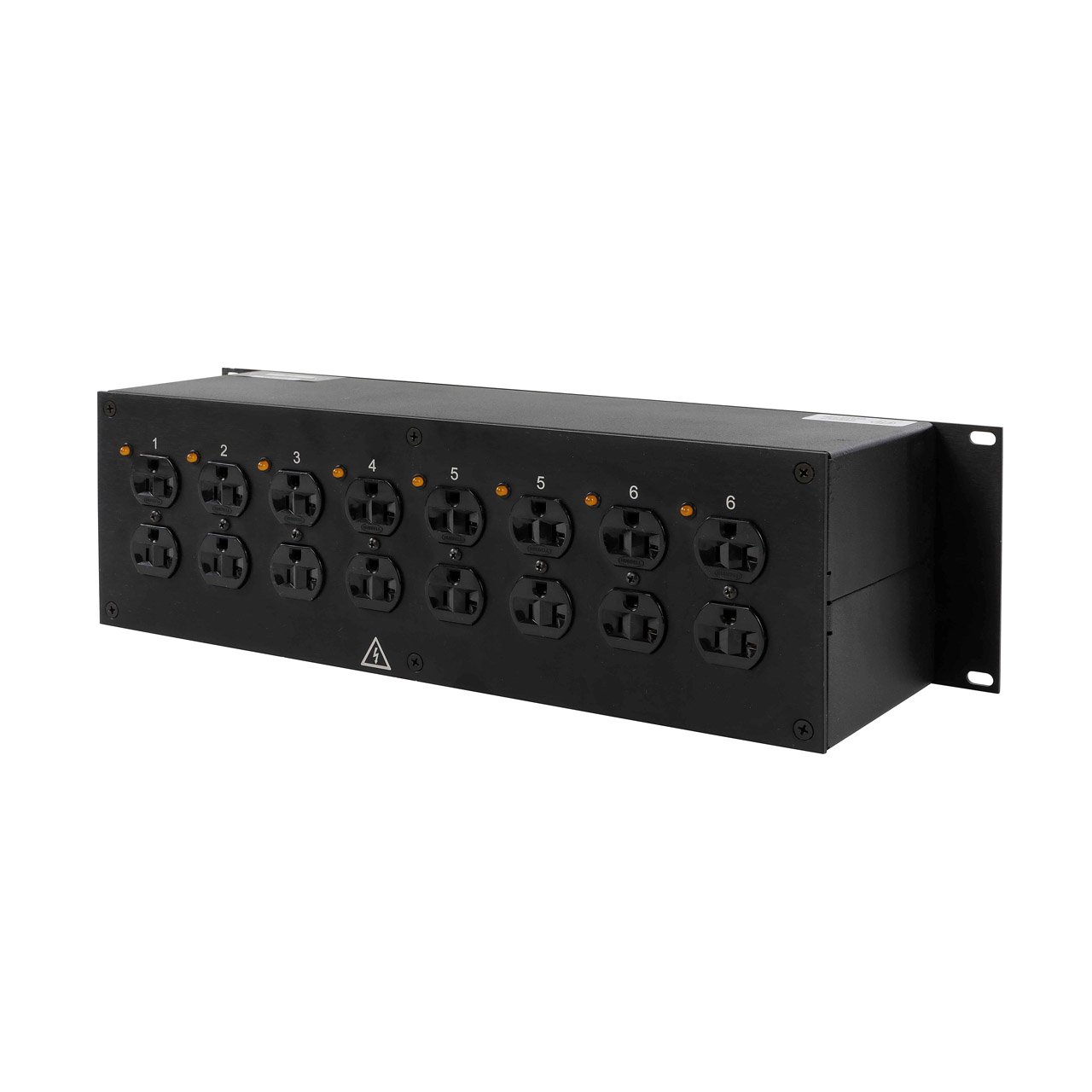

Lex 3RU Rack Mount Power Distro L14-30 In/Thru to Duplexes PRM3IJ-9CC

Specs

• Rating: Indoor
• Enclosure: Rack
• Input: NEMA
• Output: NEMA
• Amperage: 30A

Features & Benefits

• Modules mount in standard 19" permanent and rolling racks
• Modules are fully enclosed making them portable
• Easy to install for range of needs
• Branch-rated circuit protection
• Indicator lights included for clear presence of power
• Laser etched numbers for easy circuit identification
• Anodized black metal construction is lightweight and durable to withstand years of use

Markets Served

• Audio, Concerts, Live Events, Motion Picture and Television Production, Theatrical

Technical Information

• Rating: 50 Amp, Double-phase (H,H,N,G), 3-pole, 4-wire, 125/250Y VAC, 60 Hz
• Environmental Rating: NEMA Type 1 (Indoor Use)
• Input: (1) NEMA L14-30, 30 Amp, 3-pole, 4-wire, 125/250 VAC, locking inlet, panel mount
• Feed Thru: Yes
• Main Breaker: None
• Output: (9) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount
• Overcurrent Protection: (6) 20 Amp, 125 VAC, single-pole, thermal magnetic, branch-rated circuit breakers
• Enclosure Type: Rack Mount Box
• Dimensions: 5.50"L x 19.00"W x 5.25"H
• Weight: 12.0 lbs
• Agency Approval: cETLus Listed
