PRODUCT DESCRIPTION

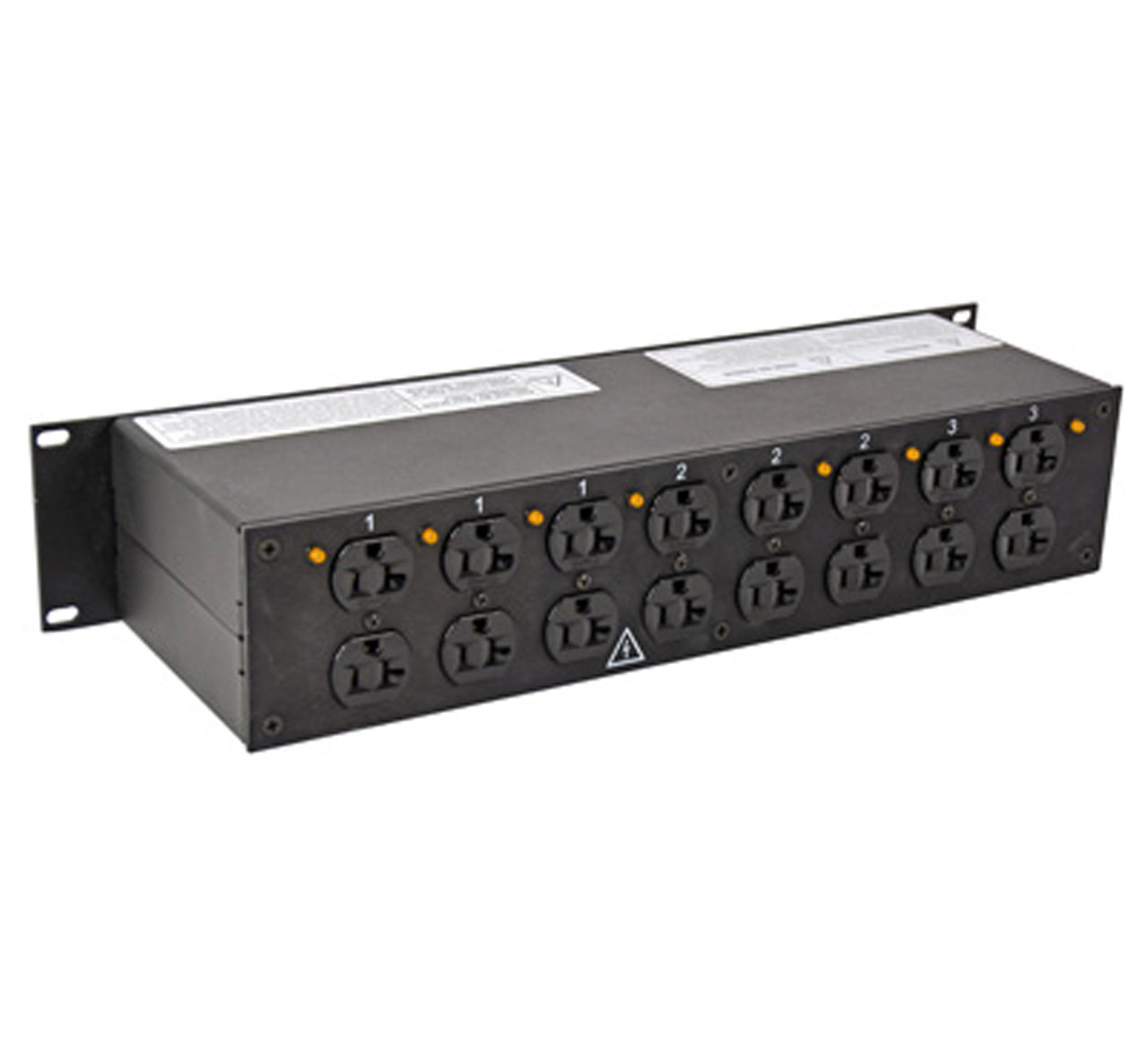

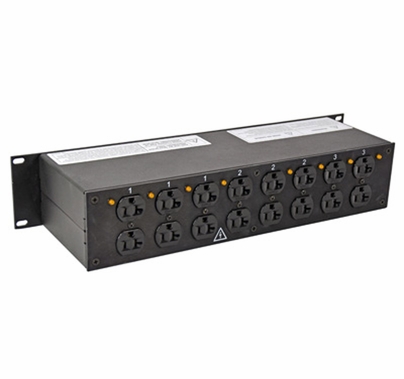

Lex 30 Amp 2RU Rack Mount Power Distro L5-30 to Duplex Receptacles PRM2IC-9CC
Description
30A 125 VAC, (1) NEMA L5-30 Locking Resceptcle (Inlet) to (9) NEMA 5-20 (Edison) Straight Blade Duplex Receptacles (Outlets), Feed Thru, Rack Mount Box.
Specs
- Markets: Entertainment
- Rating: Indoor
- Enclosure: Rack
- Input: NEMA
- Output: NEMA
- Amperage: 30A
Features & Benefits
- Modules mount in standard 19" permanent and rolling racks
- Modules are fully enclosed making them portable
- Easy to install for range of needs
- Branch-rated circuit protection
- Indicator lights included for clear presence of power
- Laser etched numbers for easy circuit identification
- Anodized black metal construction is lightweight and durable to withstand years of use
Markets Served
- Audio, Concerts, Live Events, Motion Picture and Television Production, Theatrical
Technical Information
- Rating: 30 Amp, Single Phase (H,N,G), 2-Pole, 3-Wire, 125 VAC, 60 Hz
- Environmental Rating: NEMA Type 1 (Indoor Use)
- Input: (1) NEMA L5-30, 30 Amp, 2-pole, 3-wire, 125 VAC, locking inlet, panel mount
- Feed Thru: Yes
- Main Breaker: None
- Output: (9) NEMA 5-20 (Edison), 15 Amp, 2-Pole, 3-Wire, 125 VAC, straight blade duplex receptacles, panel mount
- Feed Thru: Yes
- Overcurrent Protection: (3) 20 Amp, 125 VAC, single-pole, thermal magnetic, branch-rated circuit breakers
- Enclosure Type: Rack Mount Box
- Dimensions: 5.50"L x 19.00"W x 3.50"H
- Weight: 8.0 lbs
- Agency Approval: cETLus Listed
