PRODUCT DESCRIPTION

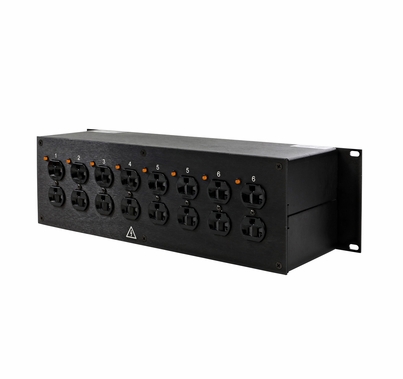

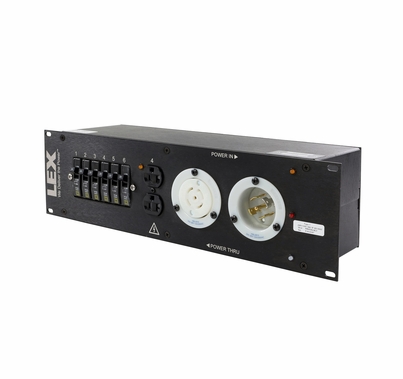

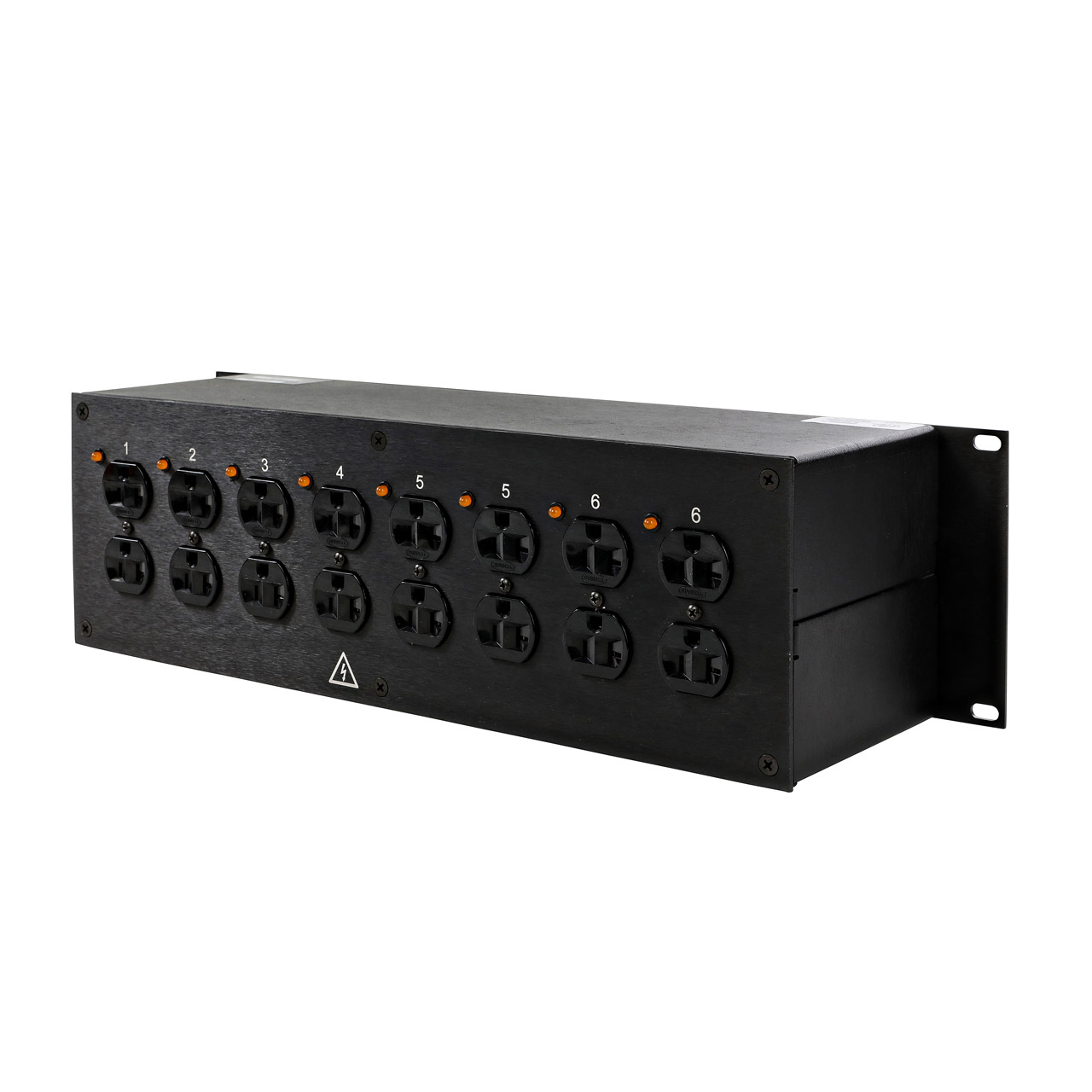

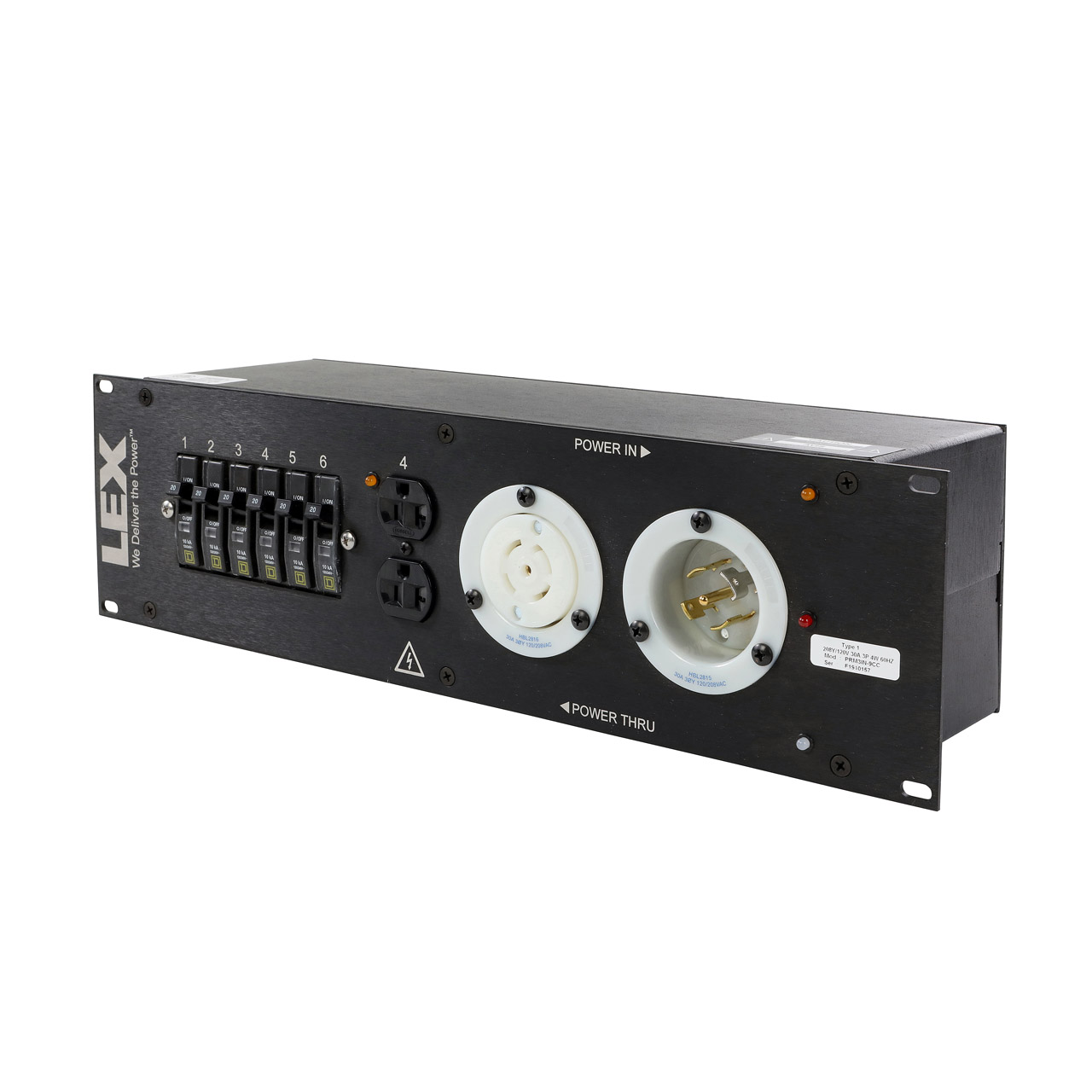

Lex 30 Amp 3RU Enclosed Rack Mount Power Distro, L21-30 to Duplex Receptacles | PRM3IN-9CC
30A 120/208Y VAC, (1) NEMA L21-30 Locking Male (Inlet) to (9) NEMA 5-20 (Edison) Straight Blade Receptacles (Outlets), Feed Thru, Rack Mount Box.
Features & Benefits
- Modules mount in standard 19" permanent and rolling rack mount power distro
- Modules are fully enclosed making them portable
- Easy to install for range of needs
- Branch-rated circuit protection
- Indicator lights included for clear presence of power
- Laser etched numbers for easy circuit identification
- Anodized black metal construction is lightweight and durable to withstand years of use
Markets Served
- Audio, Concerts, Live Events, Motion Picture and Television Production, Theatrical
Specs
- Rating: 30 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
- Environmental Rating: NEMA Type 1 (Indoor Use)
- Input: (1) NEMA L21-30, 30 Amp, 4-pole, 5-wire, 120/208Y VAC, locking receptacles, panel mount
- Feed Thru: Yes
Output: (9) NEMA 5-20, 20 Amp, 2-Pole, 3-Wire, 125 VAC, duplex receptacles, panel mount
- Overcurrent Protection: (6) 20 Amp, 125 VAC, single-pole, thermal magnetic, branch-rated circuit breakers
- Enclosure Type: Rack Mount Box
- Dimensions: 5.50"L x 19.00"W x 5.25"H
- Weight: 12.0 lbs
- Agency Approval: cETLus Listed
