Mole-Richardson 150W Baby LED Fresnel Tungsten LED Fixture

PRODUCT DESCRIPTION

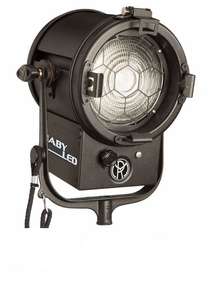

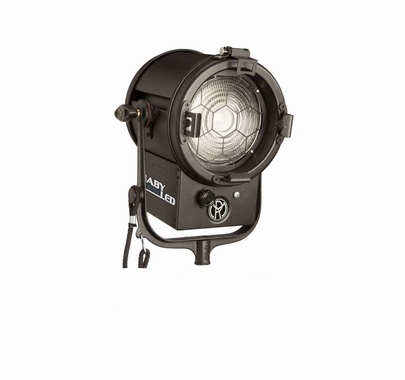

Mole-Richardson 150W BabyLED Fresnel 3200K LED Light

It looks like a Baby 1K Fresnel. It feels like a Baby. And most importantly, it performs like a Baby. A simple, rugged design that we are all familiar with. Seamless integration with existing Tungsten Halogen Incandescent, similar performance and optics as other 6 inch (152mm) Mole Fresnels, and about 80% less power consumption.

Introducing the MoleLED Fresnels. A design familiar to generations of lighting professionals is now loaded with state of the art electronics and the latest LED chip on-board technology. These revolutionary fixtures use a proprietary Quantum Dot LED developed and produced by Mole to replicate film and television 3200K Tungsten or 5600K Daylight exactly.

Specifications

• Head: Type 8921 Tungsten
• Rating: 90-250 Volts AC, 50-60Hz, 150 Watts, 0.75-1.5 Amps Max. DMX Standby Draw <.08 Amps Max.

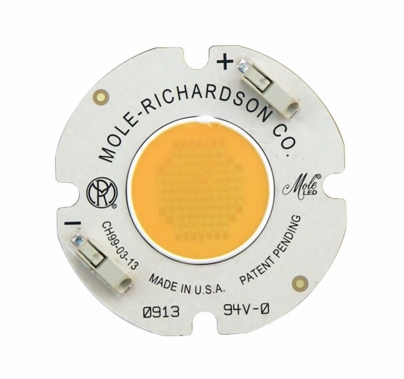

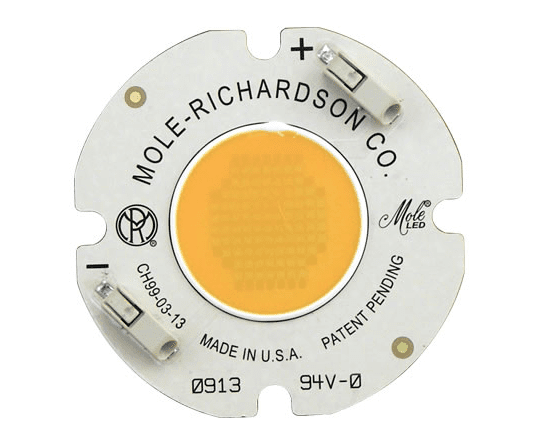

• Light Source: (1) - 150 Watt Mole-Richardson Quantum Dot LED 3200K 95CRI Tungsten
• Cable: Attached 25 ft (7.6m) Type SO., 3 Conductor, #18 AWG with NEMA 5-15 Edison (Other plugs and wire lengths available upon request)
• Switch: Thru-cord Toggle in Cable, DMX or Local Toggle in Trough
• Fuse: 1.5 Amp Slow-Blow. Fuseholder in Trough
• Dimming: Flicker Free, Direct DC Dimming On-Board Dimmer 100% -10% (Minimal Color Shift) DMX Dimmer 100% - 0% (Minimal Color Shift)

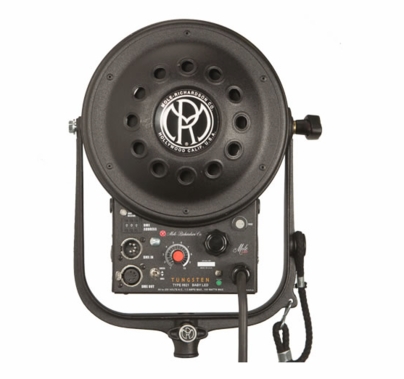

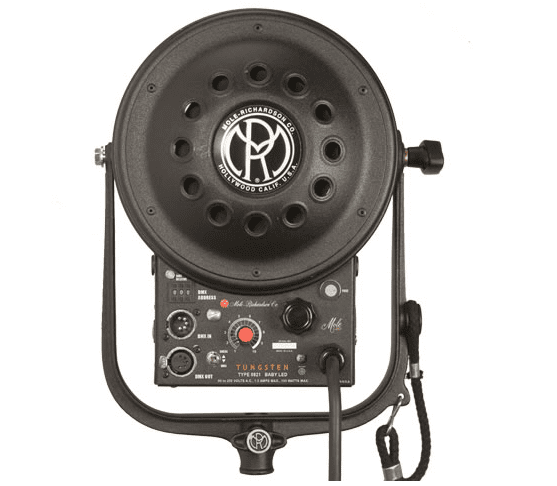

• Control: DMX512-A In and Out. Manual DMX Address Selector
• Condenser: 6in (152mm) Borosilicate Glass Fresnel
• Beam Angle: 10 to 55 degrees Variable Spot to Flood (Includes Field)
• Focusing: Rotating Knob on Front and Back
• Cooling: Passive-Forced Air
• Construction: Aluminum and Steel with Interlocking Channels
• Yoke: Cast Aluminum w/Standard 5/8 in (16mm) Receiver
• Compliance: RoHS. CE, UL, CSA Pending
• IP Rating: 30
• Finish: Textured Black Powder Epoxy Coat. (Other Colors Available)
• Size: 11 in/279mm(d) x 11 in/279mm(w) x 17 1/4 in / 438mm(h)
• Head Weight: 8.5lbs/3.86kg (Head Only) 11lbs/4.99kg (Head with 25ft/7.6m cable)
