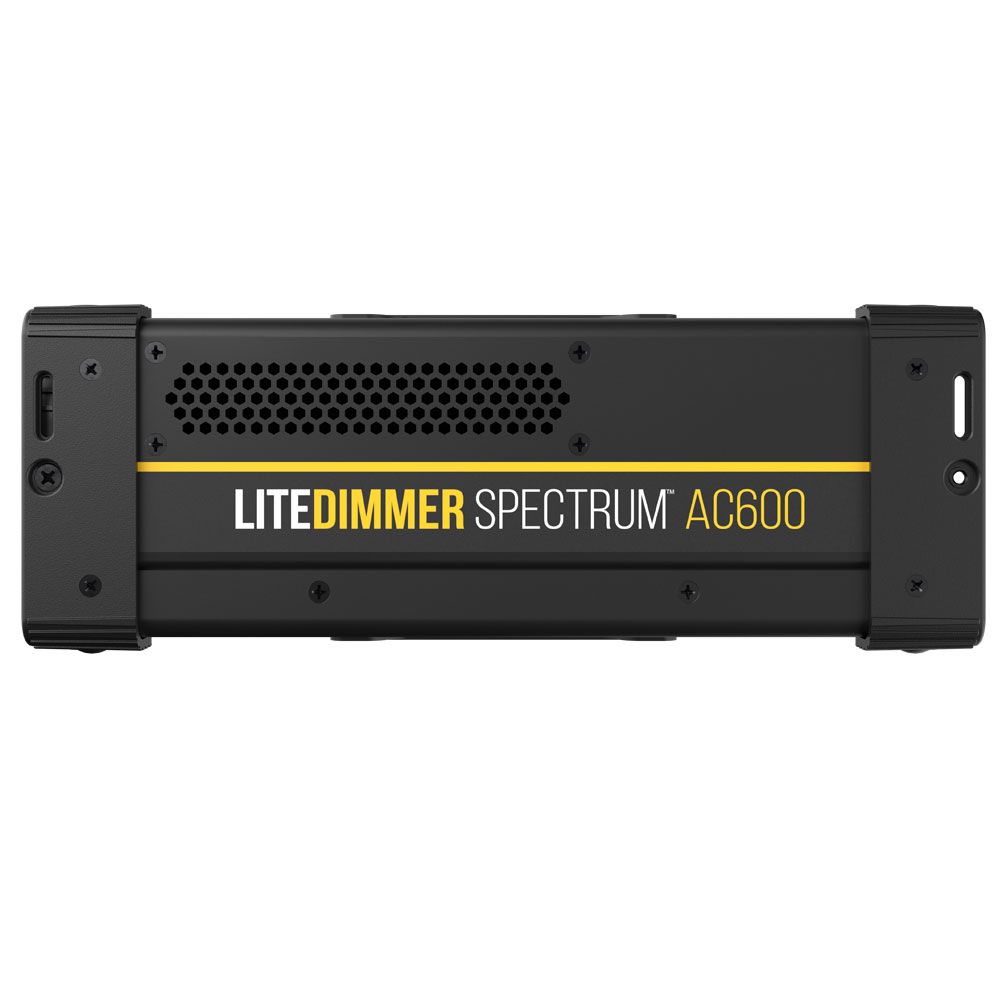

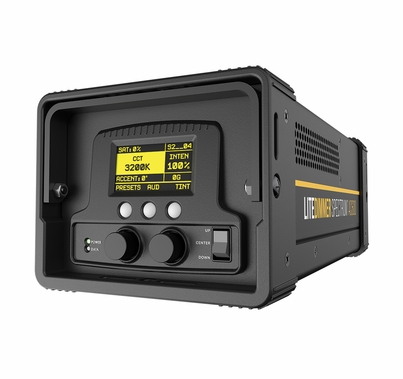

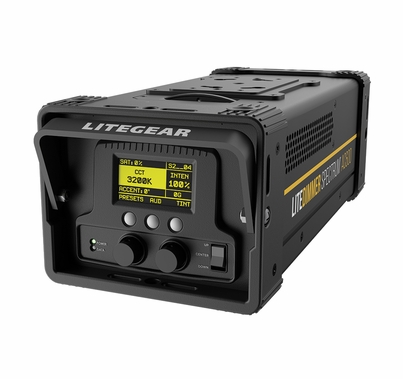

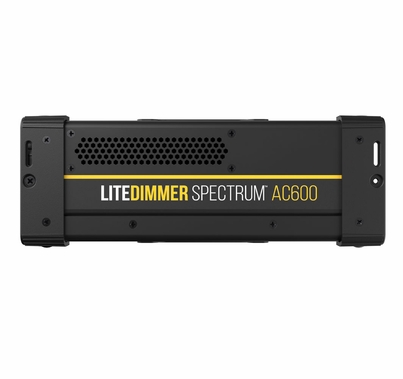

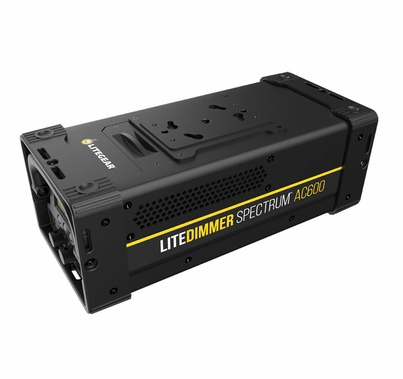

LiteGear LiteDimmer Spectrum AC600

SKU: LD1-00128

Availability: Usually leaves warehouse in 3-5 business days

Our Price: $2,691.00

Price: $2,990.00 You Save: $299.00 (10%)

Have a Question? Need Expert Advice?

Give Us a Call 888-276-3667

PRODUCT DESCRIPTION

The LiteDimmer Spectrum AC600 is a new class of LED dimmers engineered for demanding film and video lighting professionals, made specifically with Auroris in mind. With advanced processing power, Ethernet-based protocols, and seamless local control, it reinvents large-format pixel mapping for overhead lighting.

Key Features & Benefits

Controls up to 12 large-format pixels - perfect for Auroris and other overhead installations
Integrated Ethernet switch with dual ports, supporting Art-Net and sACN protocols
Advanced color control with cutting-edge software features for creative flexibility

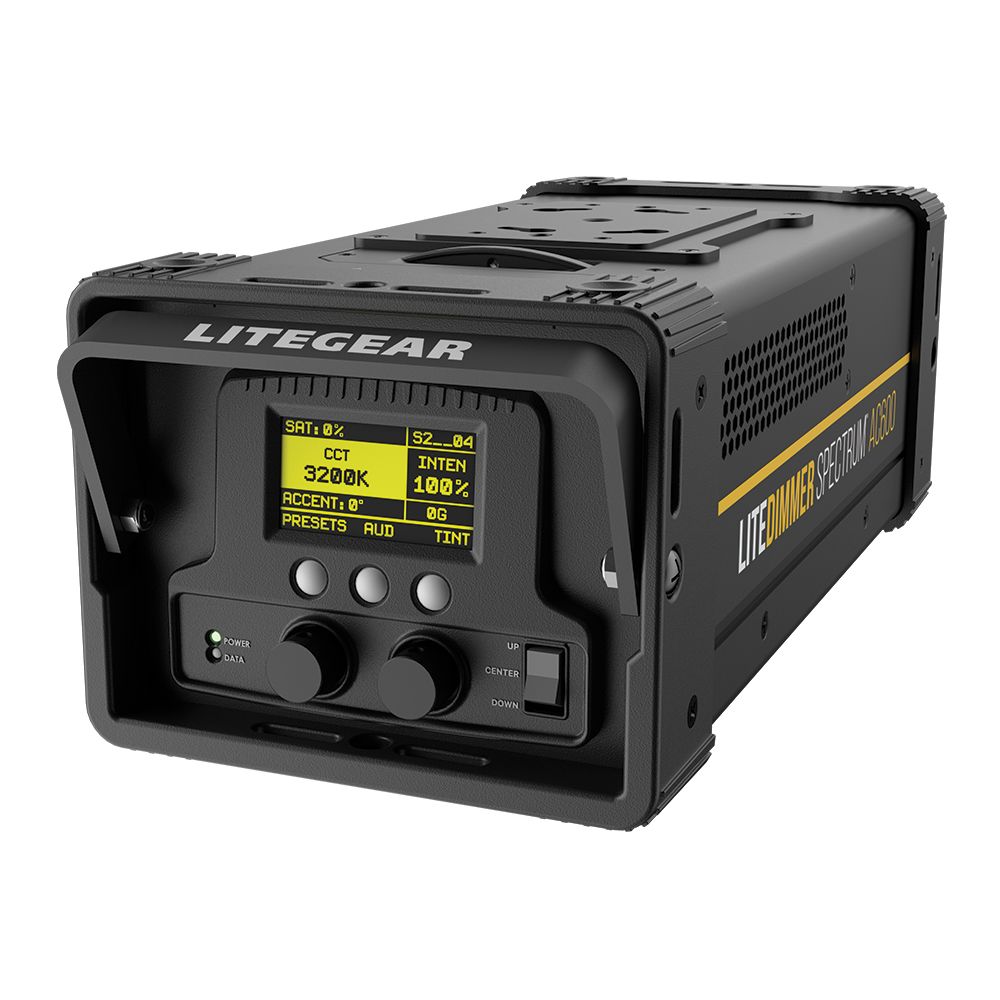

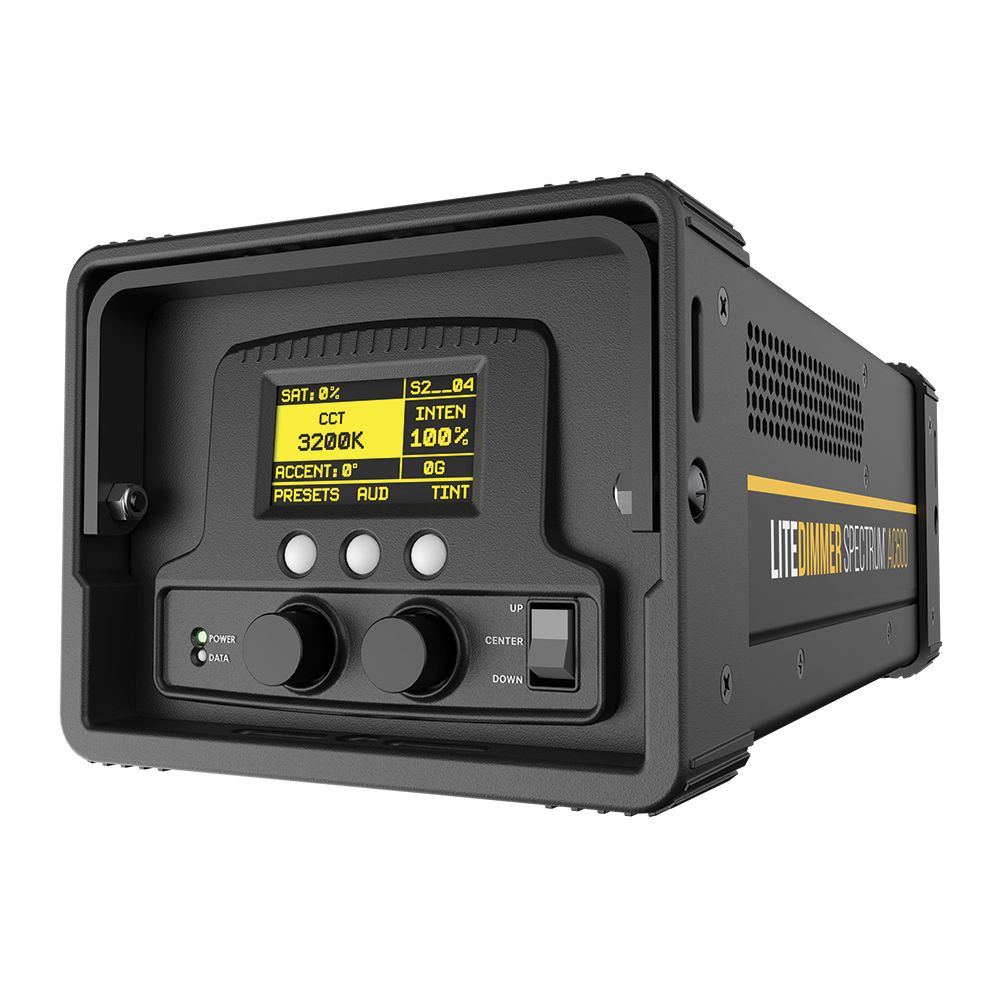

Simple local control interface for fast, intuitive adjustments on set
USB-A port for effortless, future-proof firmware and feature updates

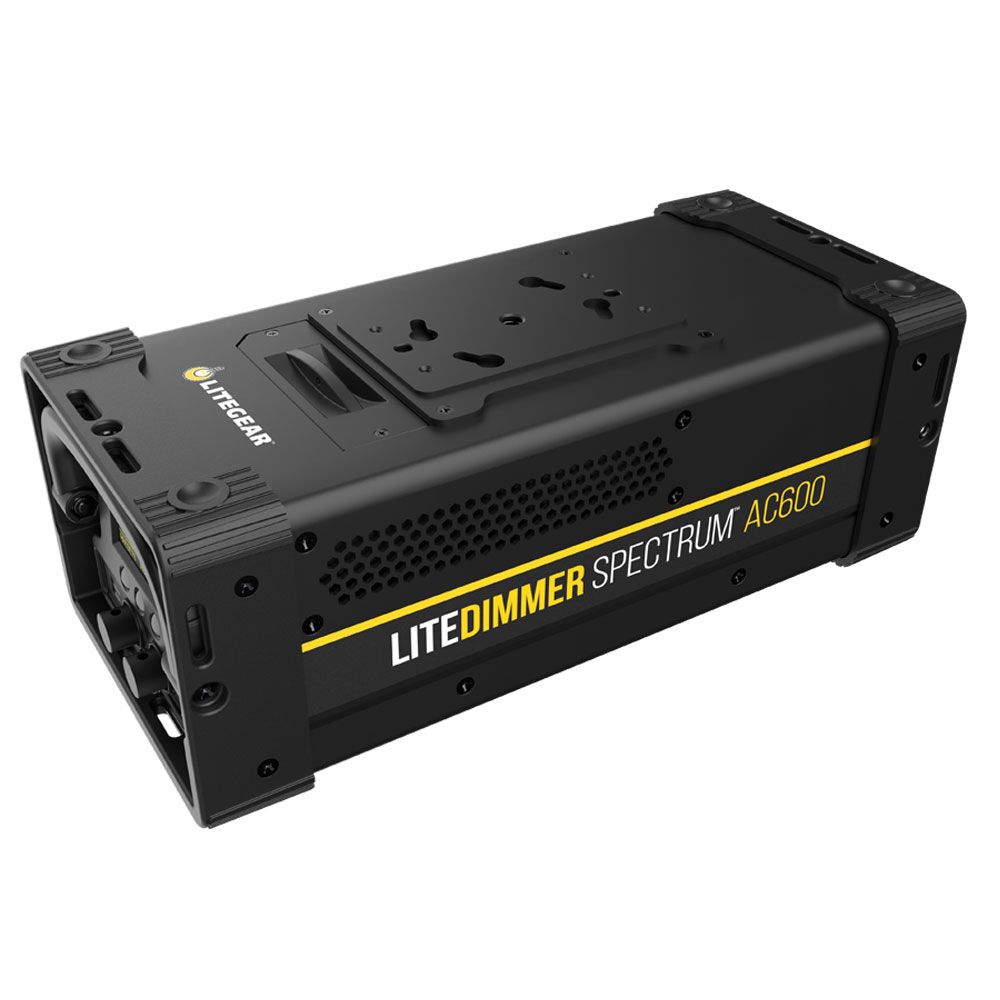

Rugged dual K-Mounts for speedy rigging on stands or truss
Professional DMX, RDM, and CRMX support for universal compatibility
Reliable, safe operation with ETL, CE, UKCA, and FCC certifications

Technical Specifications

Product Name	LiteDimmer Spectrum AC600
Item Number	LD-SPECTRUM-AC600
Model	298-1
Input Voltage	100-240 VAC, 50/60 Hz
Input Current	4.5A to 9A
Output Voltage	48VDC
Output Current	14.7A to 21A
Power	750W Maximum

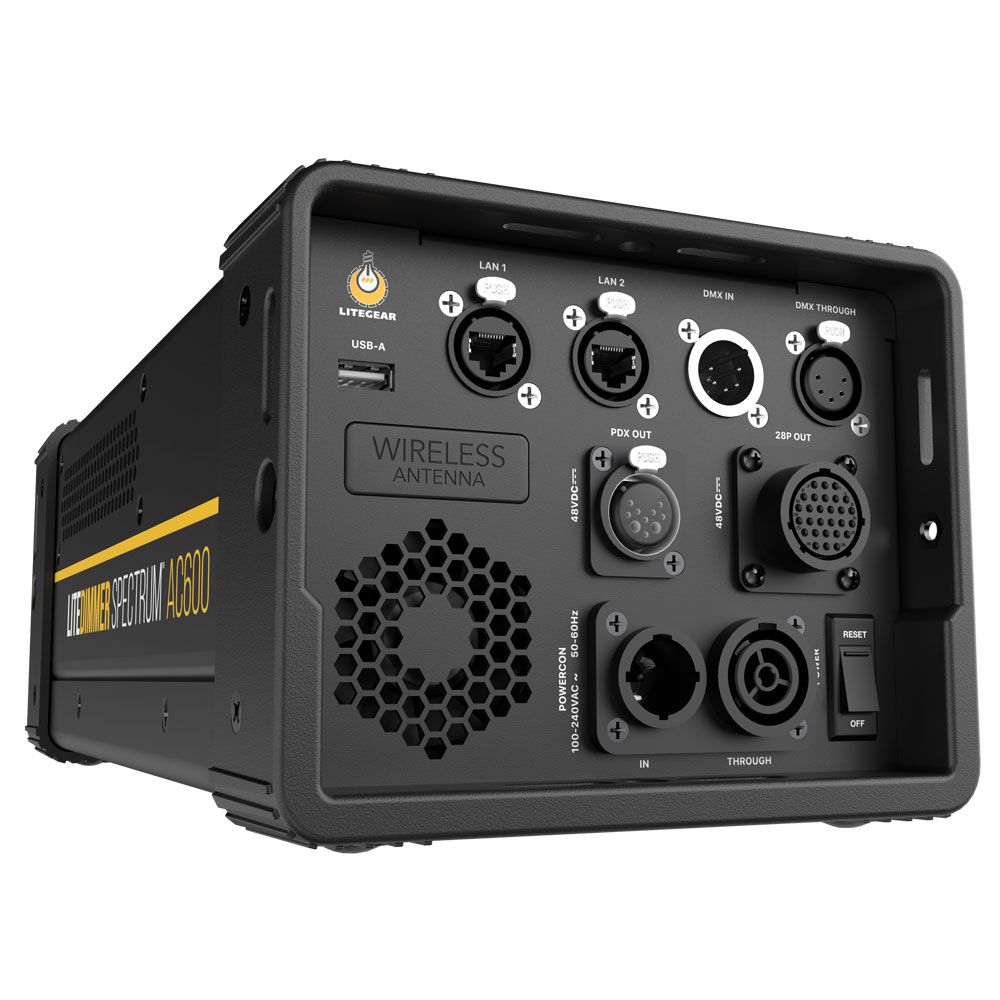

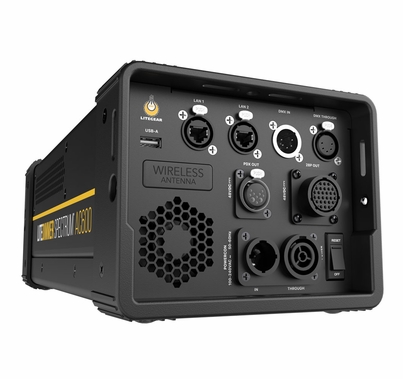

Data Connectors	USB-A, 2x EtherCon, 5-Pin DMX In/Thru, Internal CRMX, 28-Pin Connector
Mains Power	powerCON TRUE1 TOP In/Thru (Edison/Schuko/Bare Ends cables available)
Control	DMX, RDM, CRMX (Art-Net, sACN)
IP Rating	IP20
Weight	12.6 lbs (5.7 kg)
Dimensions	15.7 x 7.2 x 5.8 in (388.8 x 182.9 x 147.3 mm)
Max Operating Temp	122ºF (50ºC)
Mounting	2 K-Mounts (truss & stand mounts available)
Certifications	ETL, CE, UKCA, FCC

Why Choose the LiteDimmer Spectrum AC600?

Powerful, scalable solution for advanced pixel mapping and overhead lighting
Future-ready with upgradable firmware and a proven, intuitive interface
Engineered for field reliability and seamless integration with LiteGear’s LED ecosystem
