PRODUCT DESCRIPTION

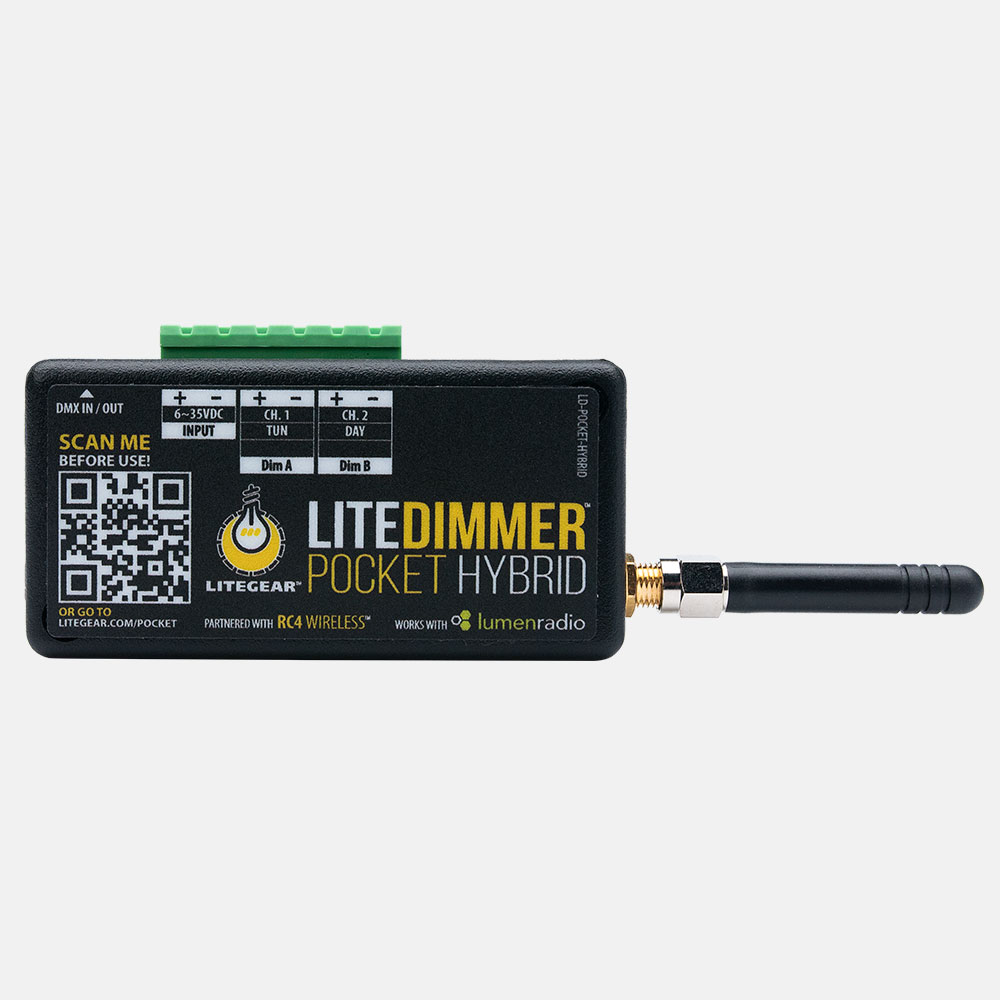

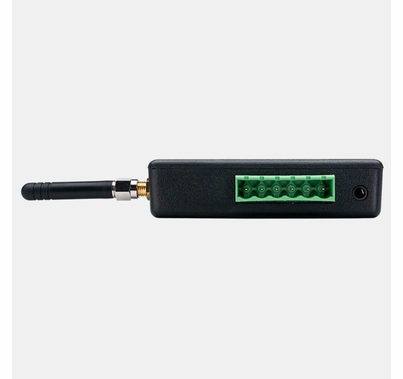

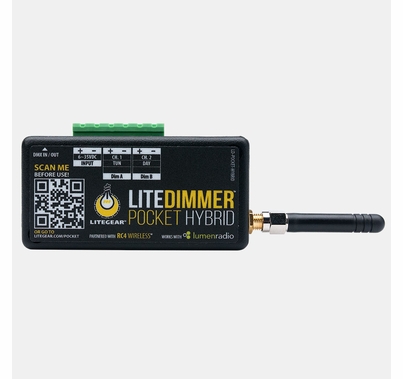

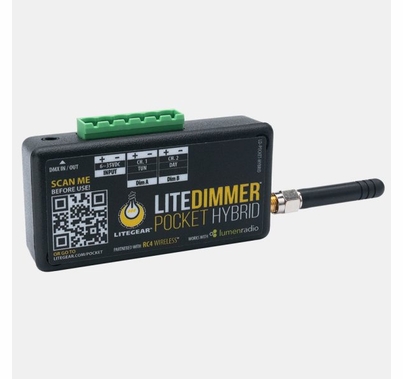

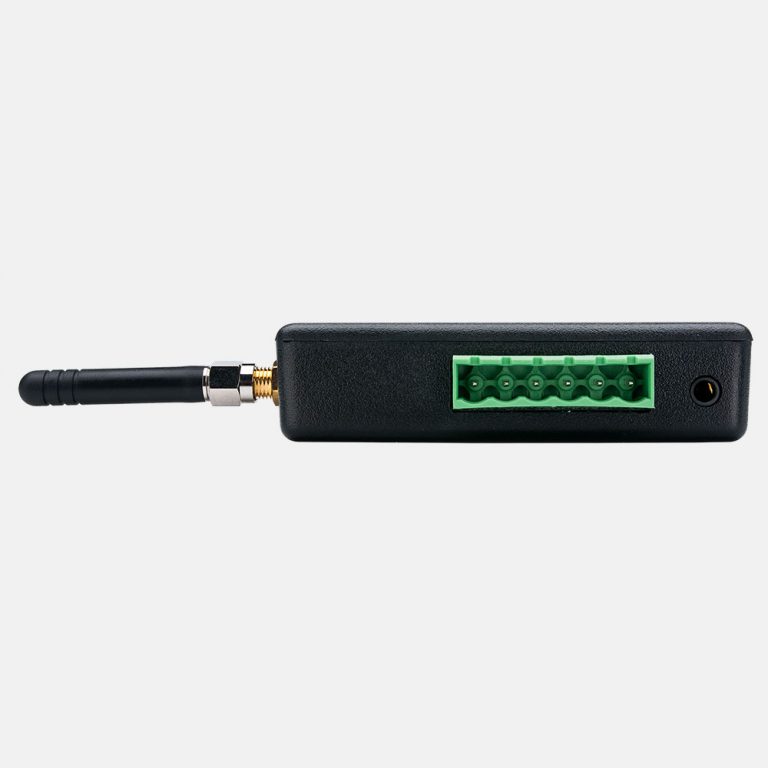

LiteGear LiteDimmer Pocket, Hybrid, 2X8

The LiteDimmer Pocket Series is an ultra-compact LED controller system. The Pocket Chroma and Hybrid dimmers incorporate advanced RF receivers along with dimming circuits in a compact housing, making them ideal for use with costumes or props, such as lanterns. LiteGear worked with RC4 to develop the product using Lumen Radio technology, giving the dimmer not only rock-solid performance but compatibility with many third-party wireless transmitters and receivers.

Features:

• 2×8 Wireless Receiver
• LiteGear Actuator Tool, 2-Pack
• LiteGear Screwdriver, Slotted
• Cable Assy, TRS (headphone) to RJ45, TWO foot
• Phoenix Connector, 2-pin, Female
• Phoenix Connector, 4-pin, Female
• LiteDimmer Pocket, Hybrid (Bicolor) LiteRibbon Adapter
• User Guide
• Zippered Bag

Technical Specs

• SIZE: 0.80” x 1.77” x 3.15” (20.3mm x 45.0mm x 80.0mm)
• WEIGHT: 1.9 oz, 54g
• SUITABLE AWG SIZES FOR I/O: 24-12 AWG
• INPUT: 6-35 VDC
• RATING: 16A Max Total – 8A Max per channel
• OUTPUT: Constant Voltage, PWM
• ANTENNA: RP-SMA
