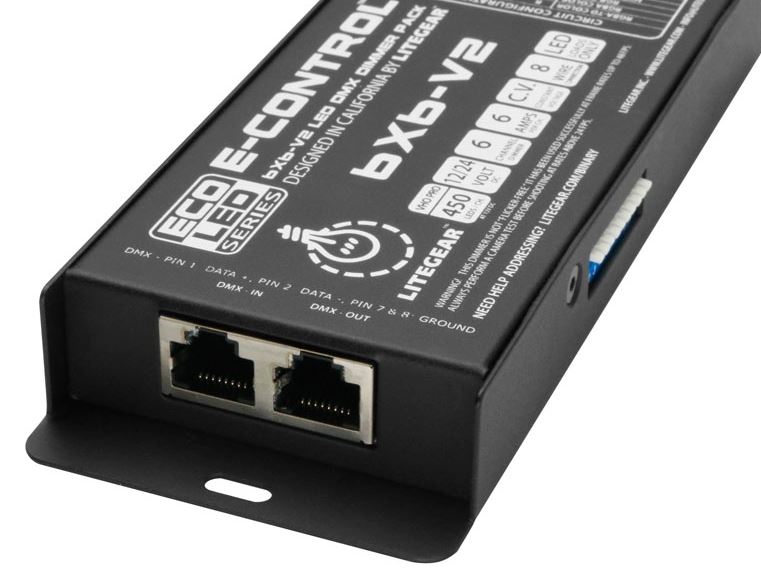

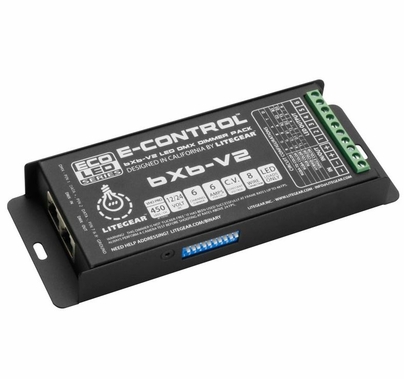

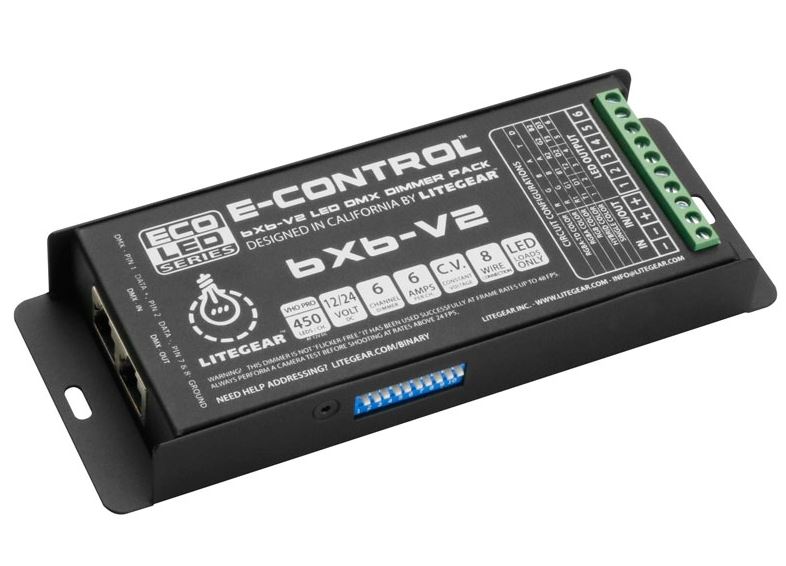

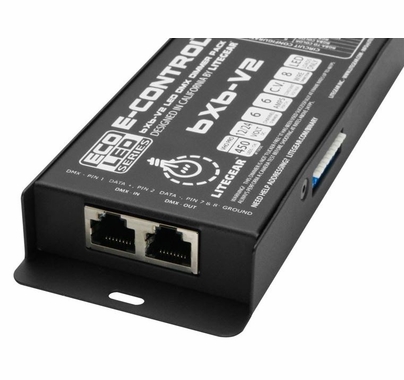

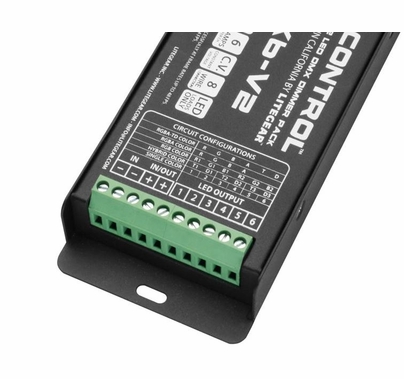

LiteGear DMX Dimmer Pack E-Control 6x6 V2

PRODUCT DESCRIPTION

LiteGear DMX Dimmer Pack E-Control 6x6 V2

E-Control 6×6-V2 is one of LiteGear’s economical DMX decoders. Its lightweight and low profile lend itself to being built into nearly any rig in which DMX control is required. The 6×6-V2 is adaptable to a number of situations, allowing for the control of multicolor red-green-blue-amber-tungsten-daylite (RGBATD) LED rigs in addition to one circuit of RGBA/W LiteRibbon®, two circuits of RGB LiteRibbon, three circuits of Hybrid LiteRibbon, and six circuits of Single LiteRibbon.

Specs

• SIZE: 6.6875 in. x 2.562 in. x .875 in.
• WEIGHT: 0.6 lb, 9.6 oz, 272 g
• INPUT: 12V/24V DC; Input voltage must match load voltage requirements!
• OUTPUT: PWM
• RATING: 6A max. per channel x 6 channels; 36A max. total.
• CONNECTOR: Bare-end; 26AWG to 12AWG max.

What's Included

• LED DMX Dimmer Pack, E-Control, 6X6-V2
• User Guide
