PRODUCT DESCRIPTION

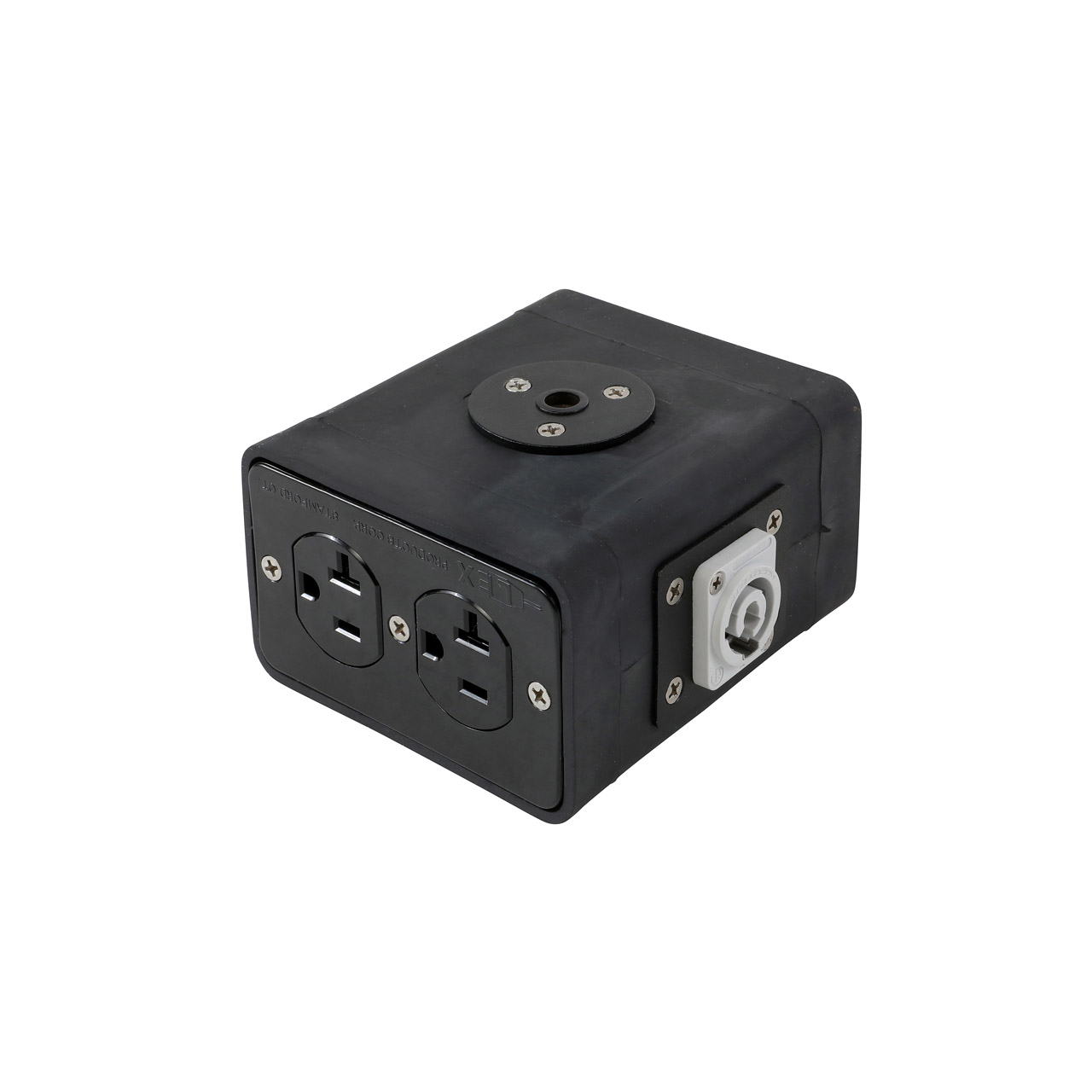

Lex 20 Amp Quad Box with PowerCon to Duplex Receptacles
20A 125 VAC, (1) powerCONŽ A (Blue) Inlet to (2) NEMA 5-20 (Edison) Straight Blade Duplex Receptacles (Outlets), Feed Thru, Quad Box.
Features & Benefits
- This exceptionally versatile quad box is used for placing convenient duplex receptacles exactly where they are needed
- The quad box enables the user to create receptacle stringers using powerCON extensions of various lengths
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, corrosion
- Compact and convenient way to place 20 Amp duplex receptacles where they are needed
- Feed thru option allows multiple boxes to be placed along the same feed
Markets Served
Convention Centers, Live Events, Concert Touring, Industrial Maintenance and Repair
Technical Information
- Rating: 20 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz
- Environmental Rating: NEMA Type 1 (Indoor Use)
- Input: (1) powerCONŽ NAC3MPA-1 (Blue), 20 Amp, 2-pole, 3-wire, 250 VAC, locking inlet, panel mount
- Feed Thru: Yes
- Main Breaker: None
- Output: (2) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount
- Overcurrent Protection: None
- Enclosure Type: Quad Box
- Dimensions: 4.70"L x 2.50"W x 4.20"H
- Weight: 1.5 lbs
