Juice Goose JG 11-15A Rack Mount Power Distribution, 11 Outlets, 15A, 15 ft Cord

PRODUCT DESCRIPTION

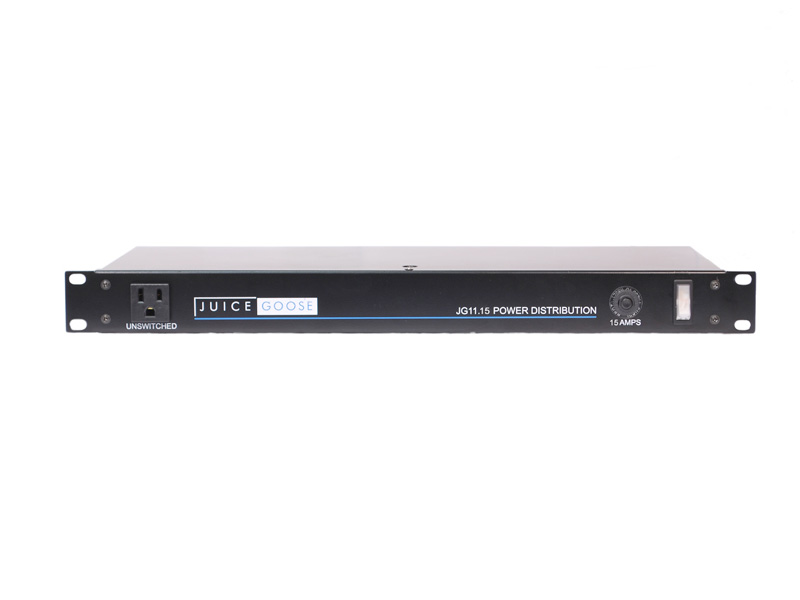

The Juice Goose JG 11-15A is a 1U, 19-inch rack-mount power distribution unit with 11 NEMA 5-15 outlets, a front-mounted 15 amp circuit breaker and a 15-foot power cord. One outlet on the front and one on the back stay on all the time, so key gear keeps power even when the rack is switched off. It plugs into any standard 15 amp wall outlet and includes basic MOV surge protection and AC line filtering in a 7-inch-deep black steel chassis.

More Outlets, More Reach, Plugs In Anywhere

The JG 11-15A gives you the most outlets in the 15 amp JG Series, plus a 15-foot cord that reaches the wall from the back of a cart, a stage riser or a deep equipment rack. Because it uses a standard NEMA 5-15P plug, it works with any ordinary outlet on location, in a studio or in a rental house. That makes it more versatile than the 20 amp JG 11-20A, which needs a 20 amp receptacle. The circuit breaker is on the front panel, so you can reset it without pulling the rack.

Inside, a fast-acting metal oxide varistor clamps voltage spikes between line and neutral, and a filtering capacitor reduces AC line noise. That's a solid baseline when you're running off location power or a generator.

Key Features

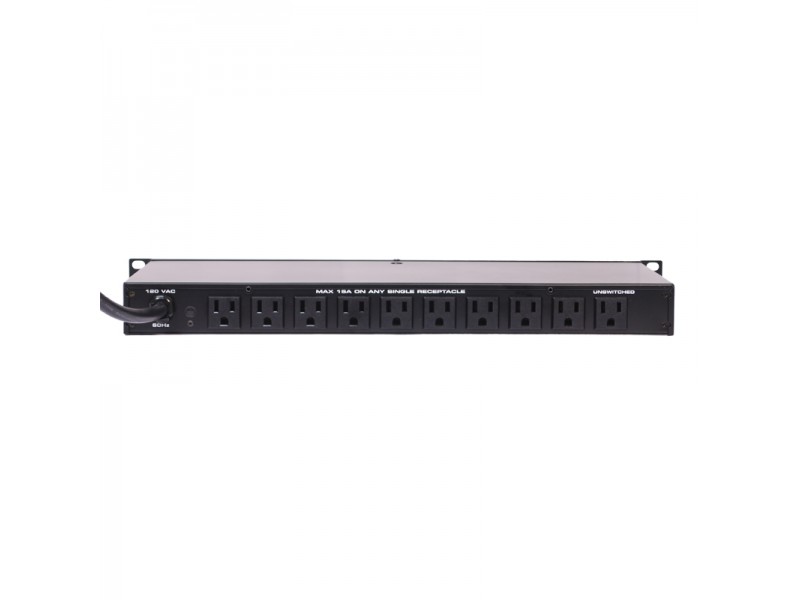

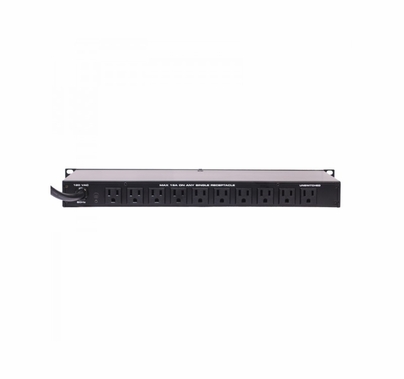

• 11 NEMA 5-15R outlets: one on the front, ten on the back
• Two always-on outlets: one front and one rear outlet stay live when the rack is switched off
• Rotated rear outlets: turned 90° so power bricks and wall warts don't block adjacent outlets
• Front-mounted 15 amp circuit breaker: easy to reach and reset
• 15-foot power cord: 16/3 SJT with a standard NEMA 5-15P plug for hard-to-reach outlets
• Plugs into any standard outlet: no 20 amp receptacle needed
• Basic surge and noise protection from an MOV and line filtering capacitor
• 7-inch-deep black steel chassis, 1U, standard 19-inch rack mount
• Three-year warranty from Juice Goose

What Can You Run on a JG 11-15A?

The JG 11-15A is rated for 12 amps continuous, roughly 1,440 watts at 120 volts shared across all 11 outlets. The extra outlets help when you have lots of low-draw devices like monitors, wireless video receivers, routers, DMX nodes, chargers and small LED fixtures. A typical video village cart with two monitors, two wireless receivers, a router, a laptop charger and two 60W LED panels draws about 380 watts. Larger fixtures such as 600W-plus LED heads or HMI ballasts should run on their own circuit or a dedicated distro. If you need more total power, step up to the 20 amp JG 11-20A.

Ideal For

• DIT and media management carts
• Video village and client monitoring stations
• Studio lighting control racks (DMX nodes, wireless DMX, network switches)
• Broadcast, streaming and live production racks
• Deep racks and carts where the wall outlet is out of reach

Juice Goose JG 11-15A Specifications

Frequently Asked Questions

How many outlets does the Juice Goose JG 11-15A have?

Eleven NEMA 5-15R outlets: one on the front panel and ten on the back. One front outlet and one rear outlet are unswitched, so they stay on even when the rack is switched off.

How much power can the JG 11-15A handle?

It has a 12 amp continuous current rating and a 15 amp circuit breaker. On a 120 volt circuit, that's about 1,440 watts across all outlets combined.

How long is the power cord?

The JG 11-15A has a 15-foot 16/3 SJT power cord with a standard NEMA 5-15P plug, long enough to reach a wall outlet from the back of a cart or deep rack.

What is the difference between the JG 11-15A and the JG 11-20A?

Both have 11 outlets, a front breaker and a 15-foot cord. The JG 11-15A is rated 12 amps continuous with a 15 amp breaker and a standard plug that works in any outlet. The JG 11-20A is rated 18 amps continuous with a 20 amp breaker, but its NEMA 5-20P plug requires a 20 amp receptacle.

What is the difference between the JG 11-15A and the JG 9?

Both are rated for 12 amps. The JG 11-15A adds two more outlets, moves the circuit breaker to the front panel and uses a 15-foot cord instead of 6 feet.

Can I plug LED film lights into the JG 11-15A?

Yes, as long as the total draw stays under 12 amps (about 1,440 watts). It suits small LED panels, tube lights, practicals, monitors and wireless video receivers. Larger fixtures such as 600W-plus LED heads or HMI ballasts should go on their own circuit.

Does the JG 11-15A have surge protection?

It has basic protection: a fast-acting metal oxide varistor (MOV) that clamps voltage spikes, plus a filtering capacitor that reduces AC line noise.

What is the warranty?

The JG 11-15A carries a three-year warranty from Juice Goose.
