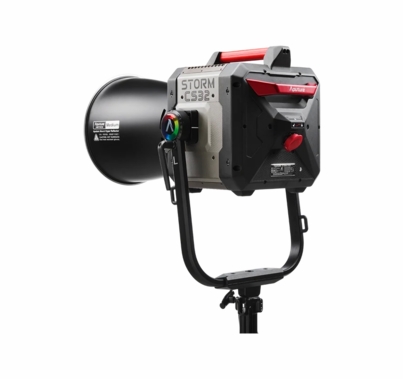

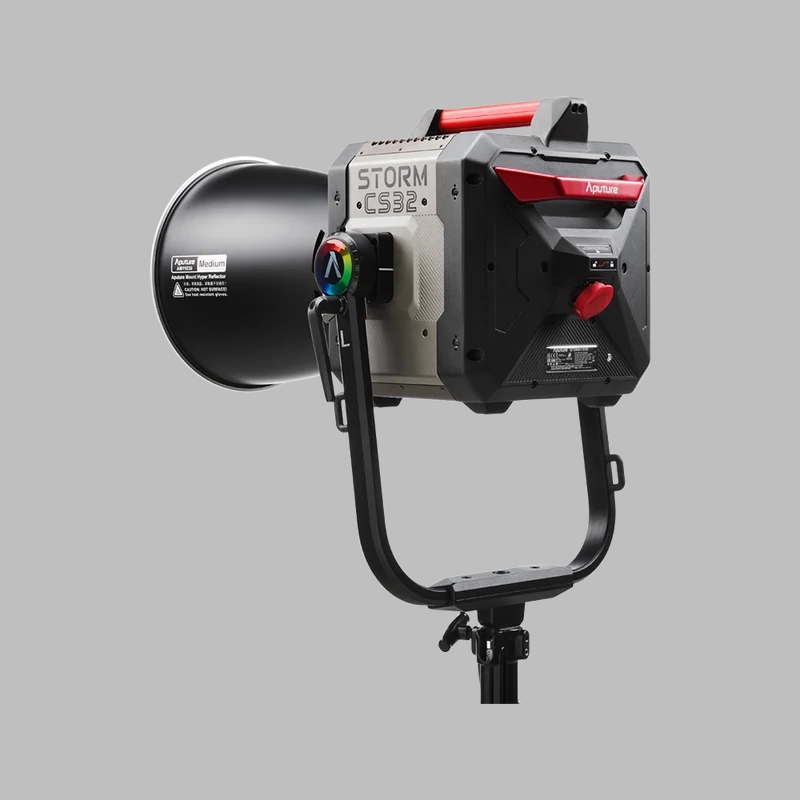

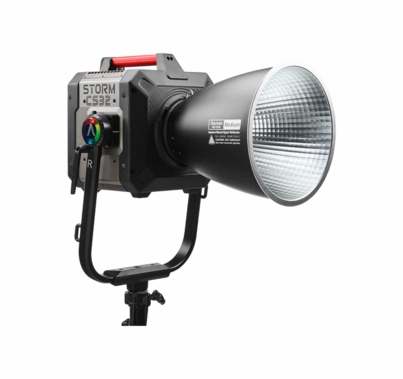

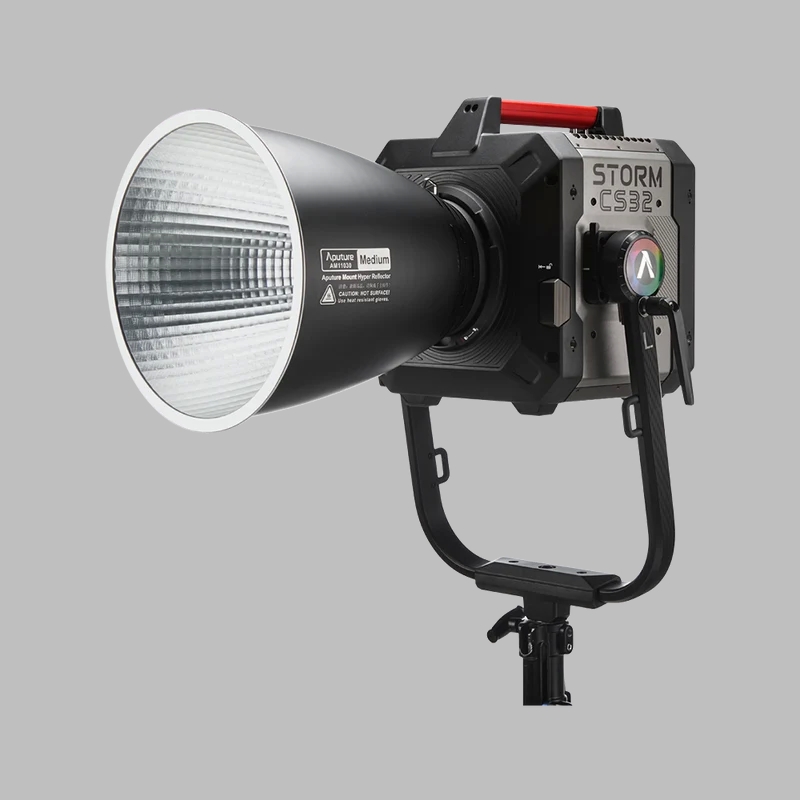

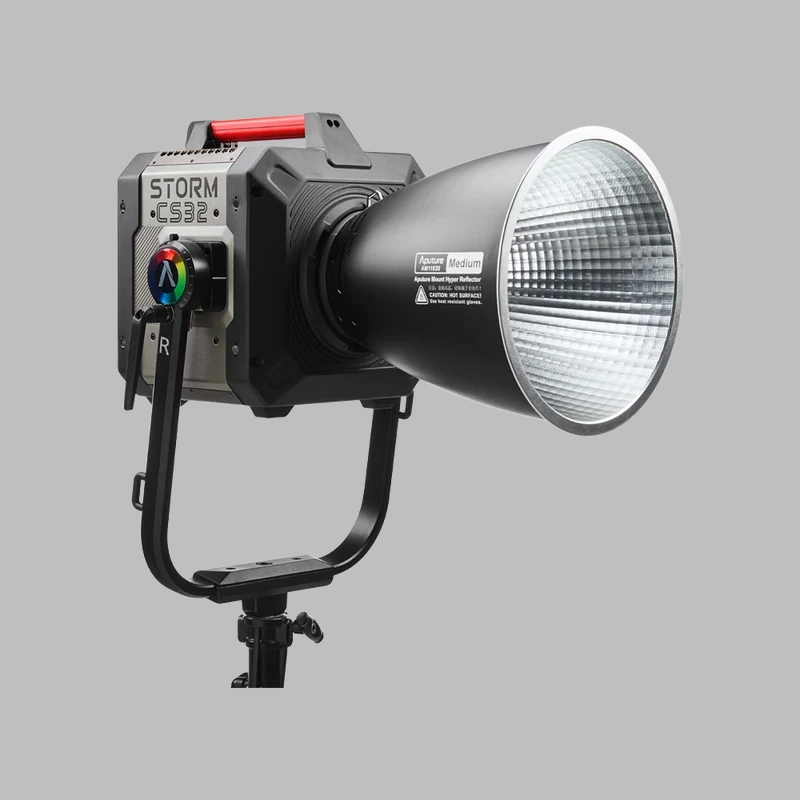

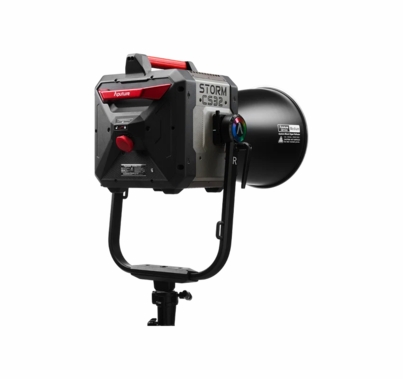

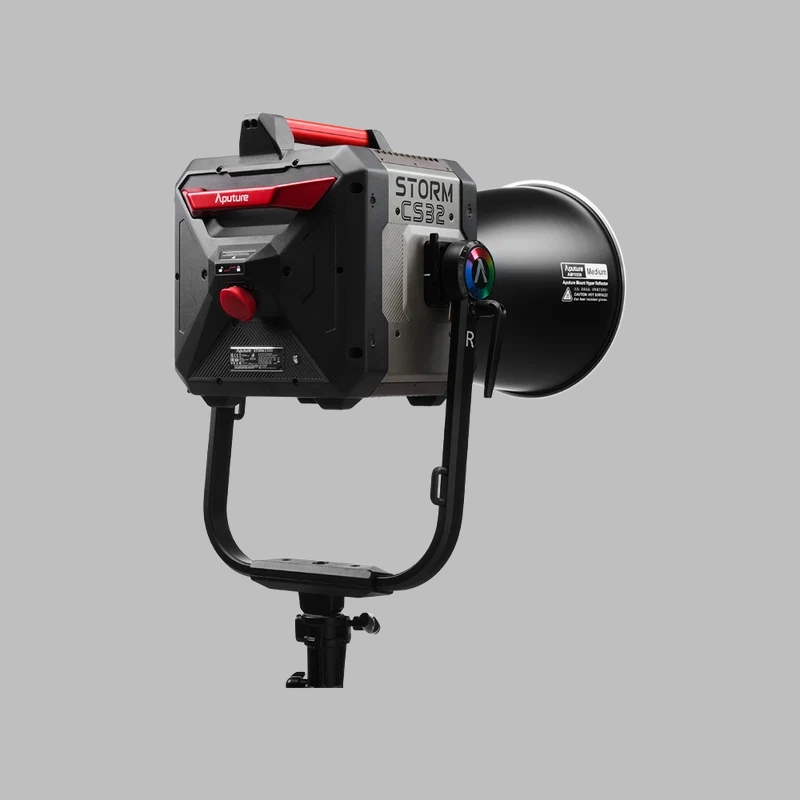

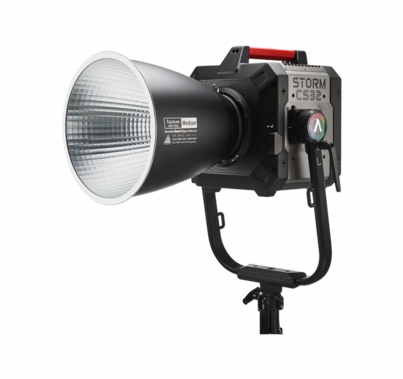

Aputure STORM CS32 3200W Full-Color LED Point Source

A 4K HMI-Class LED with Full Color Control

The Aputure STORM CS32 is a 3,200W tunable-color LED point source light that delivers white-light output comparable to a 4K HMI or 10K tungsten fresnel, while also producing saturated color across more than 90% of the Rec. 2020 gamut. It is available on its own or with a fitted STORM CS32 flight case for protected transport between jobs.

The CS32 is built on Aputure's BLAIR-CG With Extended Red light engine, adjusts from 1,800K to 20,000K with full plus/minus green correction, carries an IP65 weather rating, and runs from standard household power in both 110V and 220V regions. The lamp head is compact enough for one person to handle and rig, and it uses the Aputure Mount for modifiers such as the Motorized CF16 Fresnel.

Why choose the STORM CS32

• HMI-class brightness without HMI hassles: At its 3,200W maximum draw, the CS32 matches the white output of a 4K HMI, with instant color and CCT changes and no bulbs or ballasts to warm up.
• Brightest tunable-color point source on household power: In 220V countries it runs at full power from a common 15A circuit. In North America it reaches up to 80% output from a 110V/20A outlet.
• Accurate white light: CRI 97, TLCI 98, SSI 93 (tungsten) and SSI 91 (D56), with TM-30 Rf 96 for true-to-life skin tones and product color.
• Rich, saturated color: Create deep sunsets, sodium-vapor street looks and subtle tints without gels, using HSIC+, RGB or xy controls.
• Indigo and Extended Red emitters: Indigo brings out the natural fluorescence of fabrics and materials, and Extended Red enriches skin tones while keeping output high.
• Weather-ready: IP65 rated and operates from -4°F to 113°F (-20°C to 45°C).
• Compact and array-friendly: The cube-shaped head fits on truck shelving and head carts fully assembled, and several units can be rigged tightly together.
• Long head-cable runs: The included 7.5m head cable extends to 45m with additional cables, so the head can go up on a lift while the control box stays on the ground.

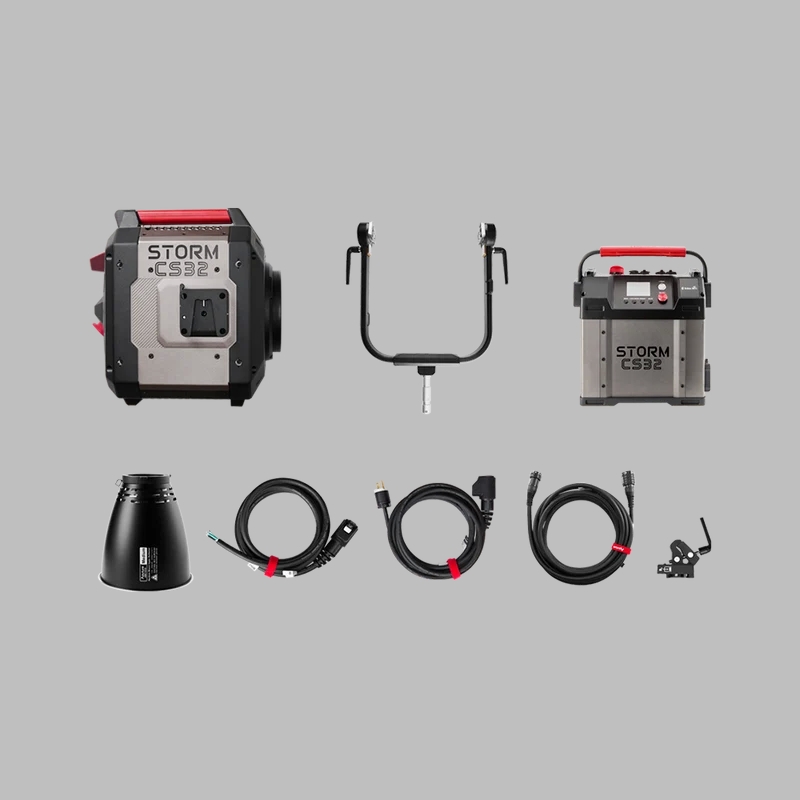

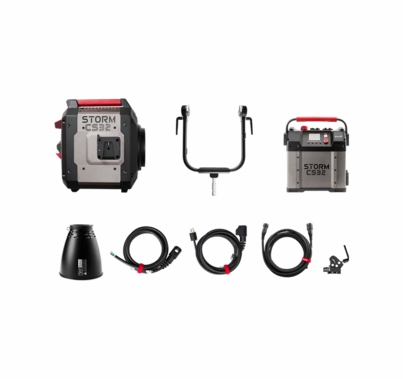

What's in the box

• 1 × STORM CS32 Lamp Head
• 1 × STORM CS32 Removable Yoke
• 1 × STORM Series Aputure Mount Protection Cover
• 1 × STORM CS32 Control Box
• 1 × AM11030 Medium Reflector (30°)
• 1 × PLG28 4-Pin to Bare Leads AC Power Cable (3m)
• 1 × PLG28 4-Pin to NEMA 5-20P AC Power Cable (6m, 20A max)
• 1 × PLK28 10-Pin Male to Female Lamp Head Cable (7.5m)
• 1 × Aputure Ultra Clamp

Power options in North America

The STORM CS32 ships with two power cables for North American users. A bare-lead cable connects to professional power distribution for full 3,200W operation at 110V or 220V. A household cable with a NEMA 5-20P (Edison) plug works on 110V/20A circuits, and the control box automatically detects it and caps output at up to 80% of full brightness to stay within the circuit's limit.

Photometrics (5,600K)

At 3,200K and 3m, output measures 14,800 lux bare and 103,000 lux with the 30° reflector. Full photometrics for every CCT are in the Aputure data sheet linked below.

Specifications

Who is the STORM CS32 for?

The CS32 is built for gaffers, rental houses, and production companies that need HMI-level punch with full color control. It works as a sun source through windows, a large backlight or moonlight, a key through big diffusion frames, or a color effect light for night exteriors and music videos. Because it runs on household power, it is also a practical choice for location shoots in homes and small venues where a generator or tie-in is not available.

Recommended accessories

• Aputure Motorized CF16 Fresnel for a focusable hard beam
• STORM CS32 Skid for low-profile floor placement and cart storage
• STORM CS32 Air Deflector to redirect exhaust air behind the fixture
• PLK28 10-Pin Lamp Head Cable (15m) for longer head-to-control-box runs
• STORM XT52 Reflector Kit for narrow and wide beam options
• Sidus One or Sidus Four for CRMX wireless DMX control

Frequently asked questions

What comes with the Aputure STORM CS32?

The STORM CS32 includes the lamp head, removable yoke, Aputure Mount protection cover, control box, AM11030 30° medium reflector, bare-lead and NEMA 5-20P power cables, a 7.5m lamp head cable, and an Aputure Ultra Clamp.

Should I get the STORM CS32 with or without the flight case?

The flight case option adds $600 and holds the full kit in one fitted case, which suits rental houses and crews that ship or travel with the light. If you store the light on a lighting cart or already have road cases, the version without the flight case costs $6,990.

How bright is the Aputure STORM CS32 compared to an HMI?

At its full 3,200W draw, the STORM CS32 produces white light comparable to a 4K HMI or a 10K tungsten fresnel, with the added ability to change CCT and color instantly.

Can the STORM CS32 run on a household outlet?

Yes. In 220V regions it runs at full power from a standard 15A household circuit. In North America, the included Edison-plug cable runs it on a 110V/20A circuit at up to 80% brightness, and the bare-lead cable allows full power from professional distribution.

Is the STORM CS32 weatherproof?

The STORM CS32 is IP65 rated and operates between -4°F and 113°F (-20°C and 45°C).

What modifiers fit the STORM CS32?

The CS32 uses the Aputure Mount. It accepts the Motorized CF16 Fresnel, the included 30° CS32 reflector, and the STORM XT52 20°, 25°, 35° and 50° reflectors.

How far can the lamp head be from the control box?

The included head cable is 7.5m, and additional head cables extend the distance up to 45m.

Does the STORM CS32 use liquid cooling?

No. Both the lamp head and control box are air cooled, with fan modes ranging from 24.3 dBA in Silent mode to 52.6 dBA in Max mode, measured at 1m.

How can I control the STORM CS32?

It can be controlled on-board, through the Sidus Link and Sidus Link Pro apps over Bluetooth, or through DMX, RDM, sACN, Art-Net and built-in CRMX wireless DMX.

Downloads

• STORM CS32 User Manual (PDF)
• STORM CS32 Data Sheet (PDF)
• STORM CS32 DMX Specifications (PDF)
• STORM CS32 Help Center and Firmware
