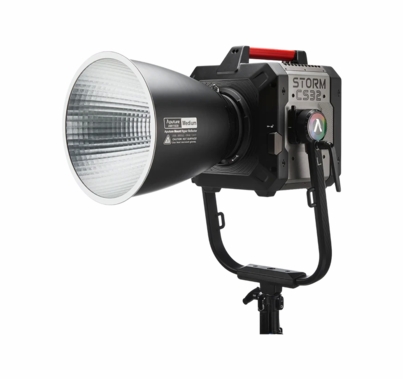

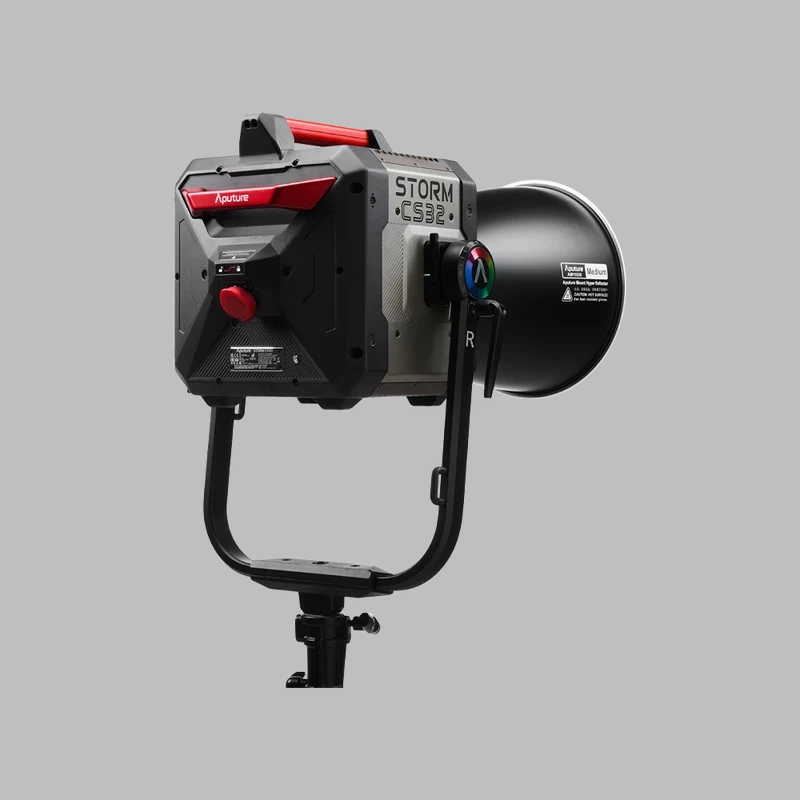

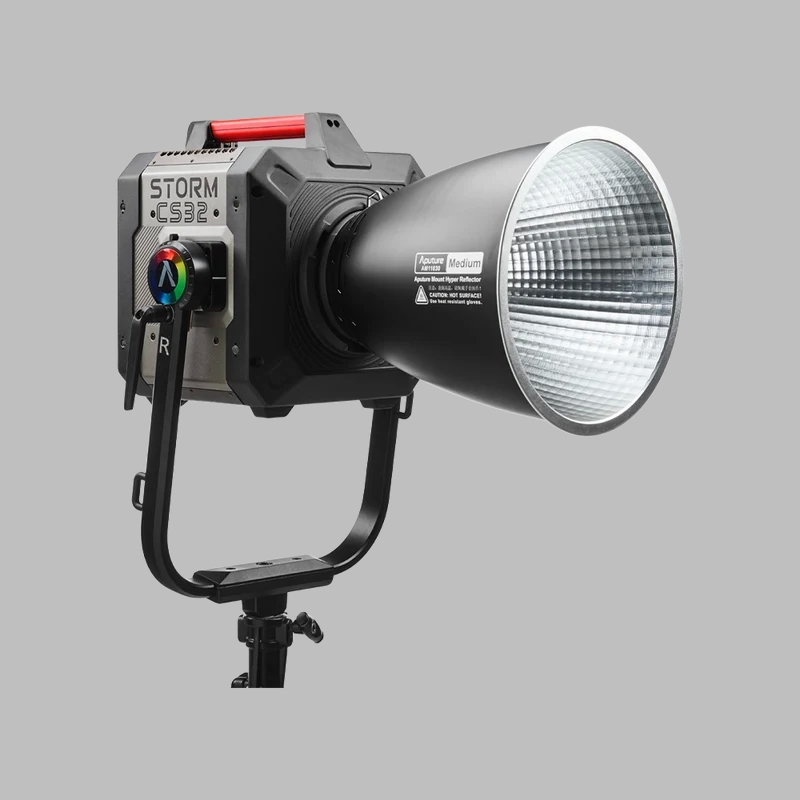

The Aputure STORM CS32 is a 3,200W tunable-color LED point source light that delivers white-light output comparable to a 4K HMI or 10K tungsten fresnel, while also producing saturated color across more than 90% of the Rec. 2020 gamut. This version ships with a flight case for protected transport between jobs.

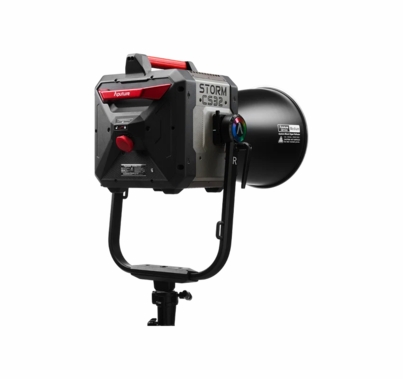

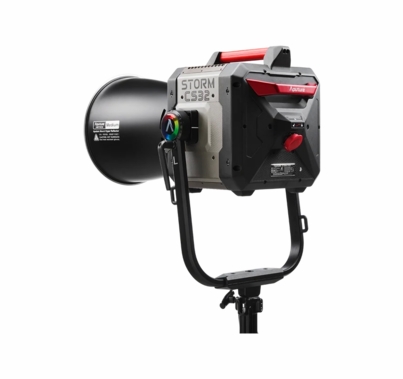

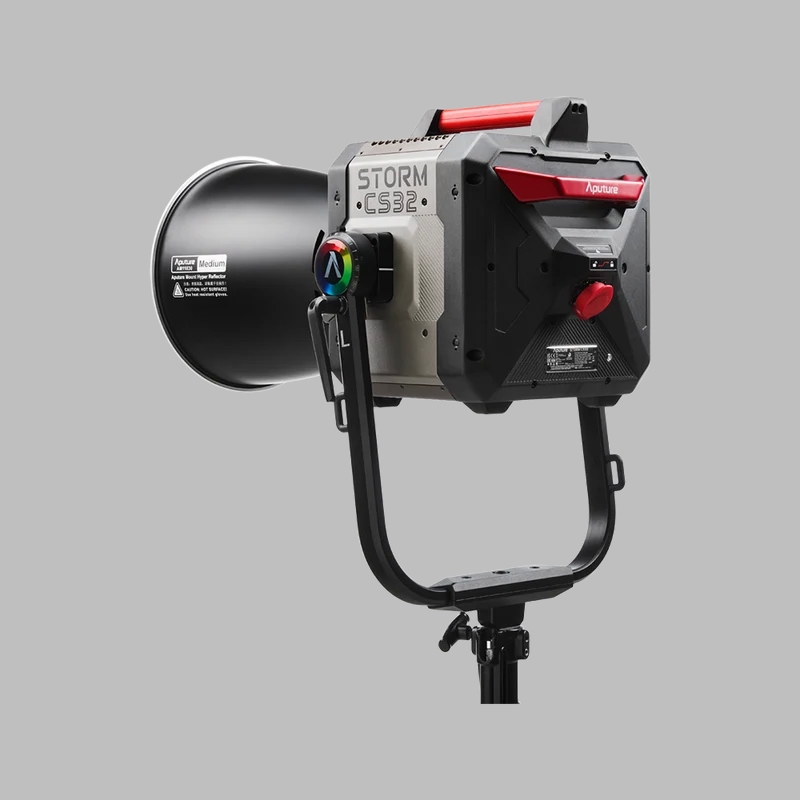

The CS32 is built on Aputure's BLAIR-CG With Extended Red light engine, adjusts from 1,800K to 20,000K with full plus/minus green correction, carries an IP65 weather rating, and runs from standard household power in both 110V and 220V regions. The lamp head is compact enough for one person to handle and rig, and it uses the Aputure Mount for modifiers such as the Motorized CF16 Fresnel.
The STORM CS32 ships with two power cables for North American users. A bare-lead cable connects to professional power distribution for full 3,200W operation at 110V or 220V. A household cable with a NEMA 5-20P (Edison) plug works on 110V/20A circuits, and the control box automatically detects it and caps output at up to 80% of full brightness to stay within the circuit's limit.
| Distance | Bare (78°) | With 30° Reflector |
|---|---|---|
| 3m / 9.8ft | 15,000 lux / 1,394 fc | 106,000 lux / 9,848 fc |
| 5m / 16.4ft | 5,850 lux / 543 fc | 35,500 lux / 3,298 fc |
At 3,200K and 3m, output measures 14,800 lux bare and 103,000 lux with the 30° reflector. Full photometrics for every CCT are in the Aputure data sheet linked below.
| Brand / Model | Aputure STORM CS32 (with Flight Case) |
|---|---|
| Light engine | BLAIR-CG With Extended Red (Blue, Lime, Amber, Indigo, Red, Cyan, Green) |
| CCT range | 1,800K to 20,000K, full ASC MITC +/- green |
| Color gamut | Over 90% of Rec. 2020 |
| CRI / TLCI | 97 / 98 |
| SSI (Tungsten / D56) | 93 / 91 |
| TM-30 Rf / Rg | 96 / 100 |
| Max power consumption | 3,200W (lamp head 3,000W) |
| Input voltage | 100-240V AC, 50/60Hz |
| Max current | 16A at 240V, 32A at 100V |
| Beam angle | 78° native, 30° with included reflector |
| Compatible reflectors | STORM XT52 20°, 25°, 35°, 50° and CS32 30° |
| Modifier mount | Aputure Mount |
| Rigging | 1-1/8" (28mm) junior pin |
| Control | On-board, Sidus Link and Sidus Link Pro apps, DMX, RDM, sACN, Art-Net, CRMX |
| Wireless range | Bluetooth 100m, CRMX 100m |
| Firmware updates | USB-A, Sidus Link, Sidus Link Pro |
| IP rating | IP65 |
| Operating temperature | -4°F to 113°F (-20°C to 45°C) |
| Cooling | Air cooled (lamp head and control box) |
| Fan noise at 1m | 24.3 dBA (Silent) to 52.6 dBA (Max) |
| Head cable | 7.5m included, extendable to 45m |
| Lamp head weight | 43.65 lb / 19.8 kg with yoke; 37.04 lb / 16.8 kg without |
| Control box weight | 23.81 lb / 10.8 kg |
| Lamp head dimensions (with yoke) | 20.8 x 30.4 x 14.1 in (52.9 x 77.2 x 35.8 cm) |
| Control box dimensions | 13.6 x 6.3 x 14.8 in (34.5 x 16.0 x 37.6 cm) |
| Flight case dimensions | 33.3 x 25.6 x 26.2 in (84.6 x 65.0 x 66.5 cm) |
| Fully loaded flight case | 165.35 lb / 75 kg |
The CS32 is built for gaffers, rental houses, and production companies that need HMI-level punch with full color control. It works as a sun source through windows, a large backlight or moonlight, a key through big diffusion frames, or a color effect light for night exteriors and music videos. Because it runs on household power, it is also a practical choice for location shoots in homes and small venues where a generator or tie-in is not available.

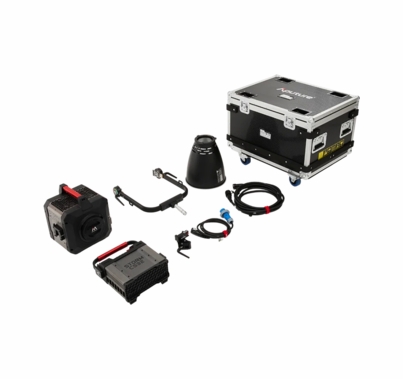

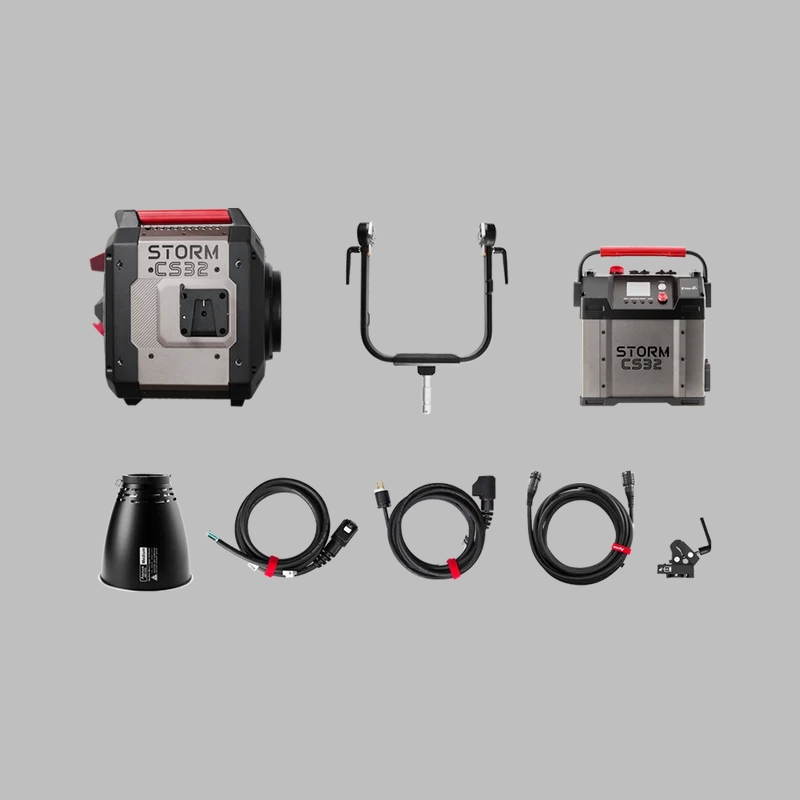

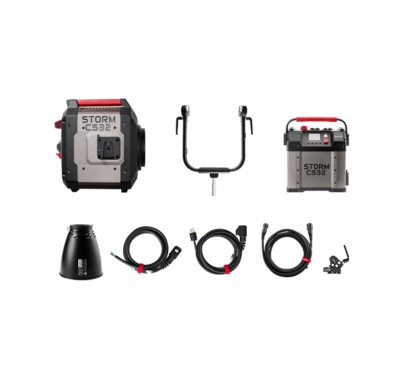

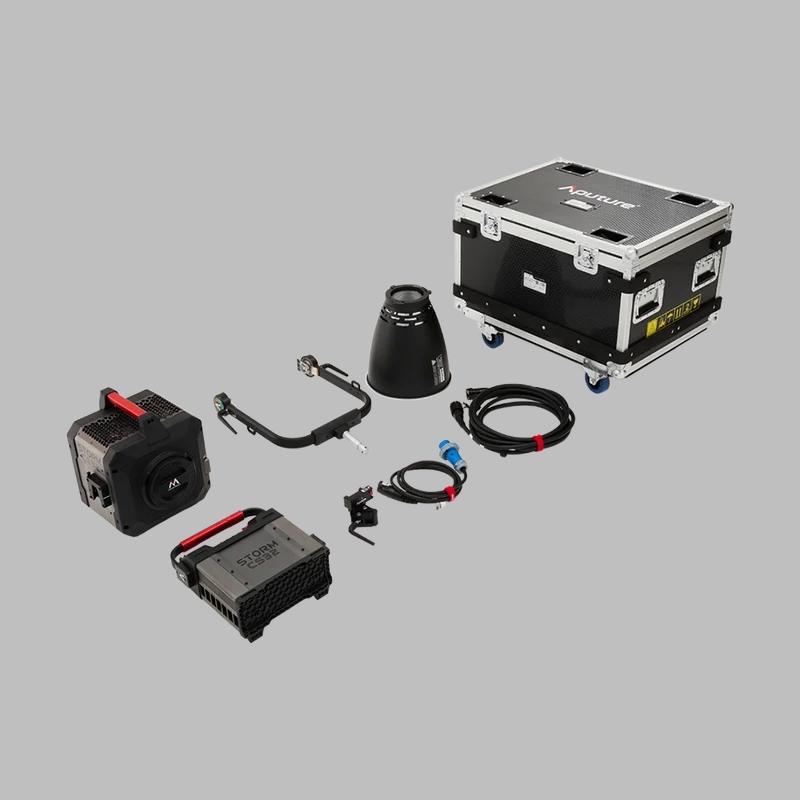

The kit includes the lamp head, removable yoke, Aputure Mount protection cover, control box, AM11030 30° medium reflector, bare-lead and NEMA 5-20P power cables, a 7.5m lamp head cable, an Aputure Ultra Clamp, and the STORM CS32 flight case.
At its full 3,200W draw, the STORM CS32 produces white light comparable to a 4K HMI or a 10K tungsten fresnel, with the added ability to change CCT and color instantly.
Yes. In 220V regions it runs at full power from a standard 15A household circuit. In North America, the included Edison-plug cable runs it on a 110V/20A circuit at up to 80% brightness, and the bare-lead cable allows full power from professional distribution.
The STORM CS32 is IP65 rated and operates between -4°F and 113°F (-20°C and 45°C).

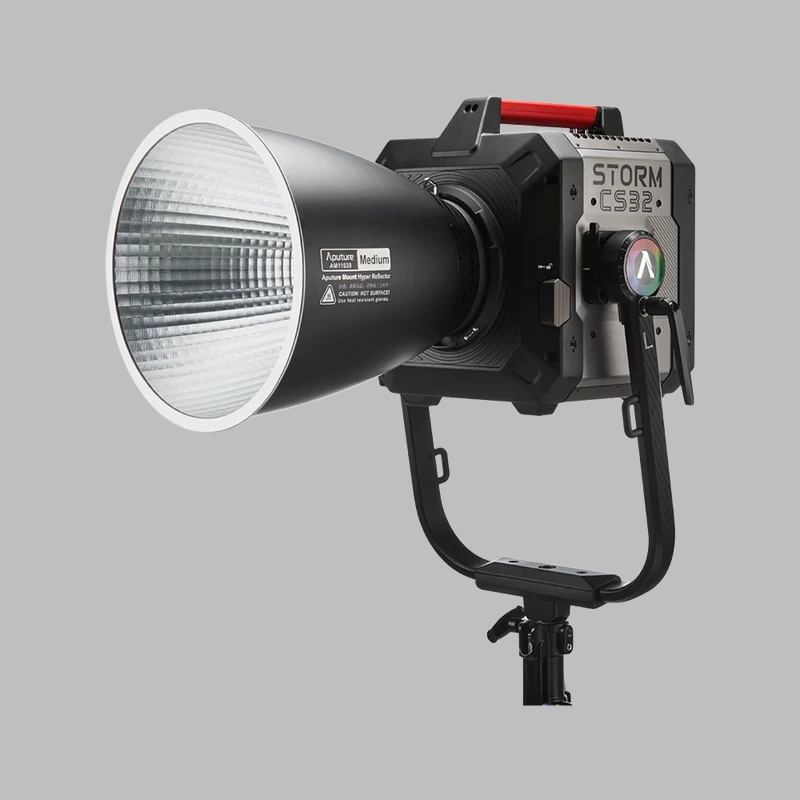

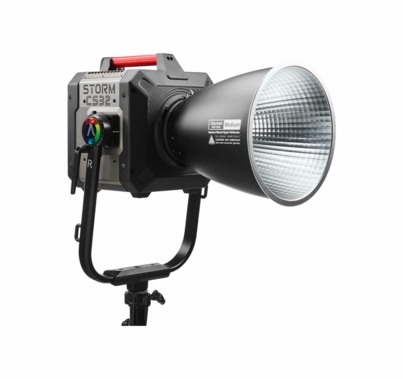

The CS32 uses the Aputure Mount. It accepts the Motorized CF16 Fresnel, the included 30° CS32 reflector, and the STORM XT52 20°, 25°, 35° and 50° reflectors.
The included head cable is 7.5m, and additional head cables extend the distance up to 45m.
No. Both the lamp head and control box are air cooled, with fan modes ranging from 24.3 dBA in Silent mode to 52.6 dBA in Max mode, measured at 1m.
It can be controlled on-board, through the Sidus Link and Sidus Link Pro apps over Bluetooth, or through DMX, RDM, sACN, Art-Net and built-in CRMX wireless DMX.
The flight case measures 33.3 x 25.6 x 26.2 in (84.6 x 65.0 x 66.5 cm) and weighs about 165 lb (75 kg) when fully loaded.
