PRODUCT DESCRIPTION

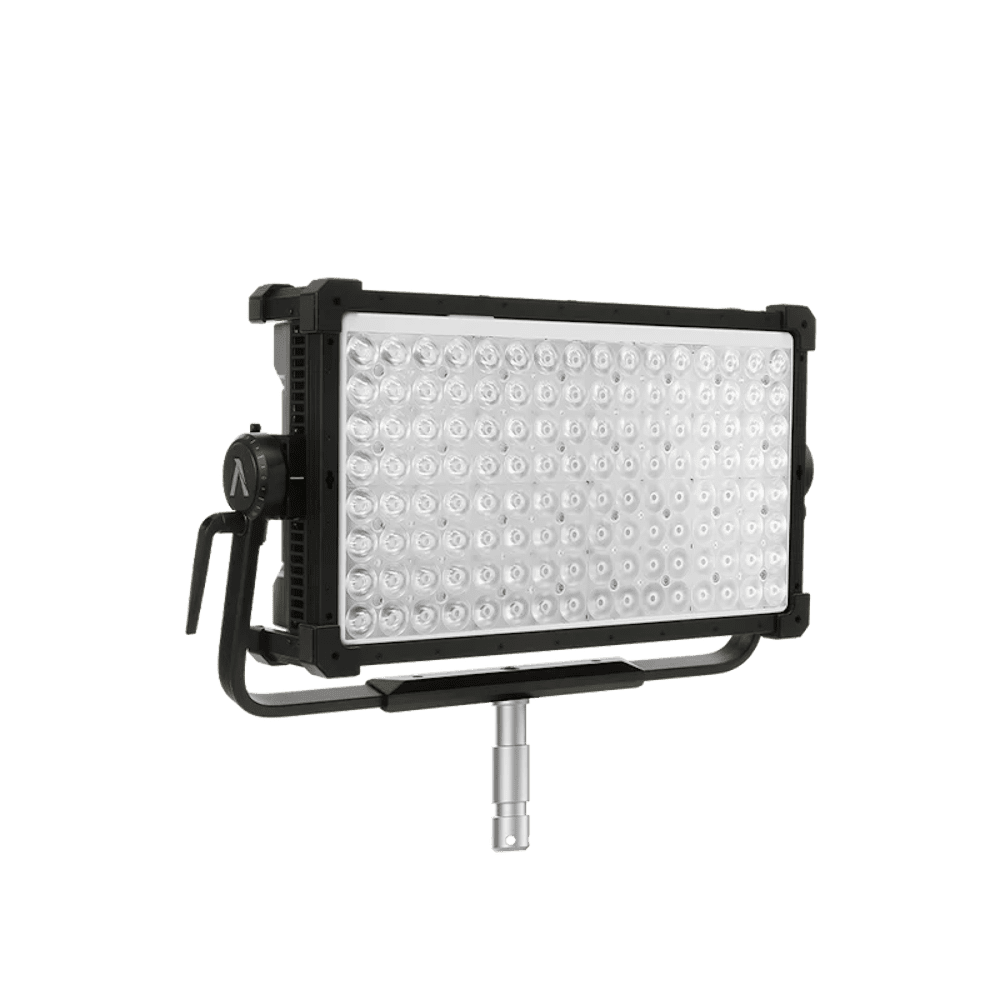

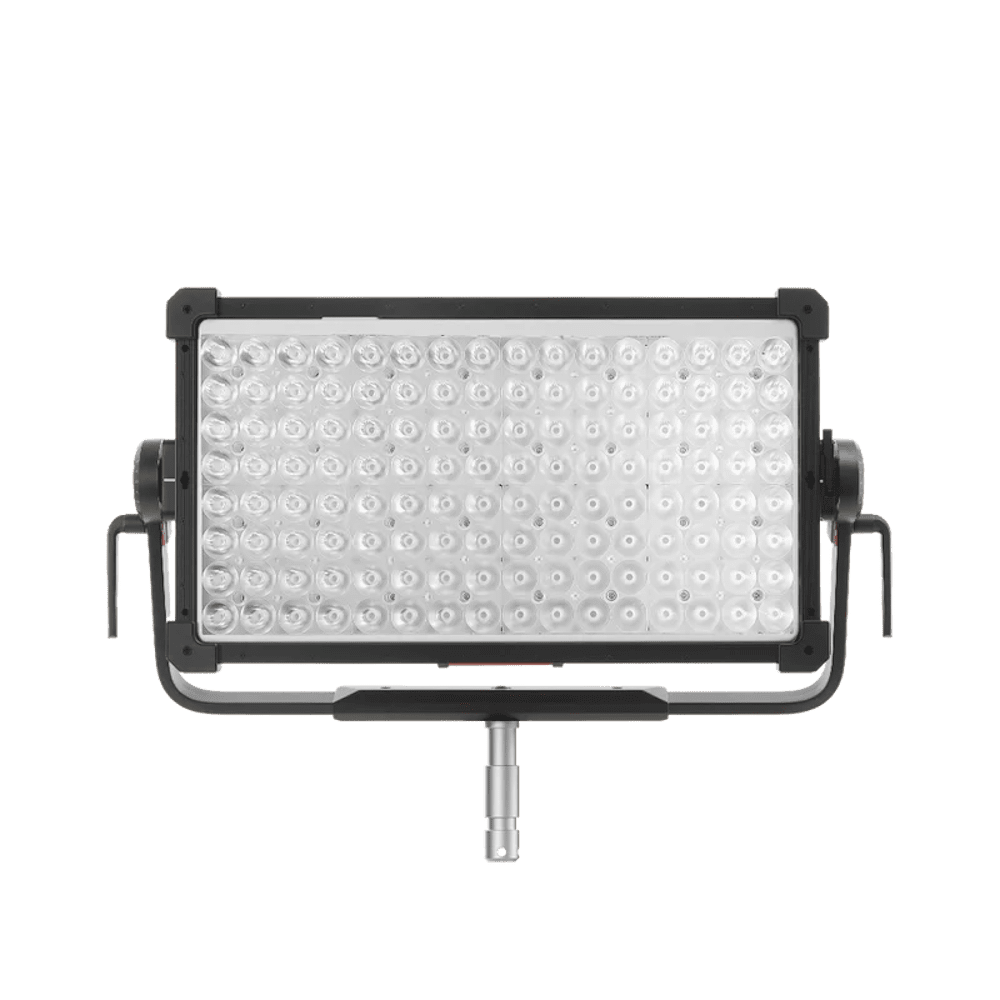

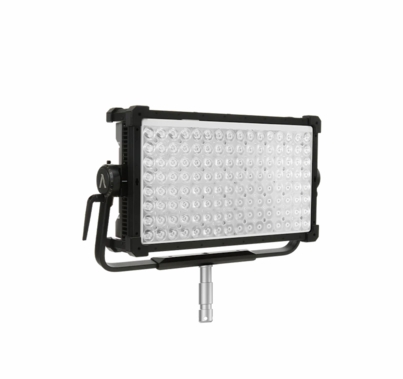

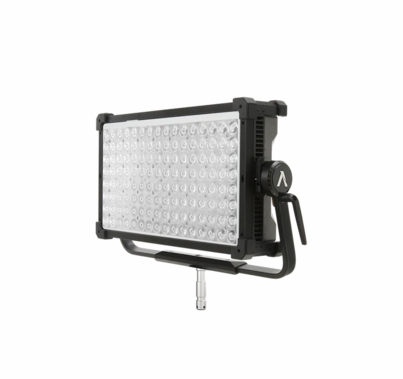

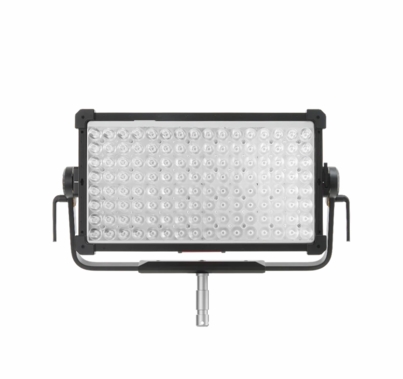

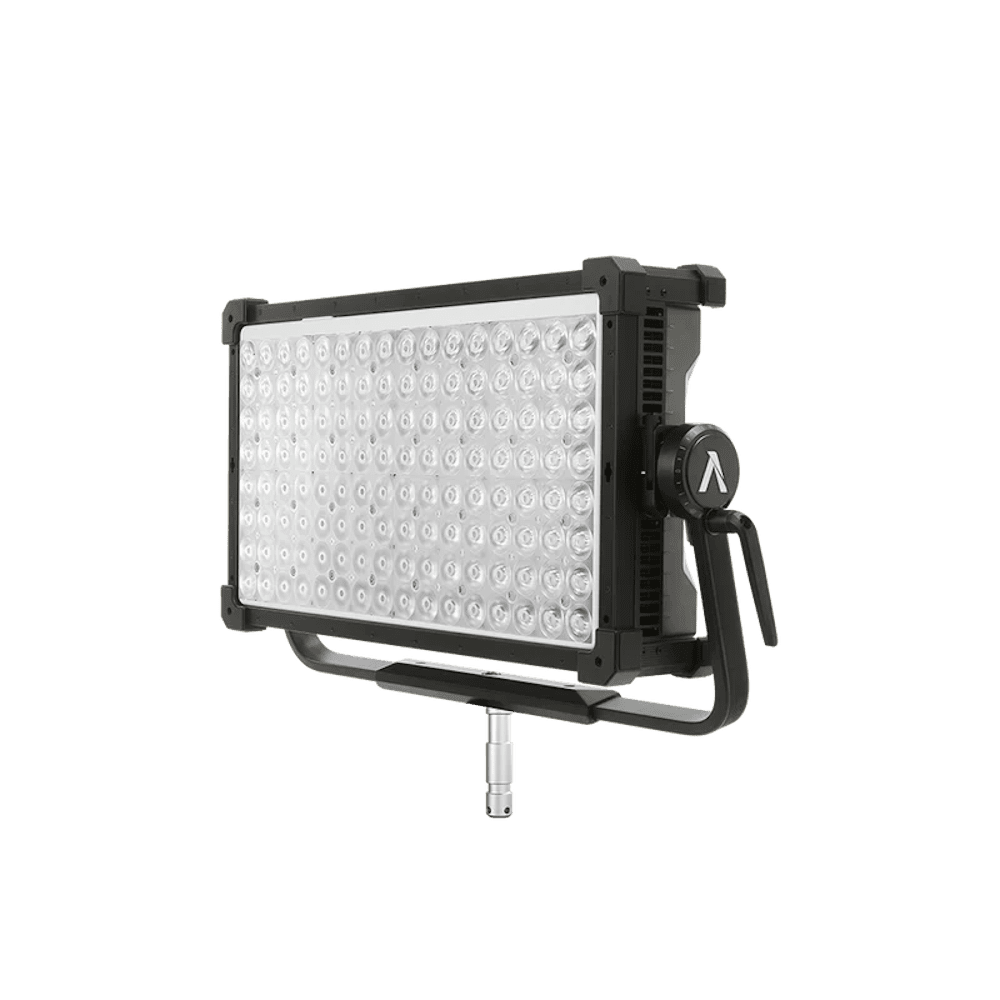

Precision Sunlight, Reimagined in a Panel.The Aputure NOVA 9° 2x1 is not just another LED panel—it is a hyper-narrow, long-throw lighting powerhouse designed to do what traditional panels can't: create intense, directional shafts of light and crisp shadows. Powered by the breakthrough BLAIR Light Engine, it delivers the most accurate tunable white light in the industry, rivaling the throw and intensity of a 5,000W tungsten Fresnel while maintaining a slim, IP65-rated form factor.

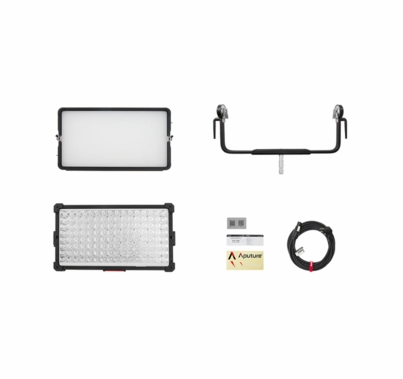

What’s in the Box?
- 1x NOVA 9º 2x1 Lamp Head
- 1x NOVA 2x1 Removable Yoke with Junior Pin
- 1x NOVA 2x1 Flat Diffuser
- 1x AC Power Cable (6m)
- 1x Safety Chain (50cm)
Key Features
- 650W high-output LED panel for film, TV, and studio production
- Ultra-tight 9° beam for long-throw directional lighting
- Up to 29,730 lux at 16.4' (5600K)
- Wide 1800–20,000K tunable white range
- BLAIR chipset for advanced spectral performance and color accuracy
- CRI 95 | TLCI 95 | TM-30 Rf 95, Rg 100
- Plus/Minus Green correction for precise color matching
- Four pixel zones for smooth lighting effects
- Stepless dimming from 0.1–100% with multiple dimming curves
- IP65 weather-resistant construction for indoor or outdoor use
- QuickClip front-mount accessory system
- Includes yoke, flat diffuser (80° beam), AC cable, and safety chain
Long-Throw Precision Lighting
The NOVA 9° 2x1 is engineered for applications that require concentrated intensity at distance. Its narrow beam creates a powerful shaft of light that maintains output over long throws—perfect for:
- Simulating natural sunlight through windows
- Creating hard shadows and defined highlights
- Lighting large sets, stages, and exterior scenes
- Commercial, narrative, and broadcast production
For added versatility, the included flat diffuser expands the beam to 80°, delivering smoother luminance and controlled softness when needed.
Professional Control & Connectivity
Designed for modern production workflows, the NOVA 9° 2x1 offers comprehensive control options:

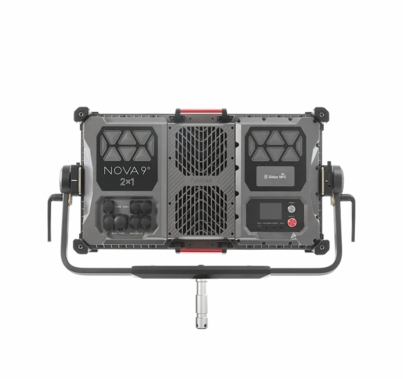

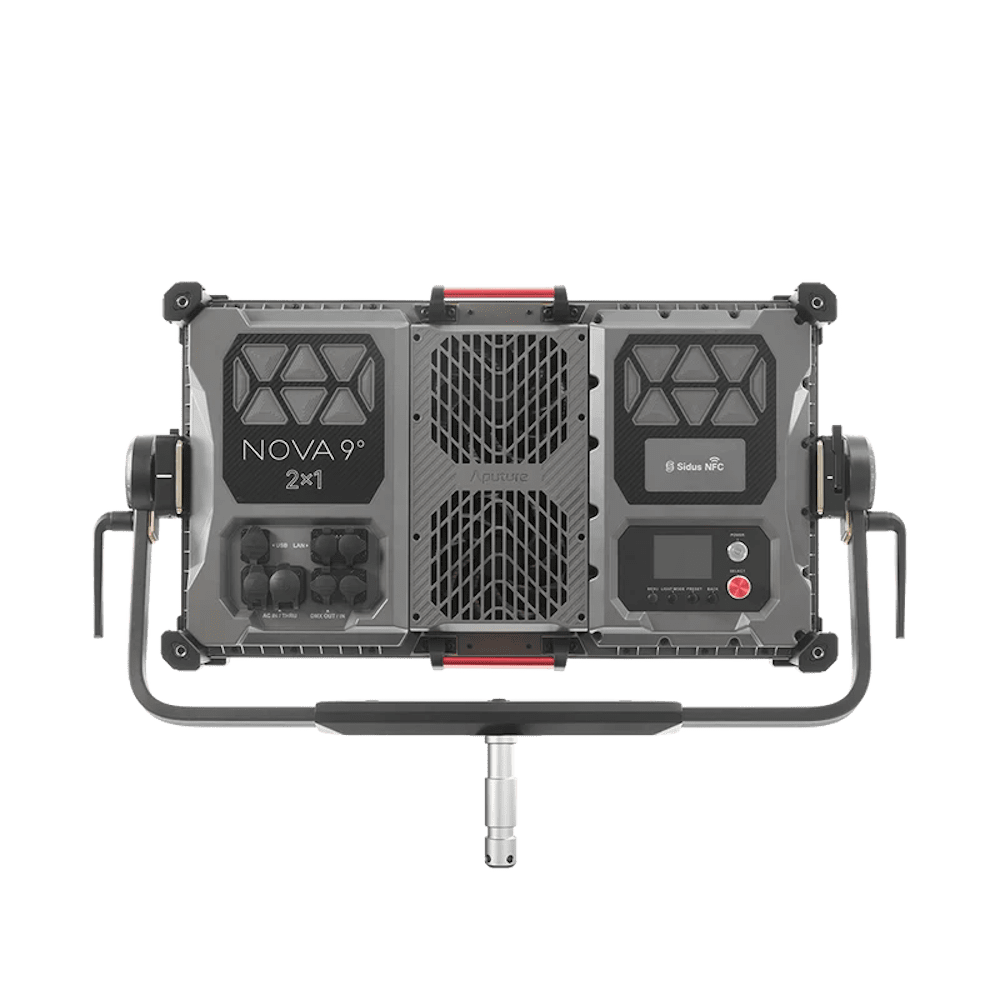

- Onboard controls with high-resolution rear display
- Sidus Link app control via Bluetooth
- 16-bit DMX512 in/out with RDM
- LumenRadio CRMX wireless DMX
- Art-Net & sACN via dual locking Ethernet ports
- Batch firmware updates via Sidus Link, USB, or DMX
With multiple dimming curves, four fan modes (Smart, High, Medium, Silent), and dual output modes (Max or Constant), lighting technicians can optimize performance for any production environment.
Built for Demanding Productions
The rugged IP65-rated housing protects against dust and weather, making the NOVA 9° 2x1 a reliable choice for studio installations, stage use, and location shooting. The fixture features a removable yoke for flexible rigging and can be stacked into multi-light arrays for high-intensity lighting walls or directional clusters.
- Panel size: 27.2 x 15.3 inches
- Weight: 38 lb (43 lb with yoke)
- 100–240V AC operation
- Wireless control range: up to 328 ft
- 15 built-in lighting effects and 10 user presets
Ideal Applications
- Film and television production
- Broadcast and studio lighting
- Commercial and corporate video
- Stage and event production
- Sunlight simulation and long-distance illumination
- Rental houses and large-scale lighting systems
Frequently Asked Questions
- What is the Aputure BLAIR light engine? The BLAIR engine is Aputure’s advanced LED chipset consisting of Blue, Lime, Amber, Indigo, and Red emitters. Unlike standard RGBWW chips, BLAIR uses Indigo to fill the spectral gaps in the near-UV range, resulting in better skin tones and more natural-looking white light that mimics the sun's behavior on different textures.
- Can the NOVA 9° be used as a soft light? Yes. While its native 9° beam is designed for hard, directional light, the fixture includes a flat diffusion panel that expands the beam angle to 80°, turning it into a high-output soft source with exceptional punch.
- How does it compare to tungsten lighting? The NOVA 9° 2x1 outputs more light than a 5,000W tungsten Fresnel at a distance of 5 meters, yet it consumes only 650W and offers full color temperature tunability without the need for gels.
Whether used as a powerful key light, a long-throw punch source, or part of a multi-fixture array, the Aputure NOVA 9° 2x1 Tunable White LED Panel delivers exceptional brightness, color accuracy, and professional reliability for today’s demanding productions.
