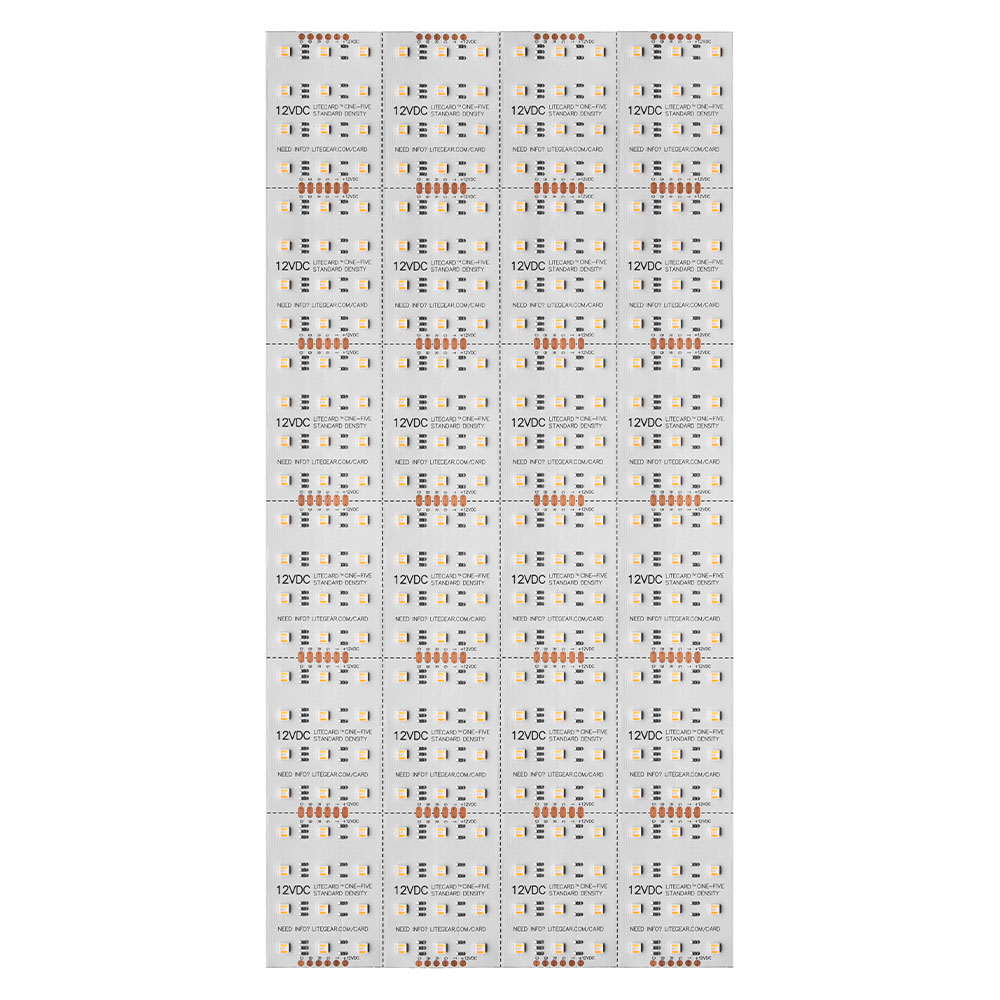

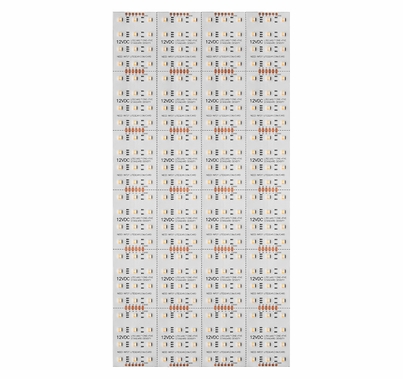

LiteGear LiteCard Chroma Series Cine-Five RGB+HY | 12V

PRODUCT DESCRIPTION

LiteGear LiteCard Chroma Series Cine-Five RGB+HY | 12V

Cine-Five is the first edition to the LiteCard Chroma family. The new revolutionary LiteCard Cine-Five features cinema-quality 95+ CRI hybrid with the ability to add in crisp RGB color accents. While Cine-Five is technically part of the Chroma family, at its core, itʼs essentially LiteGearʼs truly most adjustable Hybrid LiteRibbon. Each variation of LiteCard Cine-Five is available in 12 volt and 24 volt versions.

Specs

• Power: 100W (total potential power per card)
• Voltage Input: 12 VDC nominal (8-13.5 VDC constant voltage)
• Current: 8.33A (total potential current per card)
• CCT: Hybrid 2600K (+/-300K) & 6000K (+/-300K)
• CRI: 95+ (Tungsten), 95+ (Daylite)
• TLCI: 95.8 (Tungsten), 98.1 (Daylite)
• Beam Angle: 120°
• Lumens (lm) Whites: 1647.0 (Tungsten), 1752.5 (Daylite)
• Lumens (lm) Colors: 667.6 (Red), 1315.1 (Green), 342.8 (Blue)
• Color Space Compliant: Yes (with appropriate controller)
• Green/Magenta: Yes (with appropriate controller)
• Weight: 0.428 lbs. (0.19 kg) including wire lead
• PCB Dimensions: 240mm (9.45 in.) x 480mm (18.90 in.)
• Card Overall Thickness: 2.2mm (0.087 in.)
• Segment Dimensions: 60mm (2.36 in.) x 80mm (3.14 in.)
• Segments per Card: 24
• Total LED Quantity: 288
• LEDs per Cut Segment: 12
• LED Spacing: 20mm (.79 in.)
• Dimming Range: 0-100%
• Operating Temperature: -10°C to +50°C (14°F to +122°F)
• Connector: Bare Wire
• Mounting: Adhesive backing
• LED Lifetime: 50,000 Hrs
• IP Rating: 20
• Certifications: UL Listed (Canada/US), CE Compliant (Europe)
