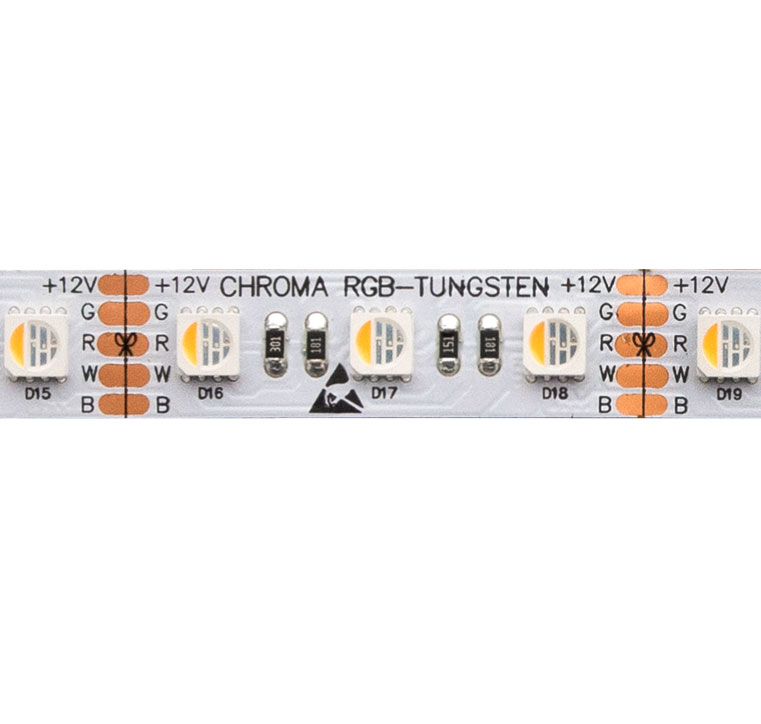

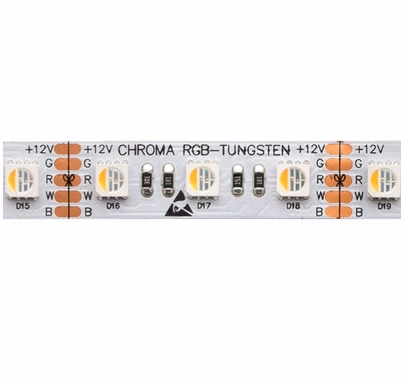

LiteGear LiteRibbon Chroma X1, 4 in 1, RGB-Tungsten, 72, 12V, 5 m

PRODUCT DESCRIPTION

LiteGear LiteRibbon Chroma X1, 4 in 1, RGB-Tungsten, 72, 12V, 5 m

LiteRibbon Chroma, 4 in 1, RGB-Tungsten, 72, 12V, 5 m designed specifically for those with an eye on blending color with high-CRI Tungsten. This LiteRibbon variation is 1 row of chroma quality emitters and runs on a 12-volt current. It is available in 5m lengths. Chroma-Correct is a proprietary LiteRibbon designed specifically for blending color. This custom 4-in-1 chipset is populated with RGB emitters and high-CRI white light. You can achieve several color choices with this variation of LiteRibbon.

Specs

• Color Name: RGB Tungsten
• Power: 115W (total potential power per 5 meter roll)
• Voltage Input: 12 VDC nominal (8-13.5 VDC constant voltage)
• Current: 9.6A (total potential current per 5 meter roll)
• CCT: 2600K (+/-100K)
• CRI: 93.8 Tungsten
• TLCI: 93 Tungsten
• Beam Angle: 120°
• Whites: Luminous Flux (1m): 450.0 (Tungsten)
• Colors: Luminous Flux (1m): 140(R) 330(G) 100(B)
• Color Space Compliant: No
• Green/Magenta: Yes (with appropriate controller)
• Weight: 0.27 lb. (123.3 g) per 5 meter roll, including wire lead
• PCB Width: 12 mm (0.47 in.)
• PCB Length: 5 m (16.4 ft)
• Ribbon Overall Thickness: 2 mm (0.08 in.)
• Cut Segment Length: 41.7 mm (1.64 in.)
• Cut Segments per Meter: 24
• Total LED Quantity: 360
• LEDs per Meter: 72
• LEDs per Cut Segment: 3
• LED Spacing: 14 mm (0.55 in.) Center to Center
• Dimming Range: 0-100%
• Operating Temperature: -10°C to +50°C (14°F to +122°F)
• Connector: PH5.F
• Mounting: Adhesive backing
• LED Lifetime: 50,000 Hrs
• IP Rating: 20
• Certifications: UL Listed (Canada/US), CE Compliant (Europe)
