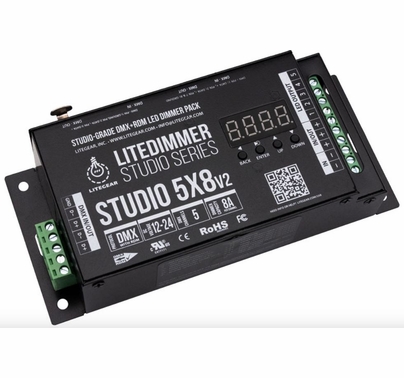

LiteGear LiteDimmer Studio Series 5x8 V2 Dimmer
LiteDimmer Studio 5×8 is the most advanced DMX-controlled LiteRibbon® dimmer available. Each of its five channels is capable of controlling 100W at 12VDC or 200W at 24VDC – that’s 8 amps maximum per channel. We have included specialized software modes that allow for true cinema and TV-style action. From the simple setting where all channels respond to DMX address 1, to freely mixing RGB with Hybrid (bi-color) white for saturated and color-correct output. Adjustable PWM frequency, 8- or 16-bit operation, combined with user-selectable dimmer curves make our Studio 5×8 like no other.
***Special Order item, non-stock***
***ALL SALES FINAL NO RETURNS on LiteGear Products***
What's Included
- LiteDimmer STUDIO SERIES 5X8
- User Guide
FEATURES:
- Single, Hybrid, RGB+Hybrid, and RGB(A/W)+Single Modes
- DMX Control with Test Operation
- Variable PWM Frequency (5~30 kHz)
- Flicker-Free
- Variable Dimmer Response (Gamma) Curve
- 8-bit and 16-bit Operation
- RDM-Capable
- Ultra Capacity (32A Continuous; 40A Max.)
Technical Specs
- SIZE: 6.5 in. x 2.875 in. x 1.5 in. (165.1mm x 73.0mm x 38.1mm) (LxWxH)
- WEIGHT: 13.41 oz, 380g
- POWER RATING: @ 12VDC: 384W (32A) continuous (480W [40A] max. total); 96W (8A) max. total per channel @ 24VDC: 768W (32A) continuous (960W [40A] max. total); 192W (8A) max. total per channel
- VOLTAGE INPUT: 12~24VDC
- VOLTAGE OUTPUT: Constant Voltage, PWM
- DATA PROTOCOL DMX512 DIMMING RANGE: 0 to 100% Continuous, Flicker-Free
- CONTROLS: Alphanumeric Seven-Segment Display with (4) Pushbuttons (Back, Enter, Up, Down)
- MOUNTING: (2) Flanges with Slots for Wood Screws or Zip Ties
- AMBIENT TEMP. OPERATION: -30°C (-22°F) to 50°C (122°F)
- IP RATING IP20 SETTINGS: Variable Dimmer Curve Variable
- PWM DMX BIT RATE: Local and DMX Operation Several DMX Decoding Proles
- RDM MODES: Local (Channels 1 through 5) DMX (Single, Hybrid, RGB+Hybrid, and RGB[A/W]+Single)
- APPROVALS: CE, RoHS, FCC
- POWER SUPPLY OPTIONS: Make sure that your power supply meets the following criteria before connecting to the LiteDimmer Studio 5×8
CONTROLS
- (4) Pushbuttons (Back, Enter, Up, Down)
- (1) 4-digit 7-Segment Display (SSD)
CONNECTIONS
- (2) 5-pin DMX Connections (Input/Output)
- (2) RJ45 DMX Connections (Input/Output)
- (1) Pluggable Phoenix-10 Male (PH10-M) (for Power Input and LED Output)
NOTE: Voltage must be compatible with the voltage requirements of LiteRibbon,
LiteMat, or LiteTile. For best results, we recommend that you do not use LiteDimmer Studio 5×8 with non-LiteGear LED products.
