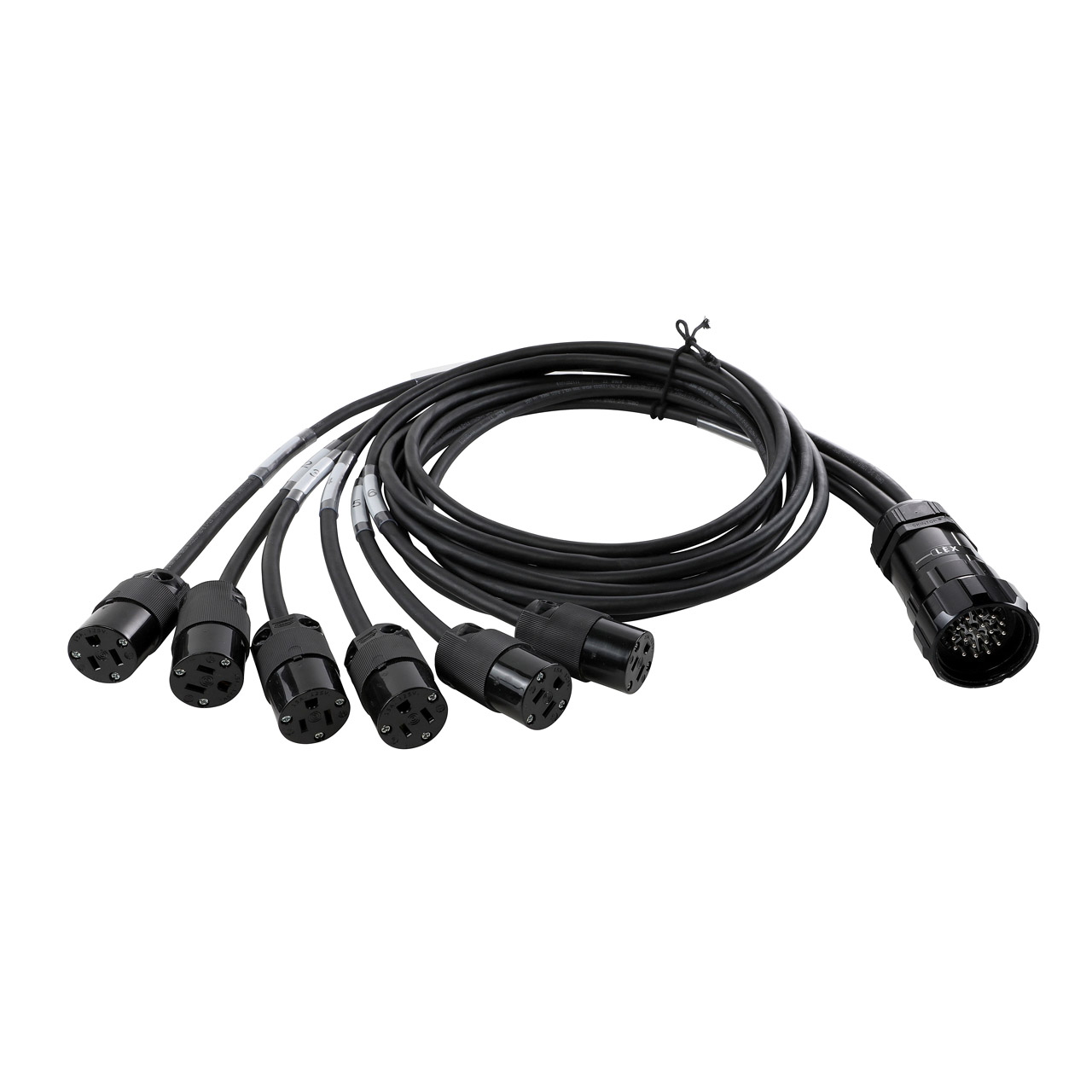

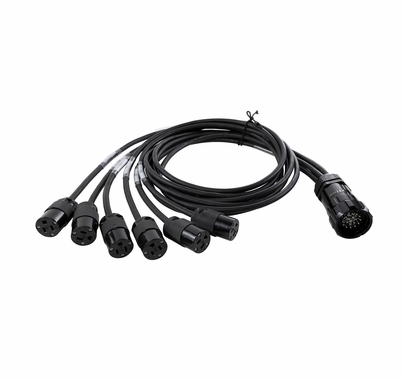

Lex EverGrip Breakout Male Socapex LSC19 Pin to (6) Female Edison | 6ft

PRODUCT DESCRIPTION

Lex EverGrip Breakout Male Socapex LSC19 Pin to (6) Female Edison | 6ft

Features & Benefits

• Break-out converts a 6-circuit multi-cable to (6) Edison 5-15 female connector bodies so that equipment can be plugged in
• Cables feature Lex Products’ exclusive LSC19 6-circuit lighting connectors with 12 interlocking keys to help prevent spinning of the interior within the male and female housing
• Helps eliminate broken conductors and loose or damaged ground rings
• Prevents misalignment of male and female circuit conductors
• Machined aluminum LSC19 housing with hard black anodized finish provides enhanced durability
• Silver plated brass contacts for high conductivity
• Jr. Hard service cord is flexible and compact
• All black construction blends into scenery and is ideal for stage or studio lighting applications

Markets Served

• Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers

Technical Information

• Rating: 15 Amp, 125 VAC, Single-phase, 2-Pole, 3-Wire NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
• Male Plug: (1) 20A 19-Pin Male (Plug), Black
• Cable/Cord: (6) #12/3 Type SJOOW, Black
• Length: 6ft
• Female Connector: (6) 15A NEMA 5-15 Female (Connector), Black
