Joker 800 Bug A Beam Adapter with Pins

PRODUCT DESCRIPTION

K5600 Joker 800 Bug A Beam Adapter for ETC Source 4

Adapts the K5600 Joker 800 to a ETC Source 4 Ellipsoidal body.

***Fits Original Joker 800 only, Not Joker2***

The K 5600 BUG-LIGHT design offers so many possibilities it is tempting to 'stick it' in almost any optical system one runs across. One obvious and popular device is the ETC Source-4. This elegant design of a pattern and Gobo projector has showed up in various applications and is widely accepted throughout the entertainment industry.

The BUG-A-BEAM Adaptor is the part that makes the mating of a Source-4 and our Bug-Light 400 or 800 not only possible but quick and easy. The 400 (or 800) MSR/HMI lamp offers many advantages in this particular application, its 6 mm arc gap is punctual enough and very well suited for such optical design. The 4 to 1 efficiency ratio of HMI versus Tungsten incandescent explains the two full stops gain.

This huge increase in light level allows patterns to be visible in higher ambient light levels, longer distances as well as through the deepest color gels.

Bug a Beam Includes:

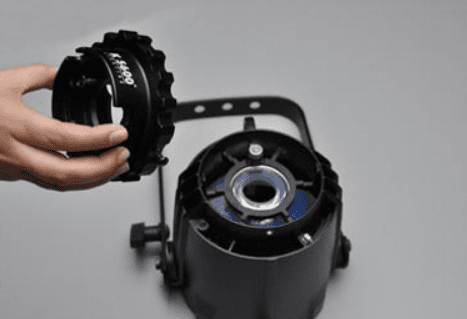

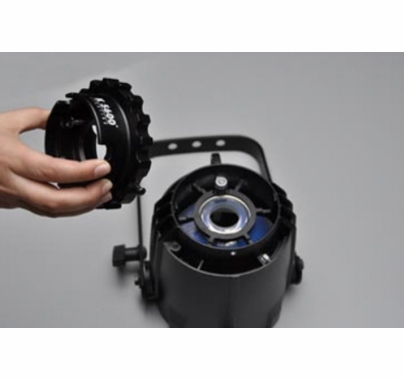

• Bug A Beam Adapter Ring

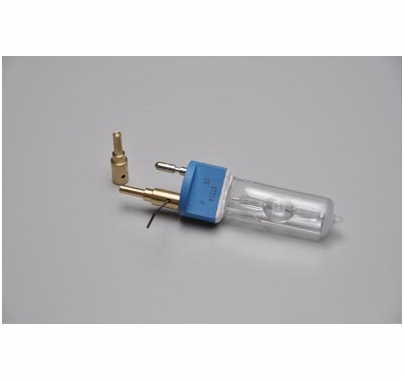

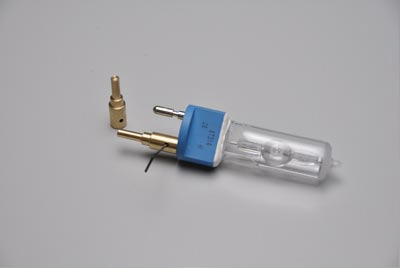

• Pins (for extending lamp pins)
• Source 4 Back w/ Reflector

***Lamp (shown in photo) NOT INCLUDED***
