City Theatrical QolorPIX LED Tape RGB 5m Not Jacketed | Indoor Use

PRODUCT DESCRIPTION

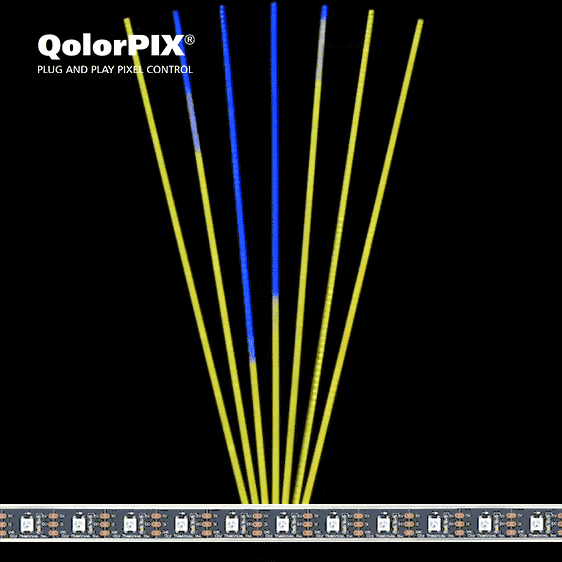

QolorPIX Pixel Controlled LED Tape

City Theatrical's QolorPIX Pixel Controlled LED Tape, designed for demanding professional indoor applications, offers unique features for dynamic lighting solutions.

Key Features:

• Individually controllable LEDs
• Low voltage operation (5VDC)
• Customizable - can be cut and soldered
• Plug and play connection to the QolorPIX Controller
• Compatible with onboard MultiverseŽ wireless DMX/RDM technology

Specifications:

• Physical:
• Length: 5m (16.404 ft)
• Width: 12mm (0.472 in)
• Cutting Increment: 21.0mm (0.827 in)
• LED Spacing: 21.0mm (0.827 in)
• Backing Color: Black
• Connector Type: 4-Pin XLRM soldered to a 15.2cm (6.0 in) pigtail on one end
• Pinout: Pin 1 (Black wire - Ground), Pin 2 (Not used), Pin 3 (Green wire - Signal), Pin 4 (Red wire - 5V)
• Product Information:
• Use Environment: Indoor/Outdoor
• Dimmable: Fully Dimmable
• Average Life: 50,000 hours
• IP Rating: IP20
• Compliance: ETL, CE, RoHS
• Electrical:
• Operating Voltage: 5VDC
• Current: 5 A/5m
• Power Consumption: 25 w/5m
• Density: 48 LEDs/m
• LED Chip Size: 5050
• Output:
• Color(s): RGB
• Color Temperature: n/a
• Wavelength: 622/523/467 nm
