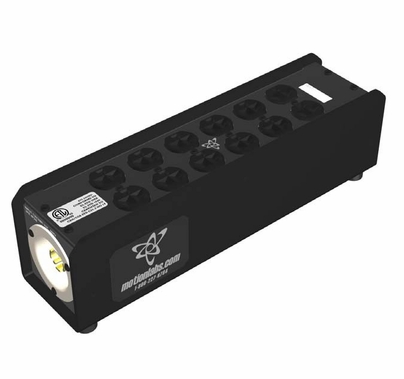

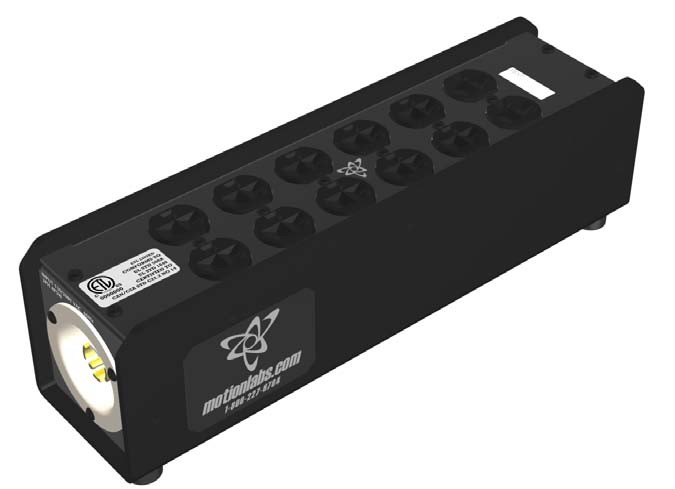

Motion Labs Non-Breakered Stringer Box, Twist Lock L21-20 I/O X 6 Duplex Edison Dog House

SKU: 1150-01-103-401-0002

Availability: Backorder, Usually leaves warehouse in 7-12 business days

Our Price: $429.88

Price: $469.00 You Save: $39.12 (8%)

Have a Question? Need Expert Advice?

Give Us a Call 203-208-0615

DESCRIPTION: Non-Breakered Stringer Box, Twist Lock L21-20 I/O X 6 Duplex Edison Dog House.

Dimensions: 15.5" Overall Length, 3.875" Over Width, 4.625"Overall Height
Weight: 4.9lbs
Input Voltage: 120/208Y VAC 3Phase 60Hz, 20A Thru Unswitched Thru Connector
Output Voltage: 3 Circuits, 120VAC, 60 Hz, 20A, 2 Connectors per Phase
Construction: Shell Made from Boltaron 4335 Extruded Acrylic PVC Alloy Sheet, UL94 V-0 Rating, 1/4" Thick, Panels are .090 Aluminum, Black Anodized, Diamond Bit Engraving, NEMA 1
Breakers: None
Listing: ETL Listed. Conforms to UL STD 1640, UL STD 508A, Certified to CAN/CSA STD C22.2 No 14

CONNECTOR SPECIFICATIONS:
CONNECTORS I/O: Hubbell Brand, Twist Lock NEMA L21-20 20A 3PH, Nylon, White. Inlet: HBL2515, Thru Outlet: HBL2516. UL/CSA
CONNECTORS OUTPUT: Hubbell Brand, NEMA 5-20, Edison Duplex, HBL 5352 BLK
