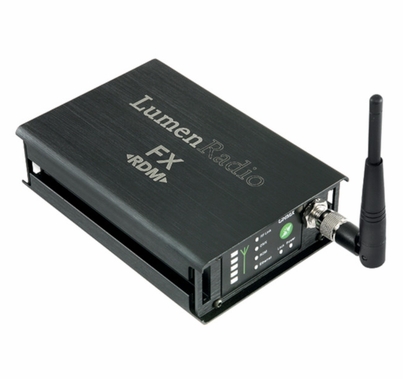

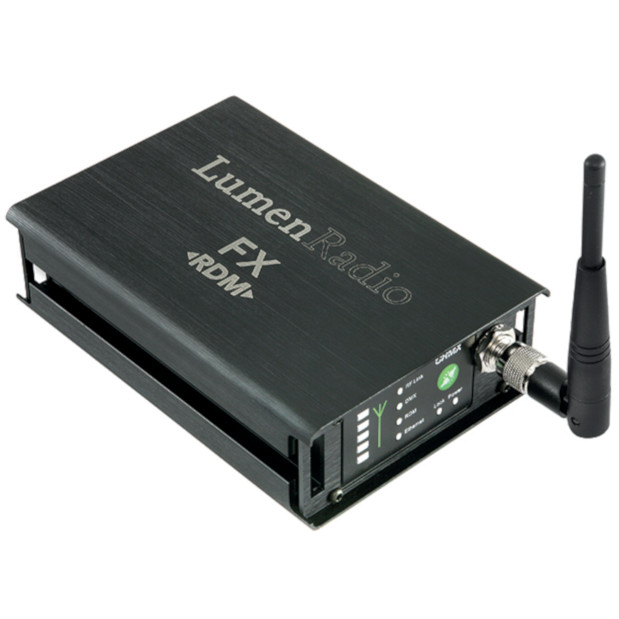

Lumen Radio CRMX Nova FX RDM Wireless DMX Transmitter / Receiver

PRODUCT DESCRIPTION

Lumen Radio CRMX Nova FX RDM Wireless DMX Transmitter / Receiver

The LumenRadio CRMX Nova FX RDM Flex can be used as either a wireless DMX transmitter or receiver. Supports up to one universe (512 channels) of DMX control. When in transmitter function, all supported Ethernet protocols can be used in any direction. Functioning as a receiver, it can output any supported Ethernet protocol, as well as standard DMX 512 and RDM. Supports both wired and wireless RDM.

The rugged aluminum housing is built for the rigors of the rental lighting market. The Nova FX is designed to withstand the wear and tear of touring, rental and stage use. Operates on the 2.4 GHz band and can be used around the globe without a license. Accepts ethernet an wired DMX input / output. Works with SuperNova software and can be used as RDM proxy device alongside any RDM controller.

Key Features

• Single Universe Flex unit - transmitter or receiver
• DMX512-A and RDM support
• Ethernet or Wired DMX input / output
• Compatible with W-DMX transmitters
• Up to 1000 meter link range
• Connects to SuperNova
• 5ms latency
• 128 bit encryption of wireless link
• Automated Cognitive Coexistence
• Forward Error Correction
• RP-TNC antenna connector

Supported protocols

• USITT DMX512, DMX512(1990) & DMX512-A
• RDM ANSI E1.20 (Controller and Proxy)
• Streaming ACN (Draft and Final)
• ArtNet I, II & 3
• Pathport
• Strand ShowNet
• ETCNet 2 & 3
• KiNet V1 & V2

Power

• High voltage input: 85-264VAC / 47-70Hz / 10W
• Low voltage input: 12VDC ±20% / 7.5W
• Overvoltage and ESD protected power inputs PoE, Power over Ethernet

Physical

• Dimensions (W x H x D): 110 x 44 x 125 mm (4.3″ x 1,7″ x 6.3″)
• Weight: 700g, 24oz
• Enclosure: Anodized extruded aluminum

RF characteristics

• Operational frequency range: 2402-2480 MHz
• Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
• Tested link range: up to 1000 meters line-of-sight

Connectors

• DMX: 1 XLR Neutrik® 5-pin gold plated female
• Antenna: RP-TNC male
• Ethernet: 1 RJ45
• AC: IEC 320-C14 male
• DC: Pluggable terminal strip, Phoenix® MSTD 2,5
