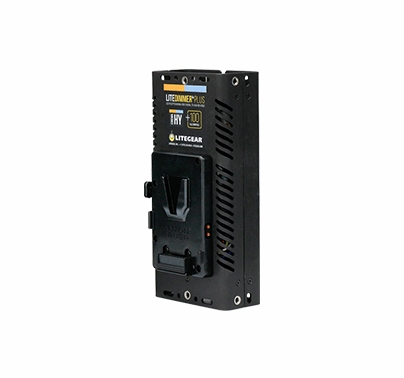

LiteGear LiteDimmer Plus 100W DC100V DC Unit | V-Mount

PRODUCT DESCRIPTION

LiteGear LiteDimmer Plus 100W DC100V DC Unit | V-Mount -LD1.00107

LiteDimmer+ Plus DC100V is the ideal portable companion for powering +Series fixtures. With a focus on DC input power, the 100W unit can be powered using typical V-Mount-compatible batteries. LiteDimmer+ Plus DC100V is compatible with LiteMat+ Plus 1, 2, and 2L. Optionally, an external AC powered, 12 volt power supply can be used and attached to the battery mount with the optional power supply mounting plate. The LiteDimmer+ Plus’ rugged housing includes several different mounting options including four 1/4-20 threads for attaching clamps or brackets.

Specs

• POWER RATING: 100W
• VOLTAGE INPUT (BATTERY): 14.4VDC Nominal (10~16VDC) (V-Mount)
• VOLTAGE INPUT (EXTERNAL): 9~40VDC (PL4 Connector) (Pins 1 and 4 – Neg., Pins 2 and 3 + Pos.)
• VOLTAGE OUTPUT: 24VDC Constant Voltage, PWM (PL7 Connector)
• TRIGGER JACK: 2.5 mm TRS
• DIMMING RANGE: 0% to 100% Continuous, Flicker-Free
• CONTROLS: On-Board “ON-OFF” Switch, Manual Kelvin Dial, Manual Dimming Dial
• SOFTWARE INTERFACE: Proprietary Connector, Service Center Upgradeable
• MOUNTING: (4) 1/4-20 Threaded Inserts, Drywall Screw Holes, Velcro®/Cable Tie Slots, Paracord Lanyard
• AMBIENT TEMP. OPERATION: –10° to +50° C (14° to 122° F)
• IP RATING: IP20
