PRODUCT DESCRIPTION

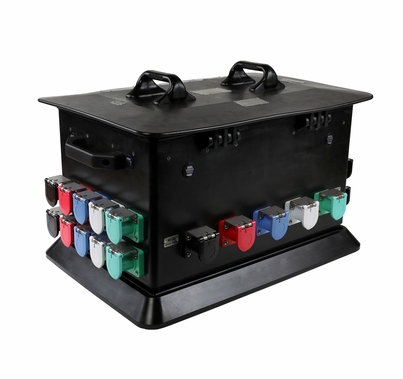

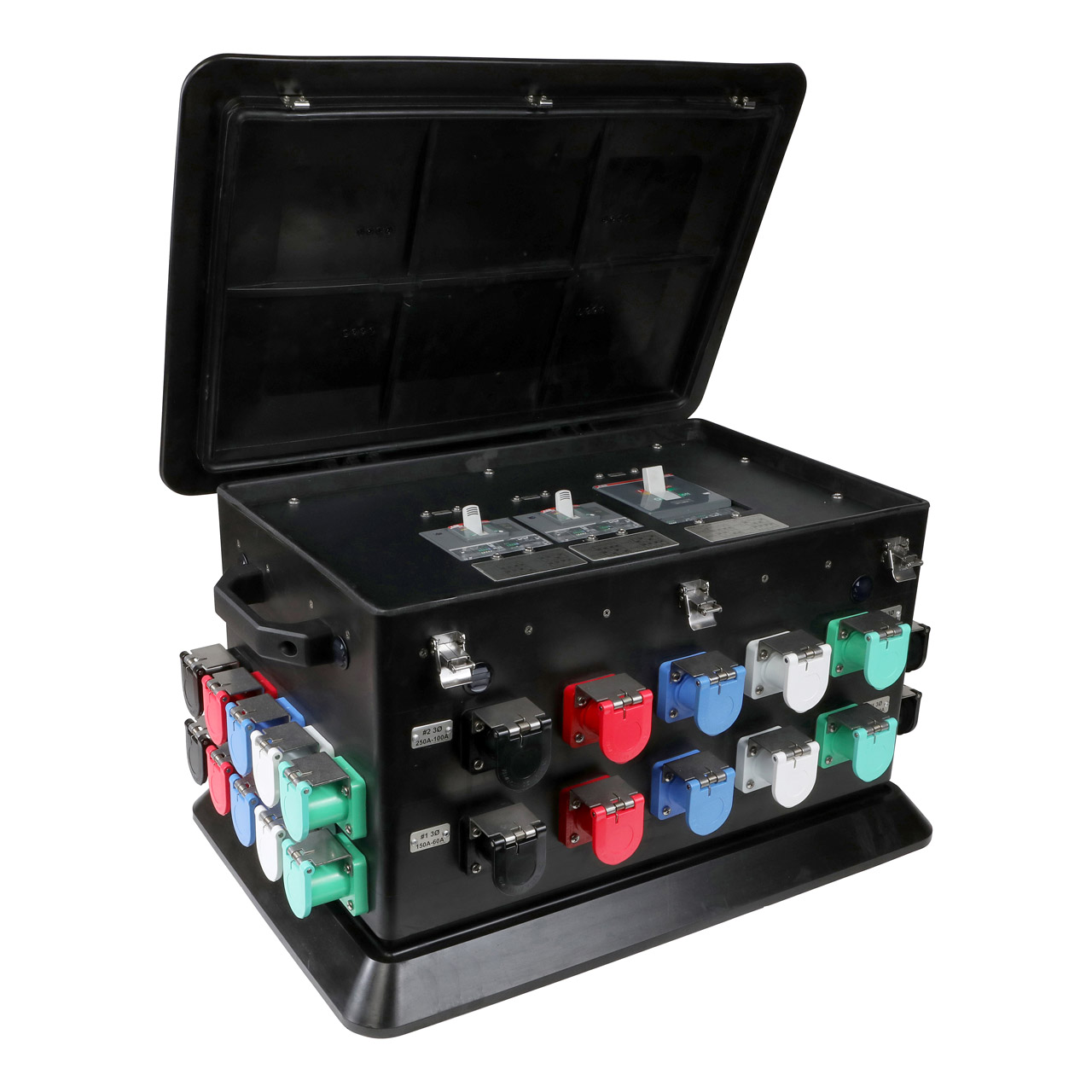

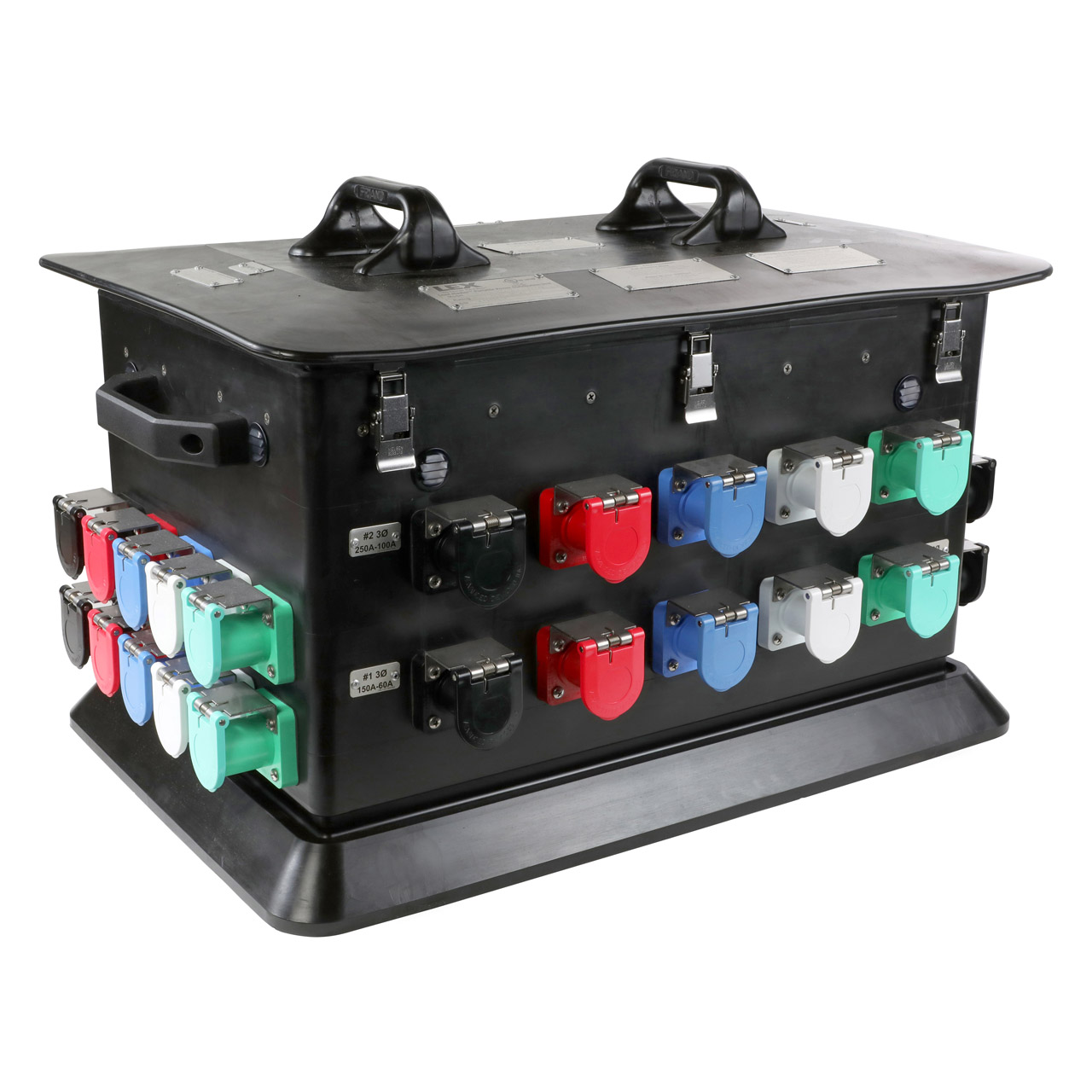

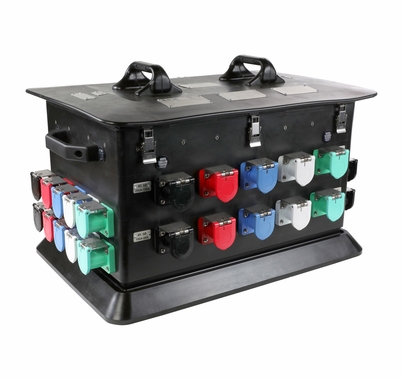

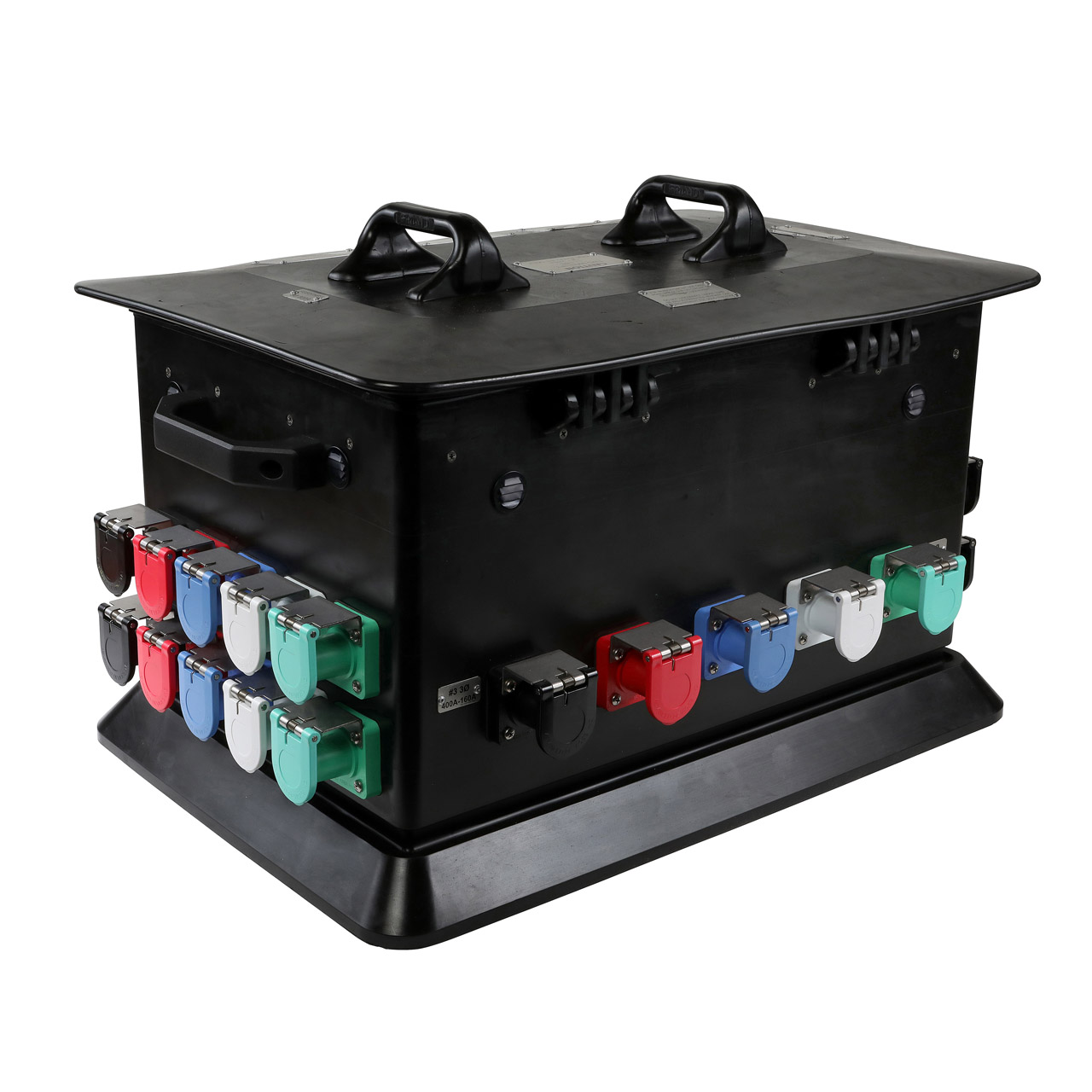

Lex 800 Amp Load Master with (3) Adjustable Output Circuits, Feed Thru, PH800G3-N2J-31AV1AX1AZ
800A 120/208 VAC, (2) Sets of (5) 16 Series Cam-type, Single Pole Males (Inlets) to (3) Sets of (5) 16 Series Cam-type, Single Pole Females (Outlets), Feed Thru, Power Station.
Features & Benefits
- The cULus Listed Load Master can handle a broad range of power distribution applications due to adjustable circuit breakers that enable overcurrent protection to be changed easily
- Typical applications include installations requiring a main disconnect for a range of varying downstream electrical loads such as portable kitchens, environmental control units, machinery, motors, tools and more
- Fed directly from a power source, the PowerHOUSE™ Load Master™ portable power distribution box distributes up to 800 Amps of 3 Phase power into (3) circuits
- Each circuit provides adjustable overcurrent protection for the output receptacles to match the specific load requirements
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
Markets Served
Construction, Emergency/Disaster Relief, Outdoor Events, HVAC, Shipyards, Concert Touring
Technical Information
- Rating: 800 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC
- Environmental Rating: NEMA Type 3R (Weather Resistant)
- Input: (2) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, BRBWG color-coded, panel mount inlets
- Feed Thru: Yes
- Main Breaker: None
- Output: (3) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, BRBWG color-coded, panel mount outlets
- Overcurrent Protection: (1) 60-150 Amp, three pole, adjustable, electronic, branch-rated circuit breaker; (1) 100-250 Amp, three pole, adjustable, electronic, branch-rated circuit breaker; (1) 160-400 Amp, three pole, adjustable, electronic, branch-rated circuit breaker
- Enclosure Type: Power Station
- Dimensions: 27.50"L x 18.50"W x 18.00"H
- Weight: 167.0 lbs
- Agency Approval: cULus Listed
