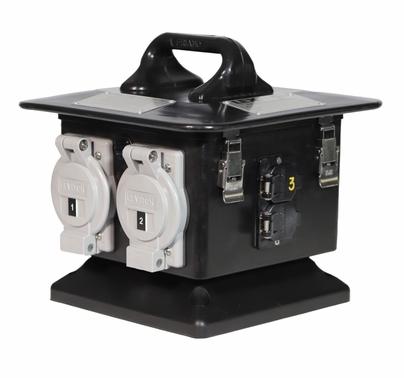

Lex 50A Pagoda RV Box, Weather Resistant

PRODUCT DESCRIPTION

This electrical distribution box is used at events where portable trailers need to be powered, such as golf tournaments, auto races, or fairs.

***Special Order Item, No Returns or Cancellations on this Item***

Features

• Heavy-duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather
• Compact for easy storage and convenient portability
• Breakers located under hinged lid, enhancing safety
• Elevated base keeps receptacles above ground level

Markets Served

• Live Events, Convention Centers, Sporting Events, Remediation, Restoration, Construction

Technical Information

• Rating: 50A, Single Phase (H, H, N, G)
• Environmental Rating: NEMA Type 3R (Weather Resistant)
• Input: 50A, California style, panel mount
• Feed Thru: None
• Main Breaker: None
• Output:
  (1) NEMA straight blade, 5-20, 20A, single phase (H, N, G), 125VAC, panel mount

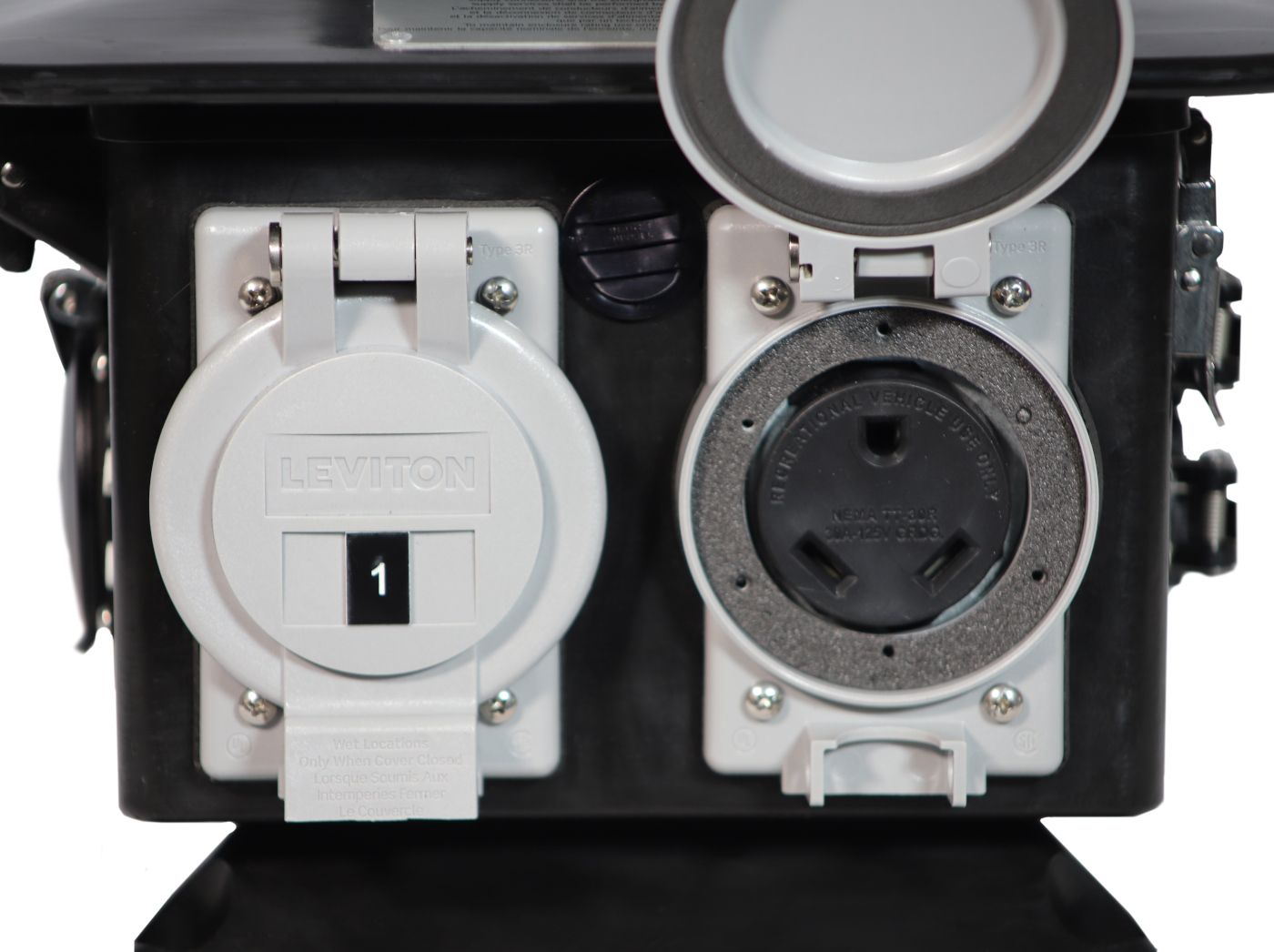

  (2) NEMA straight blade, TT-30, 30A, single phase (H, N, G) 125VAC, panel mount
  (1) NEMA straight blade, 14-50, 50A, single phase (H, H, N, G), 125(250VAC) panel mount
• Overcurrent Protection:
  (1) 50 Amp, 240 VAC, 2 pole, Hydraulic magnetic, branch-rated ciruit breakers; (2) 30 Amp, 240 VAC, single pole, hydraulic magnetic, branch-rated ciruit breakers; (1) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
• Enclosure Type: Pagoda Jr
• Dimensions: 8.5" L x 8.5" W x 11.5" H
• Weight: Approx. 16 lbs.
• Agency Approval: cULus Listed
