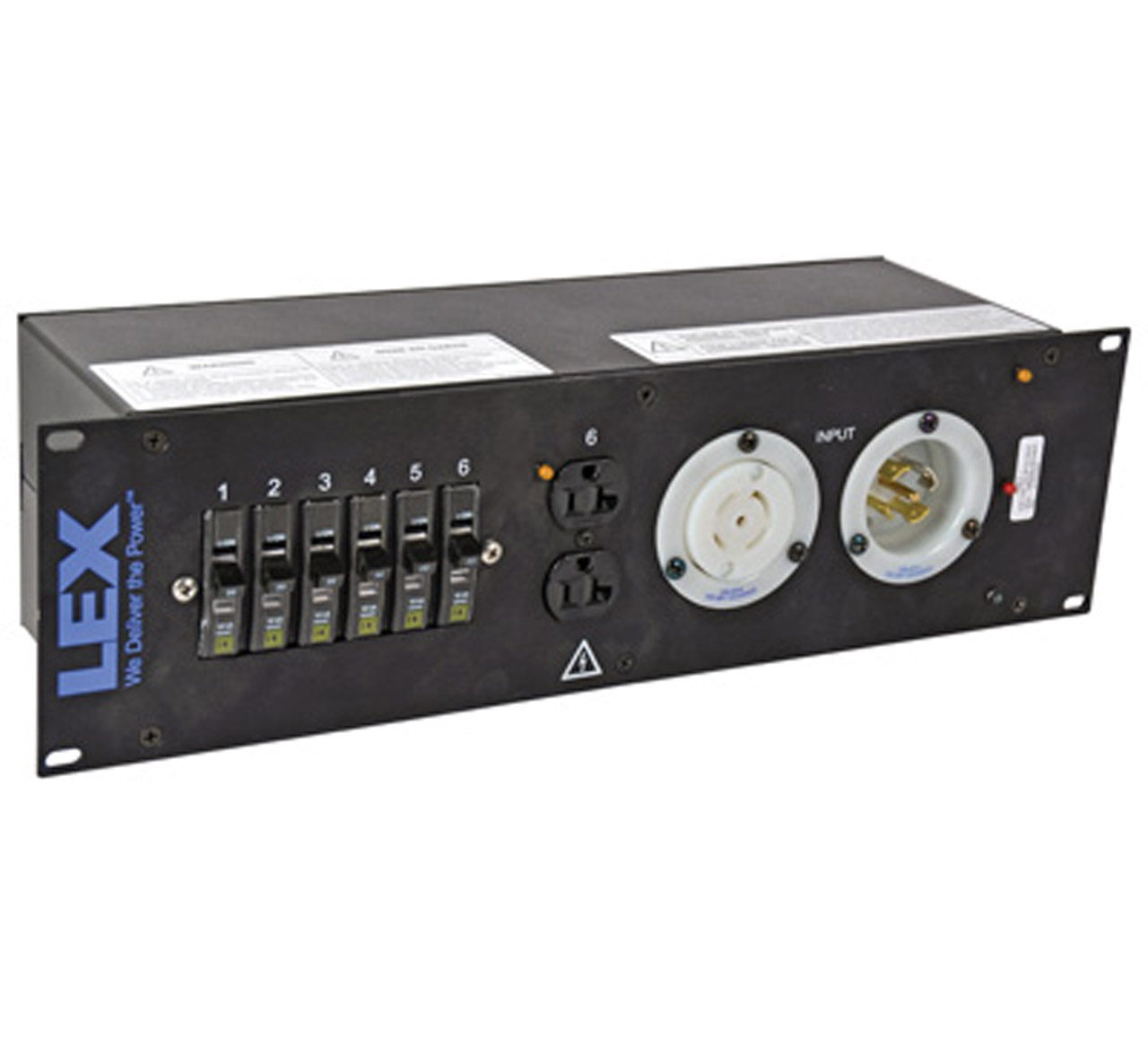

Lex 3RU Rack Mount Power Distribution, L21-30 In/Thru to (4) L5-30 and Duplexes PRM3IN-3CC4DC
Rack Mount Power Distribution, 3RU, L21-30 In/Thru Front, (4) L5-30 Locking Receptacles Rear, (2) 5-20 Duplex Receptacles Rear, (1) 5-20 Duplex Receptacle Front, (6) Circuits
Features & Benefits
- Modules mount in standard 19" permanent and rolling racks
- Modules are fully enclosed making them portable
- Easy to install for range of needs
- Branch-rated circuit protection
- Indicator lights included for clear presence of power
- Laser etched numbers for easy circuit identification
- Anodized black metal construction is lightweight and durable to withstand years of use
Technical Information
- Rating: 30 Amp, Three-phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC, 60Hz
- Environmental Rating: NEMA Type 1 (Indoor Use)
- Input: (1) NEMA L21-30, 30 Amp, 4-pole, 5-wire, 120/208Y VAC, locking inlet, panel mount
- Feed Thru: Yes
- Main Breaker: None
- Output: (4) NEMA L5-30, 30 Amp, 2-pole, 3-wire, 125 VAC, locking receptacles, panel mount; (3) NEMA 5-20, 20 Amp, 2-Pole, 3-Wire, 125 VAC, straight blade duplex receptacle, panel mount
- Overcurrent Protection: (4) 30 Amp, 125 VAC, single-pole, thermal magnetic, branch-rated circuit breakers; (2) 20 Amp, 125 VAC, single-pole, thermal magnetic, branch-rated circuit breakers
- Enclosure Type: Rack Mount Box
- Dimensions: 5.25"L x 19.00"W x 5.25"H
- Weight: 12.0 lbs
- Agency Approval: cETLus Listed
