Astera LED Titan Tube AC PowerBox FP1-PB

PRODUCT DESCRIPTION

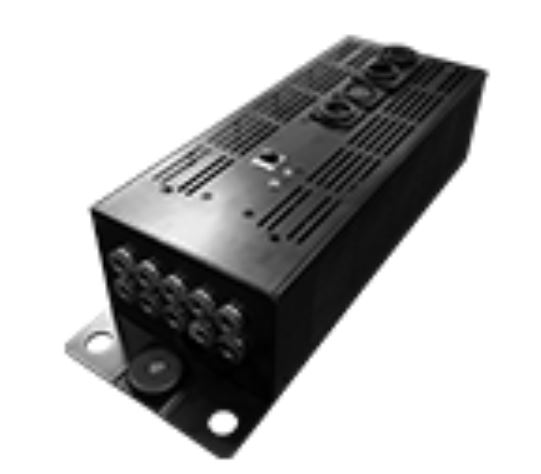

Astera LED Titan Tube AC PowerBox FP1-PB

The Astera Titan AC Power Box allows you to connect with cables up to (10) Titan Tubes to AC power and DMX lighting control. The PowerBox can be stored inside the Titan Tube Charging case so you can charge your tubes after a job inside the case without having to remove tubes or PowerBox.

Specs

• Power Input: Powercon True1 In / Out
• DMX: 5 Pin In / Out
• RJ 45: input for Art-Net and sACN and converts the signals to DMX
• Maximum Cable Length: 15m
• Mounting: 3/8" thread and holes for safety cables

AC power and DMX data can be connected to the Titan Tube via Astera’s PowerBox (FP1- PWB) and Astera’s power/data combination cable (FP1-PWB-CAB). That way, the tubes can be wired for a longer show or permanent installation. The PowerBox contains Neutrik True1 Powercon in and out sockets and 5-pin XLR in and out sockets so that several PowerBoxes can be daisy chained. In addition, data can also be applied to the PowerBox via its RJ45 Ethernet socket which accepts Art-Net DHCP, 2.X and 10.X as well as sACN. Its operation is explained in the next chapter. The PowerBox has 10 DC sockets to wire 10 TitanTubes via power/data combination cables (sold separately, item code: FP1‐PWB‐CAB‐5, -10. -15). 10 output means that a whole DMX universe of tubes can be connected (10 tubes x 16 pixels x 3 channels).4444

***Cables Not Included***
