PRODUCT DESCRIPTION

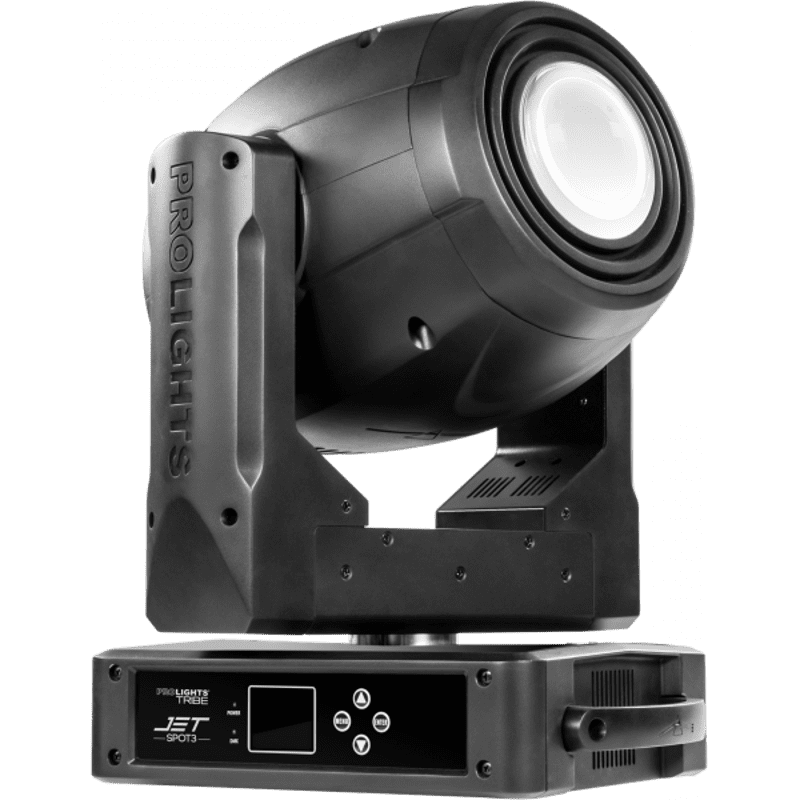

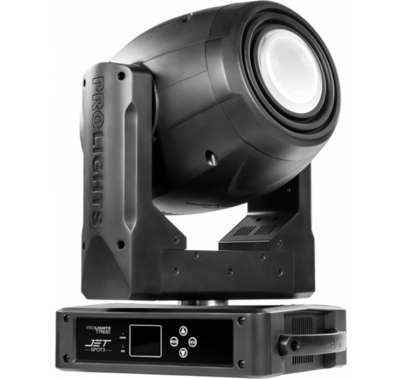

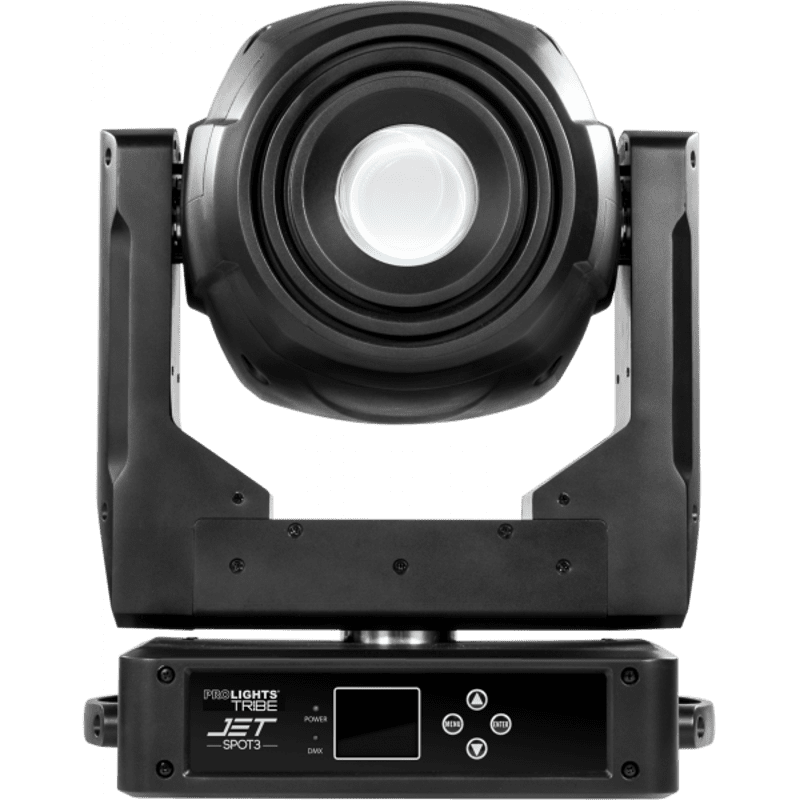

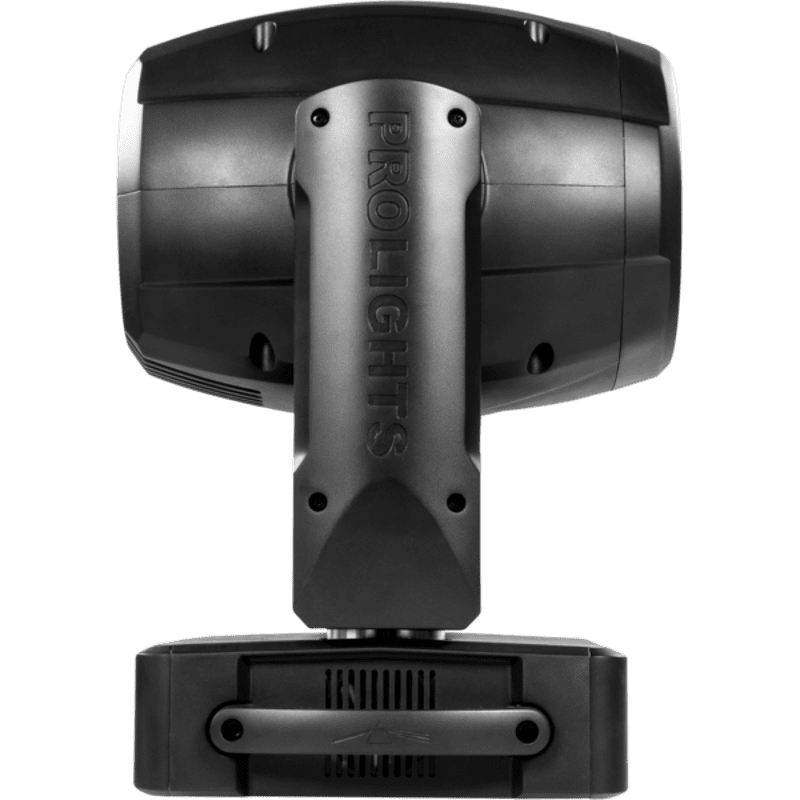

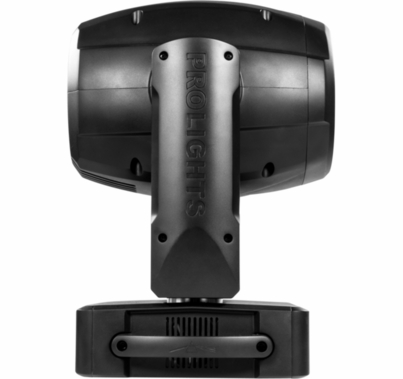

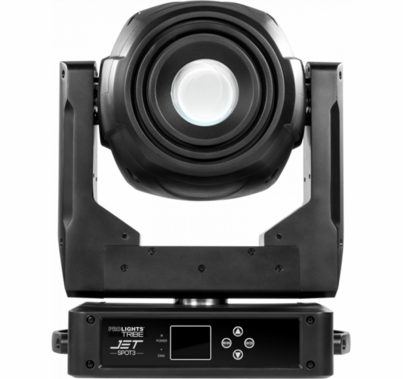

ProLights Jetspot3 LED Moving Spot, 2 Color / 2 Gobo Wheels, Prism, TRUE1, 5-pin In/Out
JETSPOT3 is an LED spot luminaire designed to deliver a stunning light level for its size and price. Ideal both for installation and for rental, the JETSPOT3 focusses on maximising the light output from its LED source to deliver a crisp, even beam from a compact size.
Features:
- Ultra-efficient 240W 7000K white LED source
- Fixed 20° beam angle
- Extensive effects including 2 colour wheels, rotating gobo wheel, static gobo wheel, prism, linear frost, iris and focus
Light Source
- Source: 240W high-power white LED
- CT: 7500K
- CRI: 78
- Luminous flux: 10799lm
- Lux: 8099lux @3m
- Lux: 729lux @10m
- Source life expectancy: >30.000 h
Optics
- Beam angle: 20°
- Lens diameter: 74mm / 2.91''
- Lens type: high-quality glass lens optics
- Focus: motorised
Colour System
- Colour wheel: 2x7 dichroic filters + open
Dynamic Effects
- Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
- Gobo size: gobo Ø 26.9 mm - img vØ 23 mm - 0.3 mm
- Fixed gobos: 8 fixed gobos + open, interchangeable
- Gobo size: gobo Ø 29.8 mm - img vØ 23 mm - 0.3 mm
- Circular prism: 3f with bi-directional rotation, indexing
- Frost: linear 0-100% frost filter
- Iris: 5~100% motorised linear iris
- Auto mode: built-in programs with execution speed adjustment
Body
- Pan angle: 540°
- Tilt angle: 260°
- Pan/Tilt resolution: 16bit
- Feedback: automatic repositioning after accidental movement
- Body: aluminium structure with hi-resistance polycarbonate cover
- Body colour: black
Control
- Protocols: DMX512, RDM
- DMX channels: 17/19channel
- RDM: RDM ready for fixture remote monitor and settings
- Display: black OLED high resolution display
- Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
- Master/Slave: for synchronized operation of more units linked in a chain
Electronics
- Dimmer: linear 0~100% electronic dimmer
- Strobe / shutter: 0~30 Hz, electronic
- Battery backup: battery backup for user operation without connecting to the main power
- Operating temperature: -10° ~ +45°
- Flicker: flicker free operation
Electrical
- Power supply: 100-240V – 50/60Hz
- Power consumption (at 230V): 316W
- Power consumption (at 120V): 322W
- Output (at 230V): 11 units on a single power line
- Output (at 120V): 6 units on a single power line
Physical
- Cooling: forced air with low noise fan
- Suspension and fixing: any position with quick-lock omega brackets
- Signal connection: DMX 3p+5p IN/OUT
- Power connection: IN/OUT Neutrik TRUECON
- IP rating: 20
- Dimensions (WxHxD): 344x500x257mm / 13.54''x19.69''x10.12''
- Weight: 17.3kg / 38.14lbs
