PRODUCT DESCRIPTION

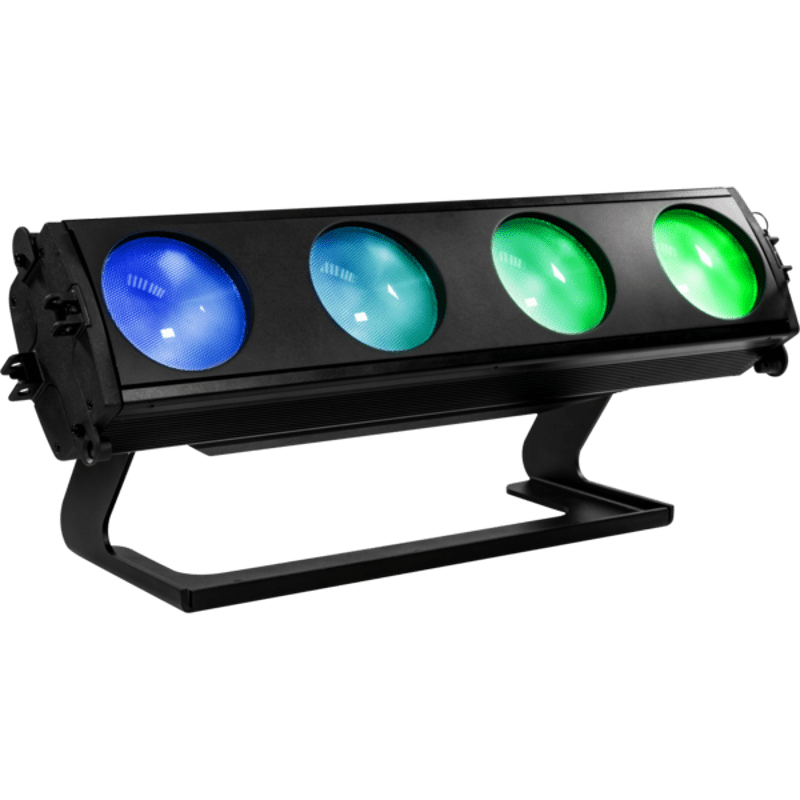

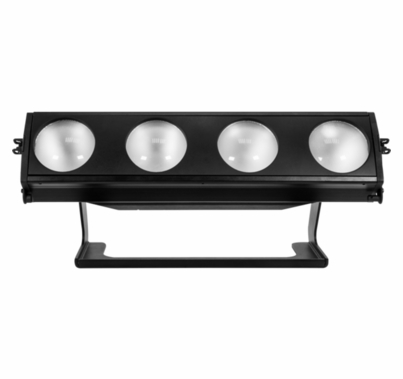

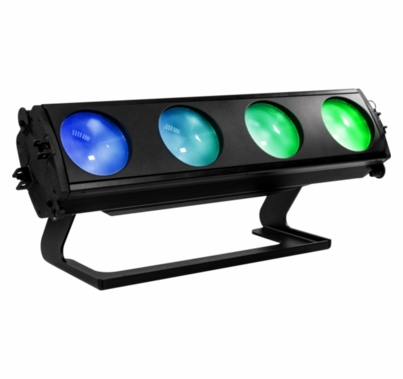

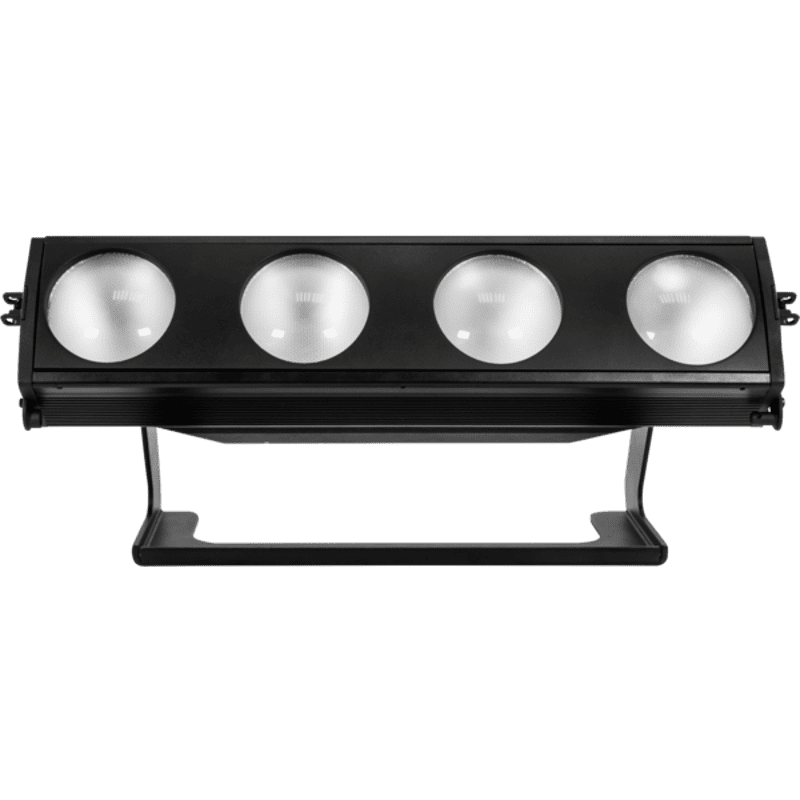

ProLights ArenaCOB 4 Cell, Full Color RGBW LED Blinder, IP65, TRUE1, 5-pin In/Out
ARENACOB4FC is a full colour LED replacement for a traditional 4 cell DWE blinder. Each of the individually controllable 75W RGBW cells deliver a consistent, powerful punch that has been designed to perform in even the largest environments.
Features:
- Four powerful RGBW LED cells with sizing and spacing matching traditional linear blinders
- Individual cell control for effects and amber shift for tungsten emulation

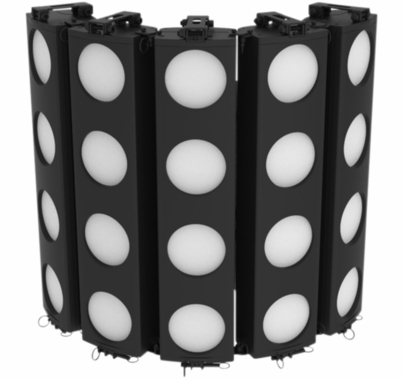

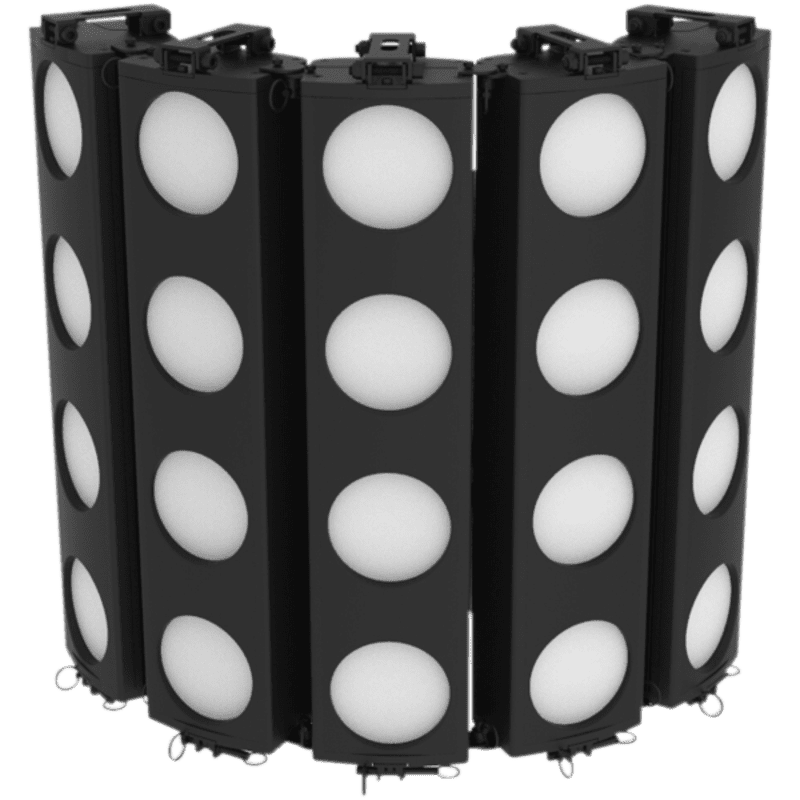

- IP65 housing for the most demanding environments with a virtually limitless 'building block' rigging system
Light Source
- Source: 4x75W RGBW LED
- Luminous flux: (24°) 5393 lm, (40°) 6260lm
- Lux: (24°) 2413lux @3m full
- Lux: (40°) 891lux @3m full
- Source life expectancy: >50.000 h
Optics
- Beam angle: (inc) 24° - (opt) 40°
- Field angle: 46°
- Pixel pitch: 150mm / 5.91''
- Lens diameter: 100mm / 3.94''
- Lens type: dichroic parabolic reflector in combination with HD fresnel lens
- Additional optics: 40°(opt), 32° without magnetic lens
- Other: Magnetic replacement of front lens
Colour System
- Colour mixing: RGBW/FC
- CTC: CTC control through independent DMX channel
- White presets: 2000~8000K
- Colour wheel: virtual colour wheel with presets
Dynamic Effects
- Pixel patterns: pre-programmed dynamic and static patterns
- FX generator: adjustable foreground/background colour, index, speed, direction
- Static colour mode: selection of static colour
- Manual colour mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
- Special features: Halo DWE dimming and amber-shift simulation
Body

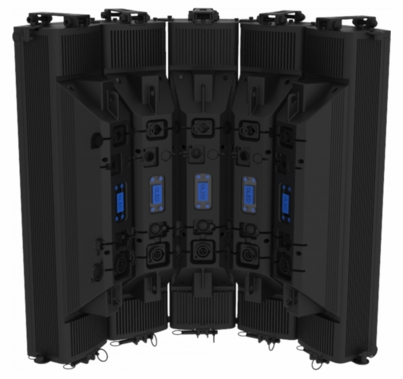

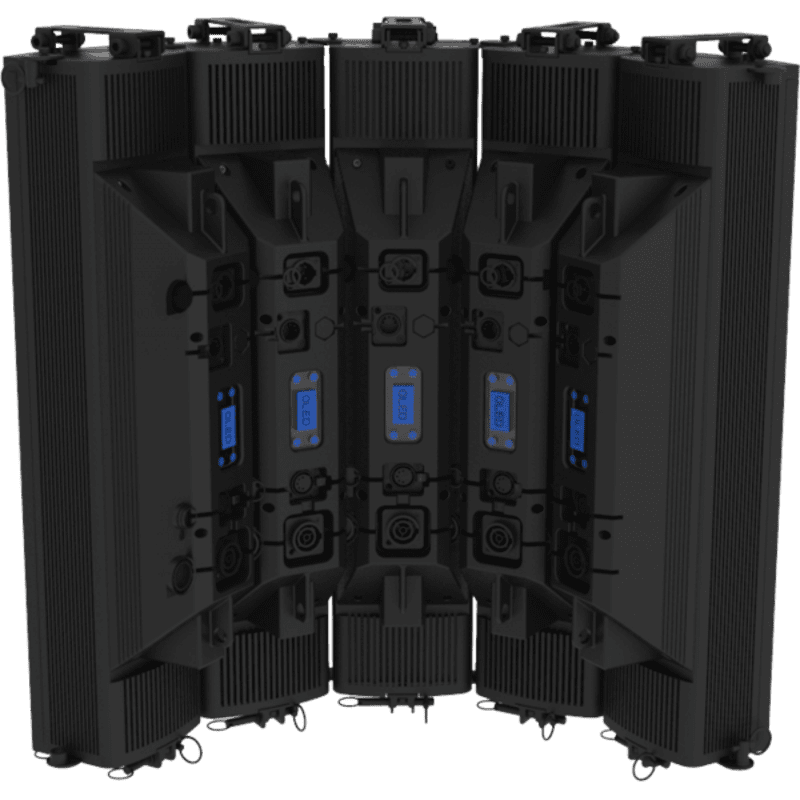

- Hardware on-board: on board mechanics for modular assembly of multiple fixtures
- Body: sturdy die-cast aluminium body conceived for long-time durability
- Body colour: black
Control
- Protocols: DMX512, RDM
- DMX channels: HALO 1/4ch - STD 4/6/15ch - EXT16/21/27channel
- Pixel control: pixel2pixel control
- RDM: RDM ready for fixture remote monitor and settings
- Display: black OLED touch display
- Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
- Master/Slave: for synchronized operation of more units linked in a chain
Electronics
- Dimmer: linear 0~100% electronic dimmer
- Dimmer curves: 4 different dimming curves available
- Strobe / shutter: 1-28 Hz, electronic
- Battery backup: battery backup for user operation without connecting to the main power
- Operating temperature: -20° ~ +45°
- Flicker: flicker free operation
Electrical
- Power supply: 100-240V – 50/60Hz
- Power consumption (at 230V): 227W
- Power consumption (at 120V): 230W
- Output (at 230V): 16 units on a single power line
- Output (at 120V): 8 units on a single power line
Physical
- Cooling: natural cooling of the peculiar chassis and to absence of fans
- Sospension and fixing: hanging bracket suitable for safe hanging and
- positioning
- Signal connection: IP DMX 5p IN/OUT, IP Art-Net Neutrik IN/OUT
- Power connection: IN/OUT Neutrik TRUECON
- IP rating: 65 for temporary outdoor application, not for fixed installation
- Dimensions (WxHxD): 619x167x264mm / 24.37''x6.57''x10.39''
- Weight: 8kg / 17.64lbs
