LynTec XPC Xtend Power Controller

PRODUCT DESCRIPTION

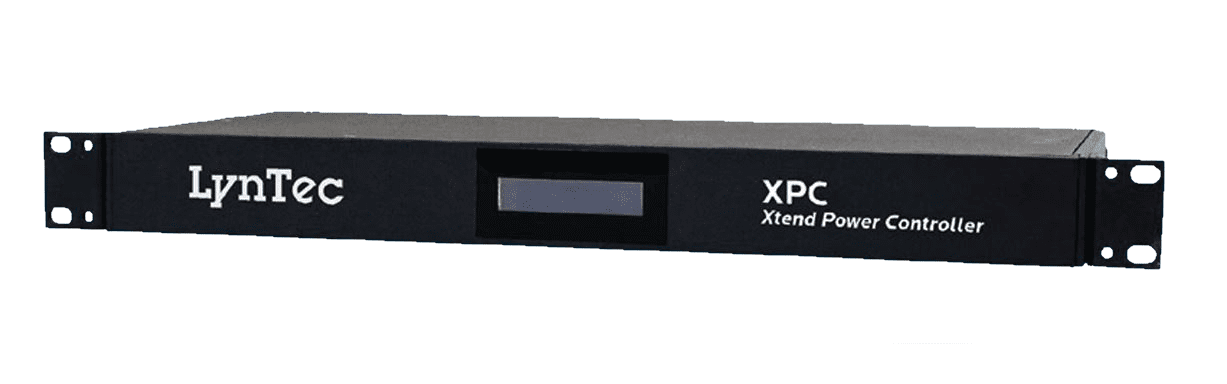

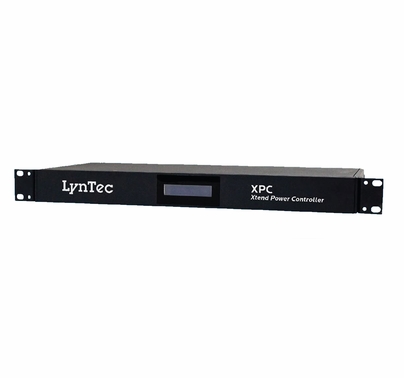

Standalone Rack Controller for XRM Relays and XRS Sequencers

The XPC Standalone Controller offers LynTec’s trusted RPC control solution that previously was only available in LynTec’s RPC series motorized circuit breaker panel, RPCM mobile distro, RPCR wall-mounted relay panel, or NPAC rack-mounted relay panel. Now customers can take advantage of all the capabilities and features of the popular and time-tested RPC controller they’re already familiar with but in a standalone 1RU rack-mounted enclosure.

This eliminates the costs of purchasing preconfigured controllable circuit breakers or relays while providing customers with a way to operate one or more remotely placed relay modules spread out over an extended area or venue. Easy to set up, operate, and maintain, the controller can control lighting and AV systems across multiple control zones and protocols.

The XPC Controller offers customizable step rates and delay settings for sequencing, load shedding at the circuit level for emergency off, auto-on for egress lighting, a built-in timer for automated control, and more. In addition to onboard control options, the XPC controller can interface with any third-party control system that communicates with Telnet, HTTP, DMX512, sACN, or contact closure signals.

Control at Your Fingertips on Internet-Connected Devices Built-in web server with browser interface Set up, control and monitor via smart phone, tablet or computer Interfaces with IP, Telnet, DMX, sACN or contact closure control systems Protect AVL Equipment and Prolong Lifespan Built-in astronomical clock for automated on/off and scheduling 84 events Integrated over- and under-voltage protection for emergency shut down and controlled restart Circuit selectable emergency override input.

This product is a controller only and does not contain circuits. Control signals originate externally from commands received via the communications network or from dry contact inputs. Acceptable communications protocols include HTTP, sACN, DMX-512 and Telnet.

Features

• Required for Systems Without an RPC, RPCR or NPAC Onsite
• Interfaces with IP, Telnet, DMX, sACN or contact closure control systems
• Enable up to 12 zones across the entire system and control each with a different protocol
• Circuit-level sequencing with customizable step-rates from fractions of a second to 999 seconds (reverse off)
• Circuit selectable load shedding and auto-on
• Built-in scheduling program with astronomical clock and up to 84 schedule options

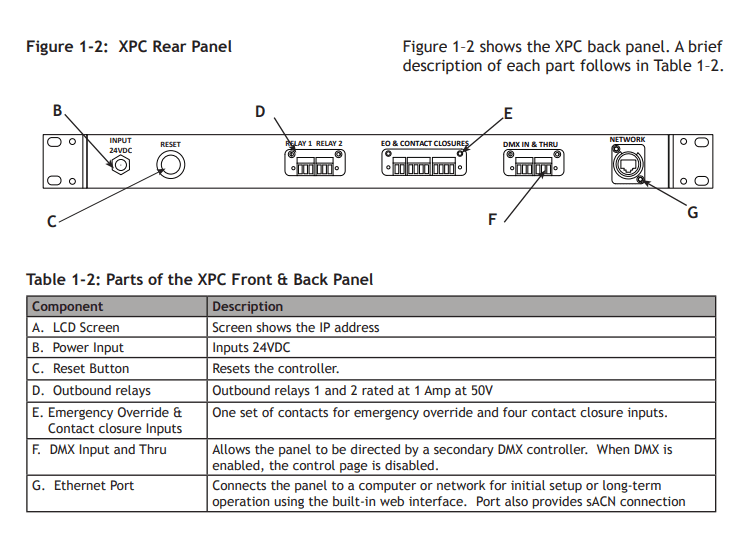

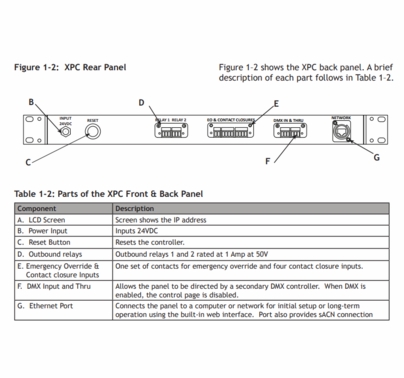

Each XPC comes standard with the following hardware components installed:

• Ethernet input
• DMX In & Thru inputs
• Emergency override input
• Four contact closure inputs
• Two outbound circuit outputs
• 24V power supply

Each XPC comes standard with the following software features:

• Built-in web server with browser interface for super-easy set up.
• Circuit level sequencing with selectable individual steprates (25ms to 999s)
• Smart phone, tablet or laptop control and monitoring built in.
• Built in scheduling program with astronomical clock and 84 schedule events.
• Can be interfaced with any control system that communicates individual circuit addresses in HTTP, Telnet, DMX, sACN or contact closure.
• Circuit selectable load-shedding feature for emergency shutoff

View XPC Controller Manual
