LiteGear LiteMat Plus 3 Hybrid LED Light Kit Gold Mount

PRODUCT DESCRIPTION

LiteGear LiteMat Plus 3 Hybrid LED Light Kit Gold Mount

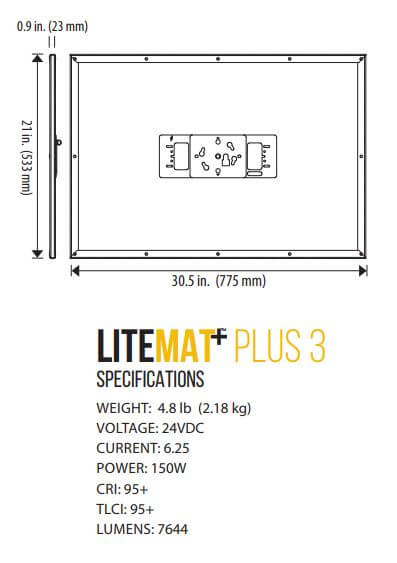

The LiteGear LiteMat Plus 3 Hybrid LED Light Kit Gold Mount provides a soft, controllable LED BiColor light source. Featuring 1728 new Cinemitter LEDs. At less than 1 inch thick and weighing 4.8 lbs, the LiteGear LiteMat Plus 3 is a versatile lighting tool. Use it as a keylight for interviews, a soft top-light fill or a wrapping back light. The perimeter is covered with Velcro for easy attachment of accessories or even attaching to a wall or ceiling. A convenient Kino Flo type twist on mounting plate for use on a baby stand, c-stand or clamp. You will be impressed with the Cinemitter LEDs which are 40% brighter than our VHO Pro emitters. Plus a high CRI of 95+ while providing a color temperature range from 2600K to 6200K.

The Kit includes the LiteDimmer Plus which is a AC/DC power supply and dimmer combined into one unit with a Gold Mount battery plate.

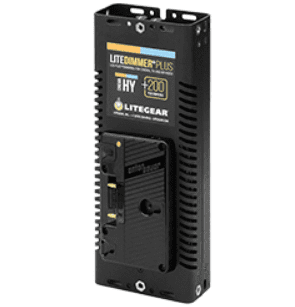

The Kit includes the LiteDimmer Plus which is a AC/DC power supply and dimmer combined into one unit with a Gold Mount battery plate. LiteDimmer PLUS DC200G is the ideal portable companion for powering +Series fixtures. With a focus on DC input power, the 200w unit can be powered using typical Anton/Bauer- or Gold Mount-compatible batteries. Optionally, an external AC powered, 12volt power supply can be used and attached to the battery mount with the optional power supply mounting plate. The LiteDimmer+ plus rugged housing includes several mounting options including four 1/4-20 threads for attaching clamps or brackets.

Kit Includes:

• LiteMat PLUS THREE
• LiteDimmer PLUS DC200G w/250W Power Supply
• Power Mounting Plate
• IEC,12' PL7 Extension
• PolySkirt
• 3pc Diffusion Set
• Louver
• LiteMount
• Kit Bag

LiteDimmer Specs (IMPERIAL/METRIC)

• POWER RATING ................................ 200W
• VOLTAGE INPUT*(BATTERY)......... 14.4VDC Nominal (10~18VDC) Gold Mount
• VOLTAGE INPUT† (EXTERNAL) .... 10~18VDC (PL4 Connector) (Pins 1 and 4 – Neg., Pins 2 and 3 + Pos.)
• VOLTAGE OUTPUT........................... 24VDC Constant Voltage, PWM (PL7 Connector)
• TRIGGER JACK ................................... 2.5 mm TRS
• DIMMING RANGE............................. 0% to 100% Continuous, Flicker-Free
• CONTROLS .........................................
  On-Board “ON-OFF” Switch
  Manual Kelvin Dial
  Manual Dimming Dial
• SOFTWARE INTERFACE .................. Proprietary Connector, Service Center Upgradeable
• MOUNTING ........................................
  (4) 1/4-20 Threaded Inserts
  Drywall Screw Holes
  Velcro®/Cable Tie Slots
  Paracord Lanyard
• AMBIENT TEMP. OPERATION........ –10° to +50° C (14° to 122° F)
• IP RATING............................................ IP20
