Lex 20 Amp Quad Box powerCON TRUE1 Input to Edison, Feed Thru

PRODUCT DESCRIPTION

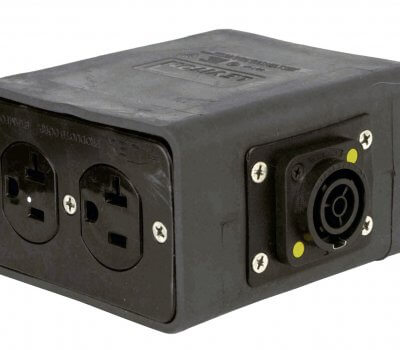

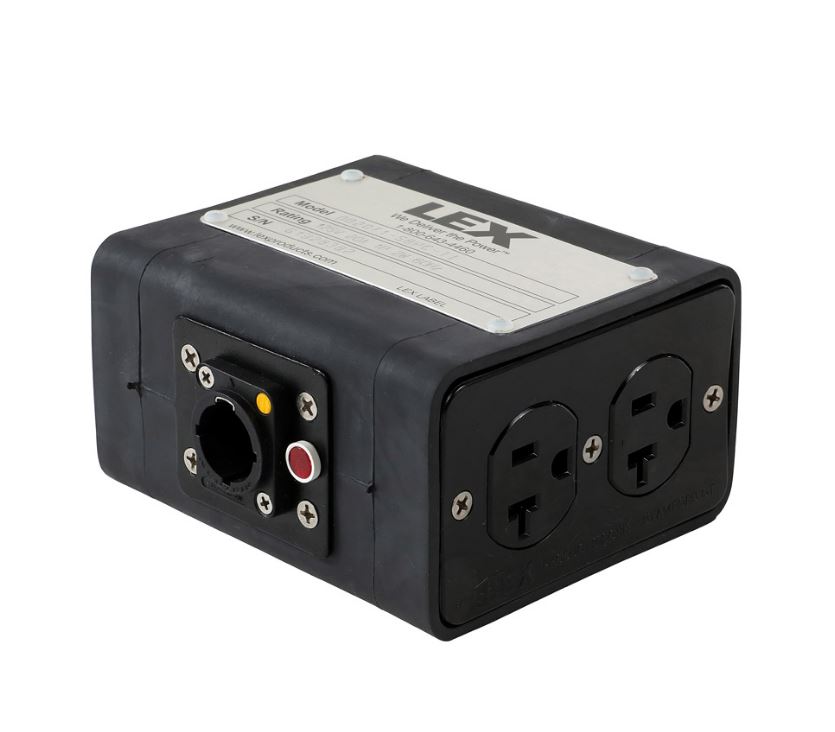

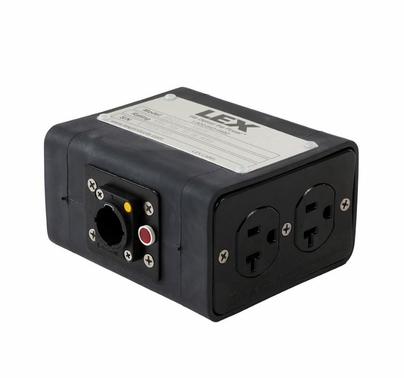

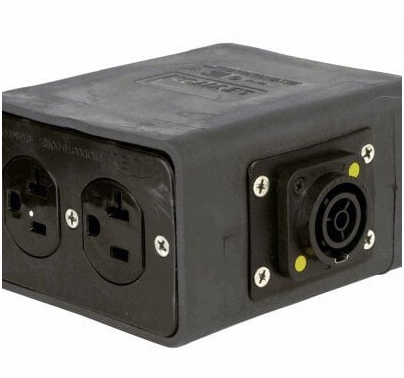

Lex 20 Amp Quad Box powerCON TRUE1 Input to Edison, Feed Thru

The Lex 20 Amp Quad Box powerCON TRUE1 Input to Edison features powerCON True1 connectors which are a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Application

This exceptionally versatile box is used for placing convenient duplex receptacles exactly where they are needed. The box enables the user to create receptacle stringers using powerCON extensions of various lengths.

Specifications

• Rating: 20 Amp, Single Phase (H,N,G), 2 Pole, 3 Wire, 120 VAC
• Environmental Rating: NEMA 1 Indoor
• Input: (1) 20 Amp, 2 Pole, 3 Wire, 120 VAC, powerCON inlet
• Output: (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles
• Feed Thru: (1) 20 Amp, 2 Pole, 3 Wire, 120 VAC, powerCON outlet
• Dimensions: 4.7" L x 2.5" W x 4.2" H
• Approximate Weight: 1.5 lbs

Features & Benefits

• Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, corrosion
• Compact and convenient way to place 20 Amp duplex receptacles where they are needed
• Feed thru option allows multiple boxes to be placed along the same feed

Markets Served

• Convention Centers
• Live Events
• Concert Touring
• Industrial Maintenance and Repair
