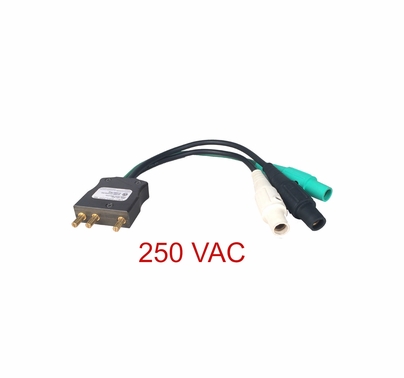

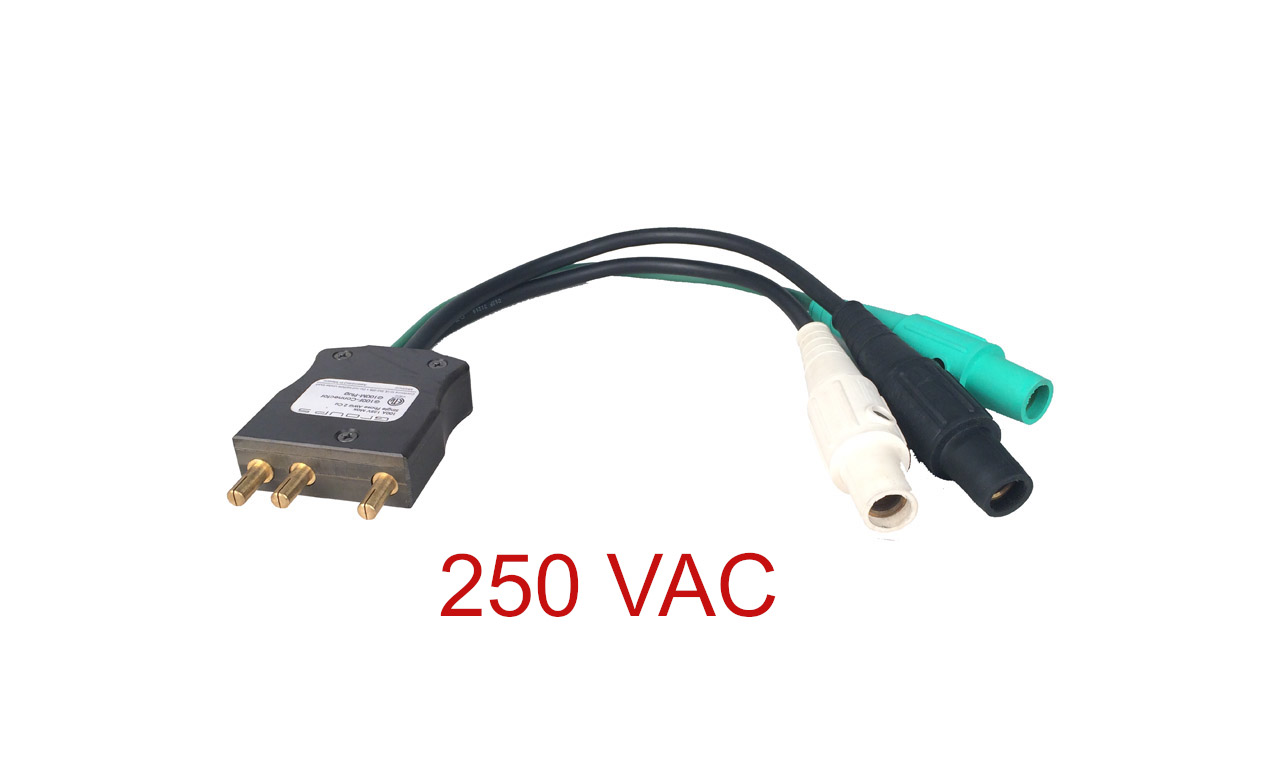

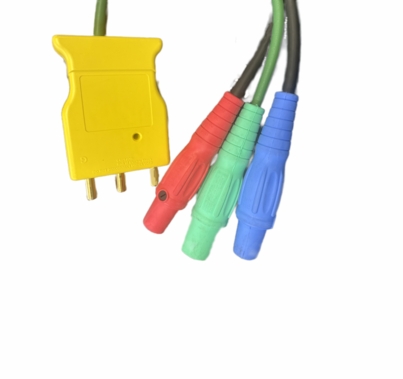

Lex Back Bite Adapter Male Stage Pin 100A 250VAC to Female Cams

PRODUCT DESCRIPTION

Lex Back Bite Adapter Male Stage Pin 100A 250VAC to Female Cams

Features & Benefits

-
• -Stage pin connectors machined from high temperature phenolic material
• Double set screw terminals for secure terminations

Technical Information

• Rating: 100 Amp, Single-phase (H,H,G), 2-pole, 3-wire, 250 VAC, 60 Hz
• Male Plug: (1) Marinco Stage Pin (Bates), 100 Amp, 2-pole, 3-wire, 250 VAC inlet, inline cylindrical contact device, yellow
• Cable/Cord: (3) #2 Type SC Black Cable
• Length: 2.0'
• Female Connector: (3) 16 Series, 400 Amp, single pole, single wire, 600 VAC, inline locking cam-type device, color-coded; black, red, green
• Weight: 7.0 lbs
