Arri SkyPanel S360-C LED Light Fixture L0.0016325

SKU: L0-0016325

Availability: Usually ships in 4-6 weeks

Our Price: $17,900.00
Price: $17,900.00 You Save: $0.00 (0%)
Quantity:
Free Shipping
Have a Question? Need Expert Advice?
Give Us a Call 1-888-276-3667
PRODUCT DESCRIPTION

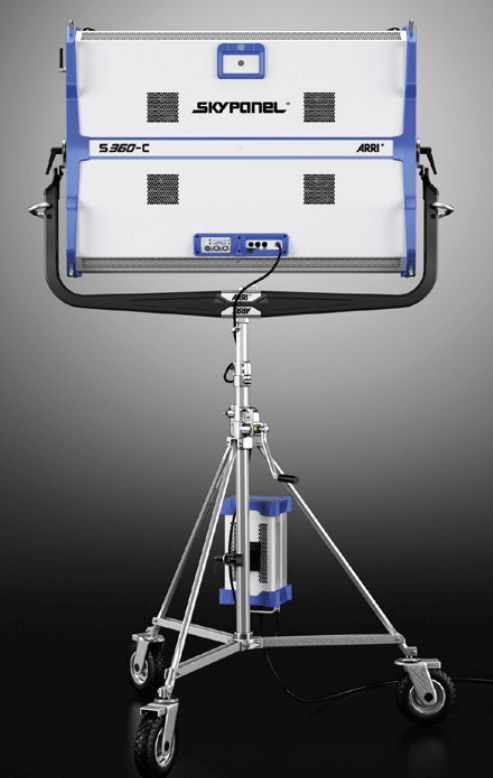

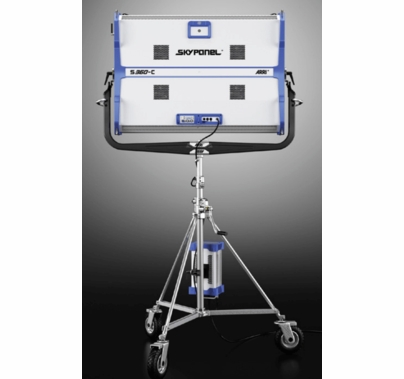

Arri SkyPanel S360-C LED Light Fixture L0.0016325

The Arri SkyPanel S360-C LED Light has raised LED lighting to a new level. German design and engineering has created blazing light output, superior color rendition and a uniform beam field, all in a compact form factor. The S360-C is one of the brightest LED soft lights on the market, providing 80 lumens per watt or 479 foot candles at 9.8ft. That's 4X brighter than an Arri S60-C, 2X as bright as a tungsten 4K soft light and 3X as bright as a 12K space light. Energy efficient, the S360 draws just 1500 watts at 120VAC. The large aperture (50.4" x 34.4"), provides a super soft light source, creating a natural wrapping light. It's like working in front of a large north light window, just beautiful light! The SkyPanel is just 7.3" deep, so it can be tucked in tight spaces on a set. No need for a softbox, but an optional DOP Snapbag is available. Not only is the S360 a powerful soft light, but it is a lighting effects tool as well. The on-board control panel gives you the ability to create Fire, Lightning, Television, Cop Car and Paparazzi effects.



Features

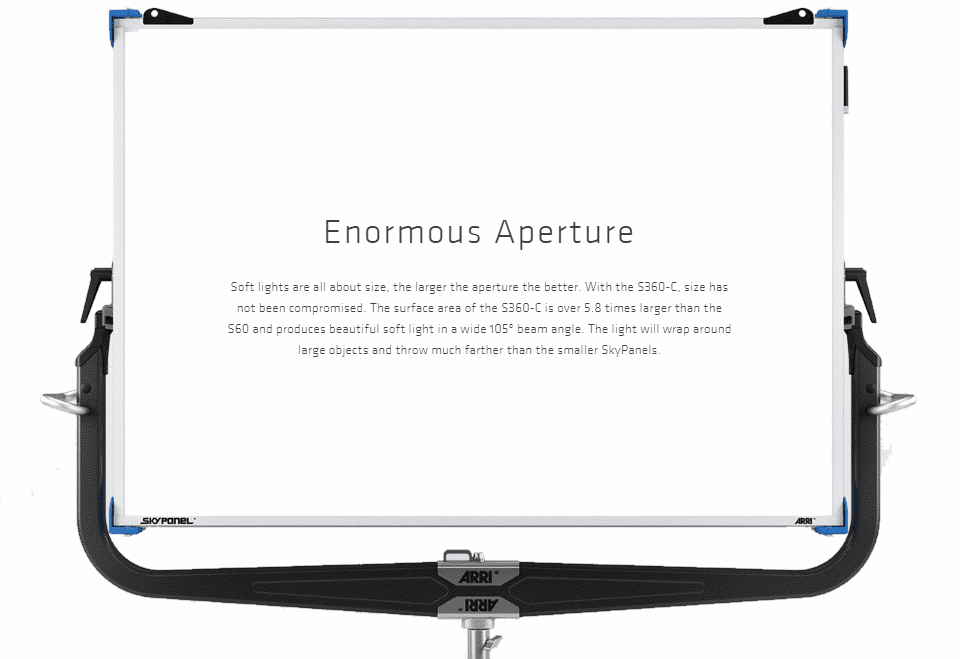

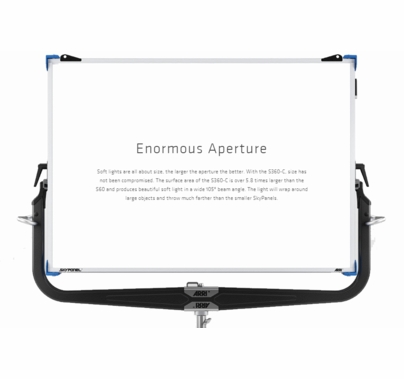

  • Enormous Aperture Soft Light - 50.4" x 34.4"
  • 4X Brighter than Arri S60 Skypanel
  • Draws Just 1500 Watts

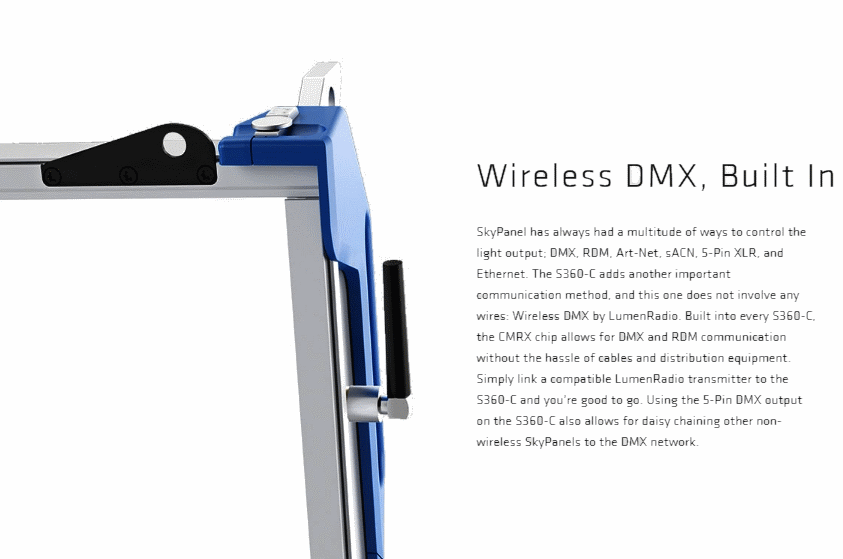

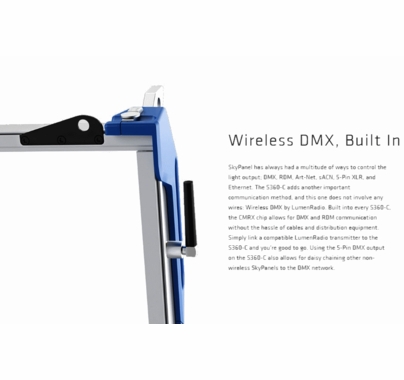

  • Wireless DMX Lumen Radio Built In

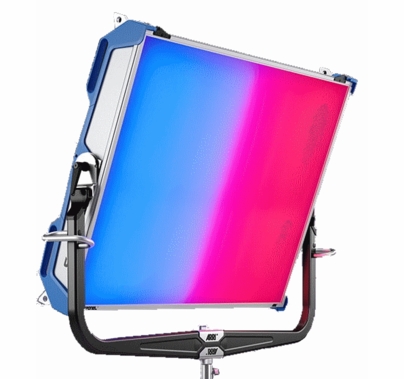

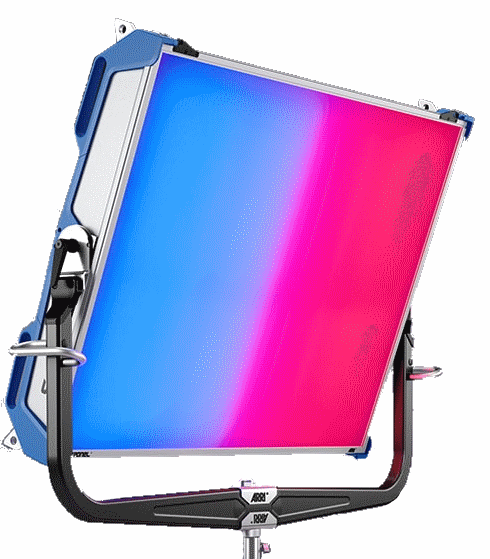

  • Full Color Tuneability - 2,800K -10,000K + Full RGBW
  • Lighting Effects: Fire, Lightning, Television, Cop Car, Paparazzi and more
  • Carbon Fiber Yoke

    arri-skypanel-s360-c-led-light-photometrics

    Arri SkyPanel Kit Includes

    • Arri SkyPanel S360-C LED Fixture
    • Manual & Short Yoke,
    • PSU & Cables
    • Standard, Lite, & Heavy Diffusion
    • Intensifier
    • 30 deg. & 60 deg. Honeycomb
    • Super Clamp Adapter
    • SkyPanel Remote


    Lamphead Specs

    • Optical System Swappable: Soft Diffusion Panels
    • Light Aperture: 1280 x 870 mm / 50.4 x 34.4 "
    • Beam Angle 105 deg. (Half Peak Angle)
    • Weight Manual Version: 41 kg / 90.4 lbs
    • Handling: Carbon Fiber Yoke, Dual High-Strength Tilt Lock
    • Mounting: 28 mm Spigot (Junior Pin)
    • Tilt Angle: +/- 90 deg.
    • Lamphead Voltage Input: 54 V DC
    • Power Consumption: 1,500 W Nominal, 1,600 W Maximum
    • White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
    • Colored Light: Full RBG+W color gamut with Hue and Saturation control
    • Color Temperature Tolerance : +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
    • Color Rendition: CRI Average > 95 TLCI Average > 90
    • Green-Magenta Adjustment: continuously adjustable (Full Minusgreen to Full Plusgreen)
    • Dimming: 0 to 100 % continuous
    • Control: On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
    • Wireless Control: LumenRadio CRMX (DMX & RDM)
    • Remote Device Management: (RDM) DMX Setup, Hour Counter and Standard RDM commands
    • Software Interface: Ethernet: DMX Setup, Fixture Status & Control, and Firmware Upgrade through PC or Mac USB-A: Software Upgrade via flash drive
    • Housing Color: Blue/Silver
    • Ambient Temperature Operation: -20 to +45 deg. C (-4 to +113 deg. F)
    • Protection Class / IP Rating: I / IP20
    • Estimated LED Lifetime (L70): 50,000 hours Estimated Color Shift Over Lifetime (CCT) +/- 5 %
    • Certifications (pending) CE, CB, ENEC, cNRTLus, FCC, PSE


    Power Supply Specs

    • Power Supply Input Range: 90 to 260 V ~, 50/60 Hz
    • Power Supply Output Range: 54 V DC
    • Power Input Connection: powerCON 32A (Schuko / Edison / China / Japan / Bare Ends cables available)
    • Power Output Connection: Female 4-Pin Metal Locking - 30 Amp
    • Weight 10.7 kg / 23.6 lbs
    • Dimensions 540 x 240 x 210 mm / 21.3 x 9.5 x 8.3"
    • Control: On-Board On / Off Switch
    • Mounting: SkyPanel PSU Super Clamp Adapter
    • Certifications: (pending) CE, CB, ENEC, cNRTLus, PSE
