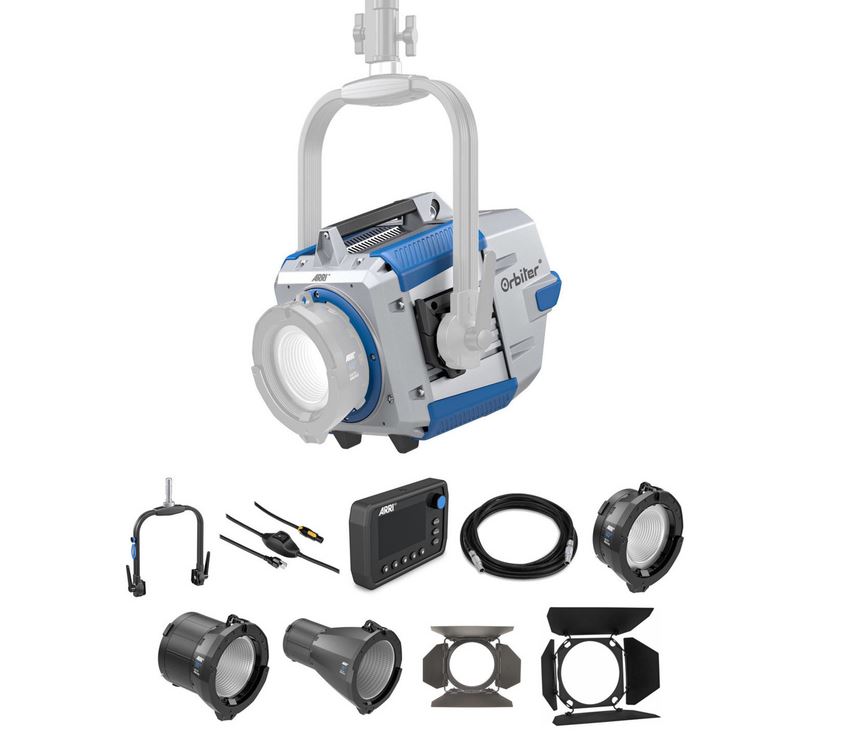

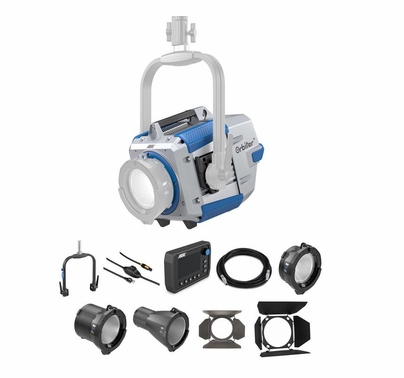

ARRI Orbiter Combination Set provides an expansive kit that allows you to utilize the full capability of this impressive light source. The set includes the Orbiter fixture with a manual yoke plus 15, 30, and 60° lenses. Also included is a control panel with a 16.4' remote cord, a power cord with switch, and two sets of 4-way barndoors. A hard, wheeled case stores and transports the light and accessories, and a soft-sided bag is provided for the lenses.
ARRI Orbiter LED Light with Open Face without Lens, Yoke & Cable (Blue/Silver) Launch a wide spectrum of brightness and color into your studio with the blue/silver-finished ARRI Orbiter LED Light without Yoke, Lens, and Cable, a tunable color light system with a powerful color engine and versatile, changeable optics. Sporting a processor four times faster than the SkyPanel, ARRI's 190-LED Spectra system features a wide range of color features allowing you to create an enormous range of colors with its six-color light engine including red, green, blue, amber, cyan, and lime LEDs. Featuring a high CRI of 98 and a TLCI of 95, it offers a 2000 to 20,000K color temperature range to match just about any lighting situation, and it also features 100 to 0% dimming with smooth, continuous adjustment. The light also features multiple sensors, including a smart color sensor mode to sense the surrounding light and adjust its output for fine color accuracy, a 3-axis accelerometer that senses pan, tilt, and roll movements, an ambient light sensor to keep your display readable, heat sensors to keep the light cool, and even a magnetometer to orient your light within its geography.
The Orbiter features a highly portable design that can change its optics with a breeze using ARRI's Quick Lighting Mount (QLM), a bayonet-style connection similar to a camera lens mount. Available optics include 15, 30, and 60° open-face optics that produce a directional beam; 15, 25, and 35° projection optics that produce a sharp, focused beam with evenly distributed color; and small, medium, and large domes that provide a large area of soft light. The light can also be used with separately available light banks, barndoors, honeycombs, and other light-shaping accessories with the appropriate adapter.
Using ARRI's Lighting Operating System (LiOS), you can control all color modes, effects, and lighting grids right from the built-in control panel. LiOS features eight color modes such as CCT, HSO, RGBACL, Gel select, X/Y coordinates, source matching, effects, and a custom mode that allows you to save over 240 favorites which can be applied to a DMX or interface. It also has three operational modes' ”high color rendering, high output, and low noise' ”for your preferred mode performance. Interfaces include 5-pin DMX in and out, two LAN ports, two USB Type-A ports, a USB Type-C port, and an SD slot for future upgrades. It also features a sync input for future applications that will sync with your camera.
The light is weatherproof and can resist dust and water splashes. Its redesigned mounting points secure an optional yoke for positioning with a +/-90° tilt, and the yoke features a standard 1 1/8" Junior pin mounting point.
Orbiter models include an Optic-Free; Small, Medium, and Large Dome; 15, 30, and 60° Open Face; and 15, 25, and 35° Projection versions. ARRI offers a range of open face and projection optics (lens housings), domes, softboxes, snoots, and barndoors. The interchangeable optics quickly and easily attach to the front of the light using the new QLM (quick lighting mount) system, which functions like a giant camera lens mount.
Inside each Orbiter is the Spectra light engine with a processor four times faster than ARRI's SkyPanel series and 125 times the memory, with plenty of room for future function updates. To produce extra-fine full-color tuning, the light engine adds amber, cyan, and lime to the standard red, green, and blue LED colors in its 190-LED array. Capable of creating hard shadows with defined edges, the Orbiter's engine is 76 times smaller than an ARRI L10 Fresnel but has a greater output while drawing the same amount of power.
LiOS (Light Operating System)
Building upon features first introduced with the SkyPanel, ARRI's LiOS system also features a simplified DMX mode, more than 240 presets, optics recognition, optimal performance modes, and multi-language support for worldwide use. Eight different color modes include CCT, HSI, individual color, x/y coordinates, gel, source, matching, and an ambient color sensor.
Full Suite of Sensors
The Orbiter has an integrated suite of sensors with an ambient color sensor that recreates shifts in both color and intensity in your surroundings and features two modes, continuous and momentary. Use the momentary to get an instant measurement of your light levels, or switch to continuous mode to continuously adapt to changing light in an event space, etc. Its 3-axis accelerometer senses the Orbiter's pan, tilt, and roll, and that metadata can be used in future applications for placement optimization and effects production. It also includes a magnetometer that offers true global direction, an ambient light sensor that will automatically dim your control panel display, and a heat sensor that ensures safe operation at any temperature.
The Orbiter has an estimated LED lifetime of 50,000 hours. Its optional yoke mounts onto a Junior pin, and it consumes a nominal 400W and a maximum 500W. It features an aluminum build with +/- 90° quick release yoke, a powerful tilt lock, and manual operation. A full suite of connectors includes DMX in, DMX out, two LAN, one USB Type-A 1.5A, one USB Type-A 0.5A, one USB Type-C 1.5A port, and an SD card slot.
ARRI Manual Yoke with Spigot for Orbiter
The Manual Yoke with Spigot for Orbiter from ARRI replaces the light's pole-operated yoke or provides one for Orbiters purchased without a yoke. Panning and tilting are done manually on the fixture. The yoke has a spigot for mounting onto a stand or clamp.
ARRI Power Cord with Switch for L-Series Fresnels (23')
This 23' long Power Cord with Switch for L-Series Fresnels from ARRI provides mains power to the L5, L7, and L10 series LED fresnel lights. It features a powerCon True 1 connector and a heavy-duty inline power switch.
ARRI Control Panel for Orbiter
The Control Panel for Orbiter from ARRI allows adjustments of the Orbiter's functions such as color balance, special effects, and light intensity. The controller has a 4" full-color display, quick-navigation buttons, and integrated sensors, and can be separated from the fixture and used remotely via an optional 16.4' or 49.2' cable.
ARRI Cable for Orbiter Control Panel (16.4')
Ideal for hanging fixtures or lights mounted on tall stands, this 16.4' ARRI Cable for Orbiter Control Panel connects the removable panel to the light to control its functions.
ARRI Open Face Optic for Orbiter LED Light (60-Degree)
The 60-Degree Open Face Optic for Orbiter LED Light narrows the 80-degree beam spread of the fixture to allow selective lighting or long throw work. Thanks to ARRI's QLM bayonet mounting system, the lenses attach and can be swapped out in a flash.
ARRI Open Face Optic for Orbiter LED Light (30-Degree)
The 30-Degree Open Face Optic for Orbiter LED Light narrows the 80-degree beam spread of the fixture to allow selective lighting or long throw work. Thanks to ARRI's QLM bayonet mounting system, the lenses attach and can be swapped out in a flash.
ARRI Open Face Optic for Orbiter LED Light (15-Degree)
The 15-Degree Open Face Optic for Orbiter LED Light narrows the 80-degree beam spread of the fixture to allow selective lighting or long throw work. Thanks to ARRI's QLM bayonet mounting system, the lenses attach and can be swapped out in a flash.
ARRI 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR
This is an ARRI 4-Leaf Barndoor Set for the 650W Fresnel, 200W HMI, 400W Pocket PAR, and Pocket Lite. Barndoors attach to the front of a light and are used to restrict light from areas of a set. They have either four or eight leaves that can be adjusted. ARRI barndoors are heat resistant and rotatable.
ARRI 4-Leaf Barndoor Set for ST-1, 1.2Kw HMI Fixtures
This is an ARRI 4-Leaf Barndoor Set for the ST-1 Fresnel and 1.2Kw HMI fixtures. Barndoors attach to the front of a light and are used to restrict light from areas of a set. ARRI barndoors are heat resistant and rotatable.
ARRI Hard Case for Orbiter Basic Version plus Control Panel and Cable
Store, transport, and protect your Orbiter Basic Version plus the control panel and cable with this Hard Case from ARRI.
ARRI Soft Bag for Orbiter Open Face Optics
Store, transport, and protect your Orbiter Open Face Optics with this Soft Bag from ARRI.
