PRODUCT DESCRIPTION

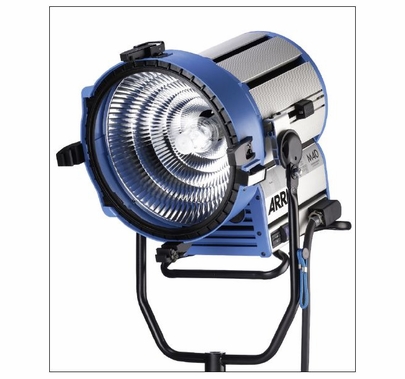

Arri M40 HMI Daylight Head Fixture, L1-37400-B
***Head Only**
Like all members of the M-Series, the M40/25 unifies the advantages of a PAR light and a Fresnel fixture. Due to the unique lerns-less Max Technology, the unit is open face and thus very bright, but also focussable over a range of 18-52° HPA, casting a crisp shadow. The reflector characteristics is optimised for 4000 W lamps, but can also be used with 2500 W lamps.
A member of the ARRI M Series, the M40/25 is a lens-less system that unifies the advantages of a Fresnel and a PAR fixture.
The unit is open face and thus very bright: around 30% brighter than an ARRISUN in spot. Due to its unique, patented MAX Technology reflector, it is also focussable over a range of 18-52° HPA. The M40/25 gives a remarkably even beam spread that casts crisp shadows over the whole focus range. The reflector characteristics is optimised for 4000 W lamps, but can also be used with 2500 W lamps.
The elimination of heavy but fragile spread lenses makes the lamphead ideal for rough location use, speeds up the work flow and reduces total cost of ownership.
The lamphead is equipped with a CCL module (compensation for cable loss). When operated with the new ARRI EB 2.5/4 kW with CCL, full power is maintained all the way to the lamp even when very long cables are used. This means uniformly high light output independent from cable length.
Features:
- Lens-less MAX Technology: Easy to use.
- Around 30% brighter than ARRISUN 40/25.
- Same size as ARRISUN 40/25 but over 3kg lighter.
- Compensation for Cable Loss (CCL).
- Tubular steel yoke.
- Two disk brakes with steel handle.
- Cross Cooling allows safe operation at extreme tilt angles.
- Weather resistant IP23 rating, withstands even driven rain.
In Box:
- (1) M40 HMI Head (46 lbs)
***HMI Lamp / Bulb NOT Included***
