Aadyntech Punch Plus LED Variable Color Temp

SKU: PCH-VAR-004

Availability: Usually leaves warehouse in 2-4 business days

Our Price: $5,910.00
Price: $6,565.00 You Save: $655.00 (10%)
Quantity:
Free Shipping
Have a Question? Need Expert Advice?
Give Us a Call 888-276-3667
PRODUCT DESCRIPTION

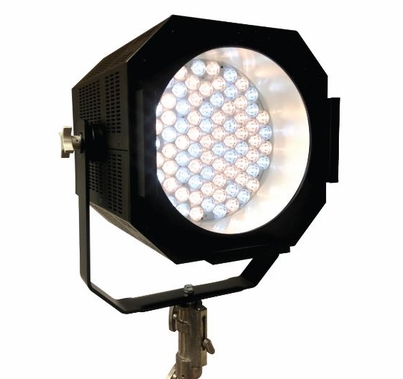

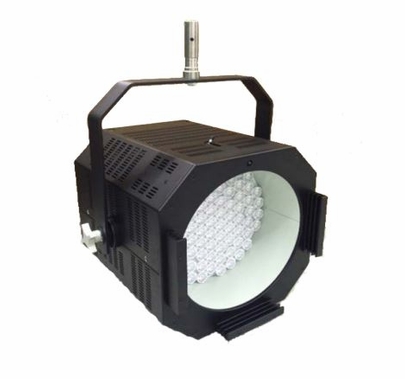

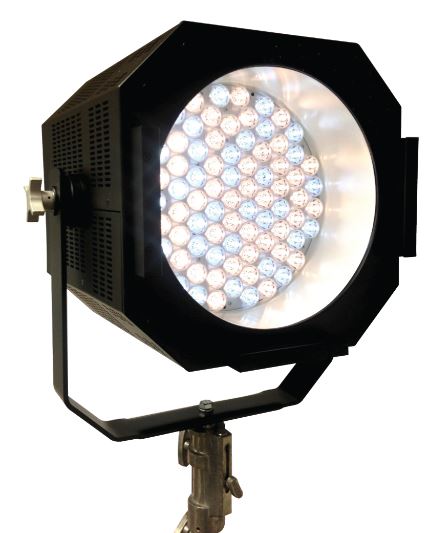

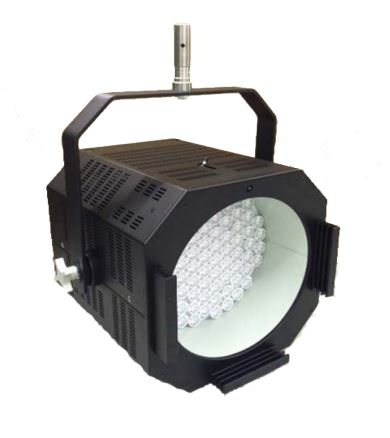

Aadyntech Punch Plus LED Variable Color Temp

The Punch Variable has an adjustable color temperature range of 2,800°K to 6,000°K and develops an output of 6,732 fc @ 10 feet. Most remarkable is the Punch Variable draws only 4.78 amps of power at full output. Like all AAdynTech fixtures, the Variable generates no heat or harmful UV or IR emissions, is self-contained with an auto-ranging universal power supply requiring no ballast, head cables or lamps, and instant ON ensures no warm-up wait time on set.

When any of our lenses are used, optical efficiency provides a single light source eliminating multiple shadows. The Variable comes equipped with four quick change lenses to vary the beam angle for spot, medium or flood while maintaining a flat, even field of light. There are several control possibilities with the Variable; built in User Interface Module (UIM) with Kelvin temperature display, DMX with DMX loopthru, or via the optional corded UIM Controller with Kelvin temperature display. A heavy-duty yoke is provided. When your production requires precise color temperature control and powerful, reliable even lighting; the Punch variable by AAdynTech has no peer.



Includes



Features,/h3>
  • Adjustable color temperature range of 2,800°K to 6,000°K
  • 6,732 foot candle output @ 10 feet
  • 5600K CCT
  • Draws only 4.8 amps at full output
  • Auto range voltage – 100/277 VAC – 50/60Hz
  • Up to 90% energy savings
  • Precise brightness control w/ variable dimming curve
  • Single light source eliminates multiple shadows
  • No heat generation – operates cool to the touch
  • Douse button (momentary off)
  • Included 5°, 15°, 30°, 55° lenses to vary beam angle
  • No head cables, ballast or spare lamps

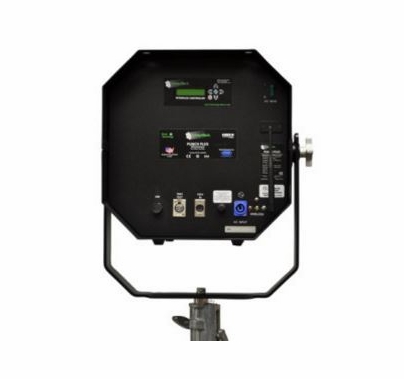

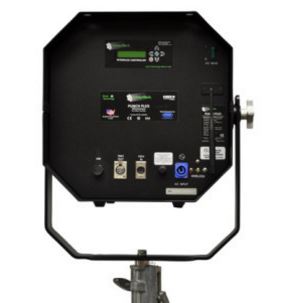

  • Built-in digital User Interface Module (UIM) control
  • Recalibration countdown hour ‘smart’ meter
  • Full DMX control w/ DMX loop-thru
  • 5-pin XLR DMX In/Out & PowerCon AC Cable
  • Programmable multiple lightning and strobe effects
  • Multiple user memory storage with recall
  • 2 year warranty on fixture
  • Operating temperature at -20c to +50c
  • Certified UL, ETL, CSA, CE & RoHS compliant
  • Wireless DMX/RDM control


Highlights



Specs



Dimensions

  • Length: 431.4 mm 17.0 in.
  • Width: 468.9 mm 18.5 in.
  • Height: 515.5 mm 20.3 in.
  • Weight: 22 kg 48.4 lbs


Power

  • Input Voltage: 100-277 Vac
  • Input Freq: 50/60 Hz
  • Input Current: 4.87 Amp @ 120V 584.4 W @ full
  • Connection: PowerCon Twist, Lock connector
