Lex Power Plus Wall Pocket with (4) 20A Edison 5-20 Receptacles, PPW-4-DADescription:
20 Amp, 120 VAC, Single Phase, 2 Pole, 3 Wire in-wall mounted receptacle box with hinged cover and (4) 20A Edison 5-20 Receptacles.
Input connections are made to a molded barrier terminal strip. The outlet box is designed to be mounted in a wall.Application:
Wall pocket outlet boxes are often used backstage, or in studios as a power source for floor level lighting. Other locations may include catwalks, and lighting control booths.Markets Served:
- Motion Picture and Television Production
- Convention Centers
- Houses of Worship
- Rating: 20 Amp, 1 Phase, 2 Pole, 3 Wire, 120 VAC
- Environmental Rating: NEMA Type 1 Indoor
- Input: Molded barrier terminal strip
- Output: (4) 20A Edison 5-20 Receptacle Flushs.
- Enclosure: 16 gauge steel back box
- Finish: Matte black powder coat
Enclosure Size: 12" x 8" X 4"Agency Approvals:

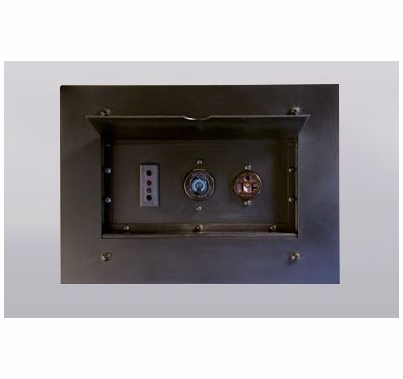

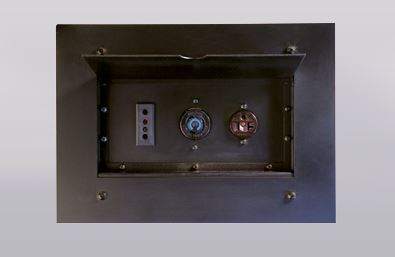

UL and cUL Listed - Approved for use in the U.S. and Canada**Photo NOT Exact Model Shown, for reference only**
Lex Power Plus Wall Pocket with (4) 20A Edison 5-20 Receptacles, PPW-4-DA
