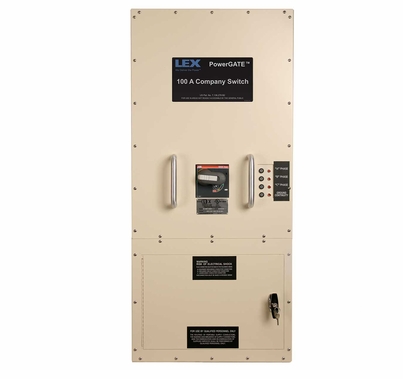

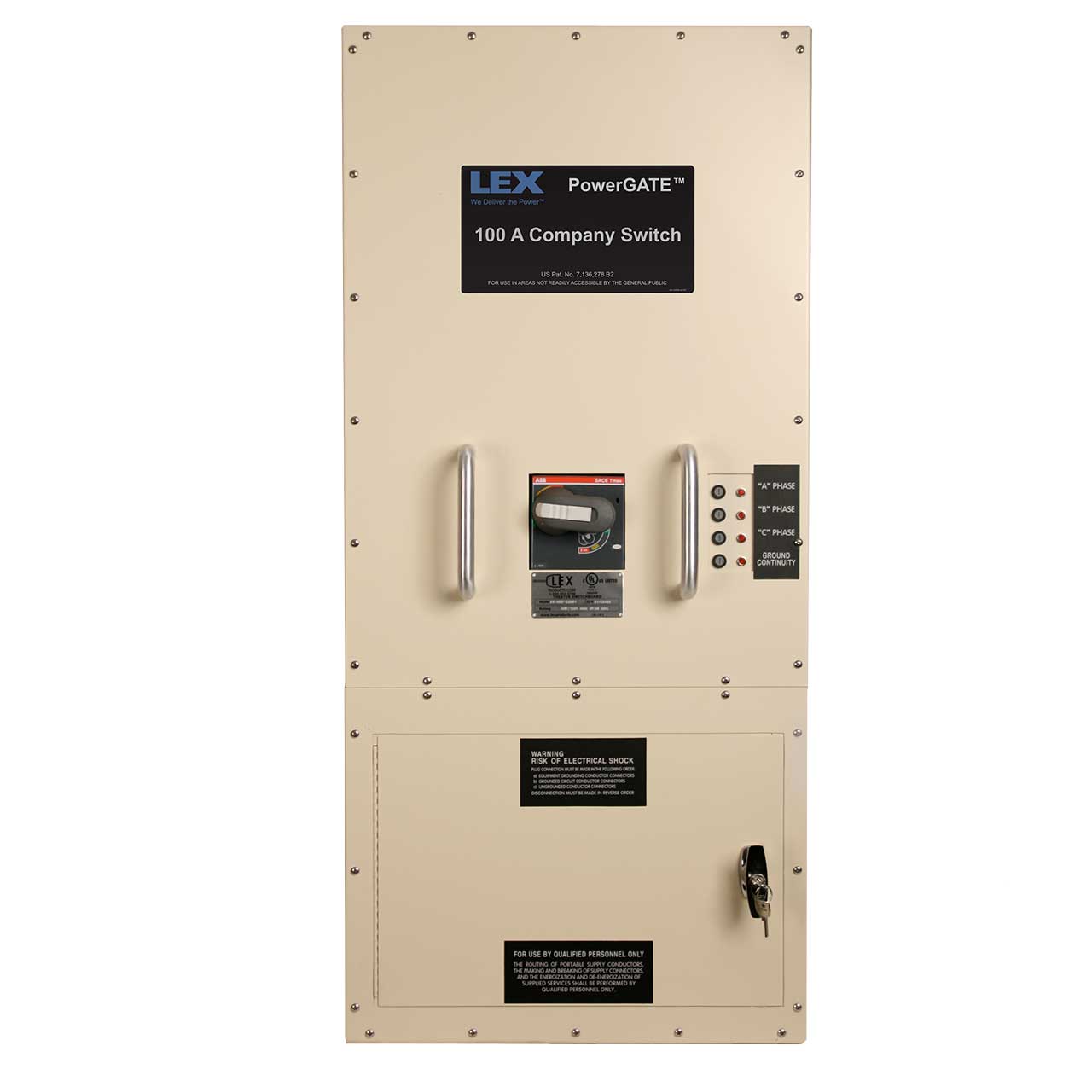

Lex 100 Amp 5 Wire Company Switch IEC60309 Pin & Sleeve Connection NEMA 1

PRODUCT DESCRIPTION

Lex 100 Amp 5 Wire Company Switch IEC60309 Pin & Sleeve Connection NEMA | CS-100F-D5PS1

Features & Benefits

• The Lex Products PowerGATE Company Switch provides access to relatively high amounts of electrical power, typically 60 Amps and above, in applications where the equipment utilized changes on a regular basis, such as theaters, studios, convention centers and arenas
• Company Switches have become the preferred type of product for applications of this nature due to safety and convenience benefits
• PowerGATE™ Company Switch design features both IEC 60309 pin & sleeve and lugs in one compact, connection chamber for ultimate flexibility
• Features an electronic trip circuit breaker that is 100% rated, enabling continuous operation at maximum capacity
• Circuit breaker rated at 65,000 AIC (Amps Interrupting Capacity) to exceed requirements for installed dimmers
• Outputs are behind an access door, helping to eliminate accidental disconnection, unauthorized access and/or tampering with connections
• Unique arrangements of both pin & sleeve and lug terminations enables both sets of cable to drape downward for lower profile when mounted against a wall
• For enhanced safety, the access door to pin & sleeve and lug connections is interlocked to the main breaker, which means the breaker cannot be turned on unless the access door is closed
• Power shuts off automatically when the access door is opened, eliminating the ability to make or break a connection under load
• Circuit breaker allows for lockout/tagout to restrict access as needed
• Features a durable IEC 60309 pin & sleeve receptacle built to an international configuration standard
• IEC 60309 pin & sleeve receptacle does not require qualified personnel for installation
• The chassis ground can be isolated from the main ground for sensitive audio applications
• An integral LED worklight is provided in the connection chamber for ease of connection and enhanced safety

Markets Served

• Theaters, Convention Centers, Studios, Theme Parks, Recreational Facilities

Technical Information

• Rating: 100 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC
• Environmental Rating: NEMA Type 1 (Indoor Use)
• Input: (1) set of (6) compression terminals (H,H,H,N,N,G), wire range: 350 kcmil - 6 AWG, 600V, panel mount
• Output: (1) 5100R9W, 100 Amp, 4-Pole, 5-Wire, 120/208Y VAC, IEC60309 pin and sleeve receptacle, panel mount; (1) set of (5) compression terminals, wire range: 500 kcmil- 4 AWG, 120/208Y VAC, panel mount
• Feed Thru: None
• Overcurrent Protection: (1) 60-150 Amp, three pole, adjustable, electronic, branch-rated circuit breaker
• Enclosure: Company Switch
• Color: Sand

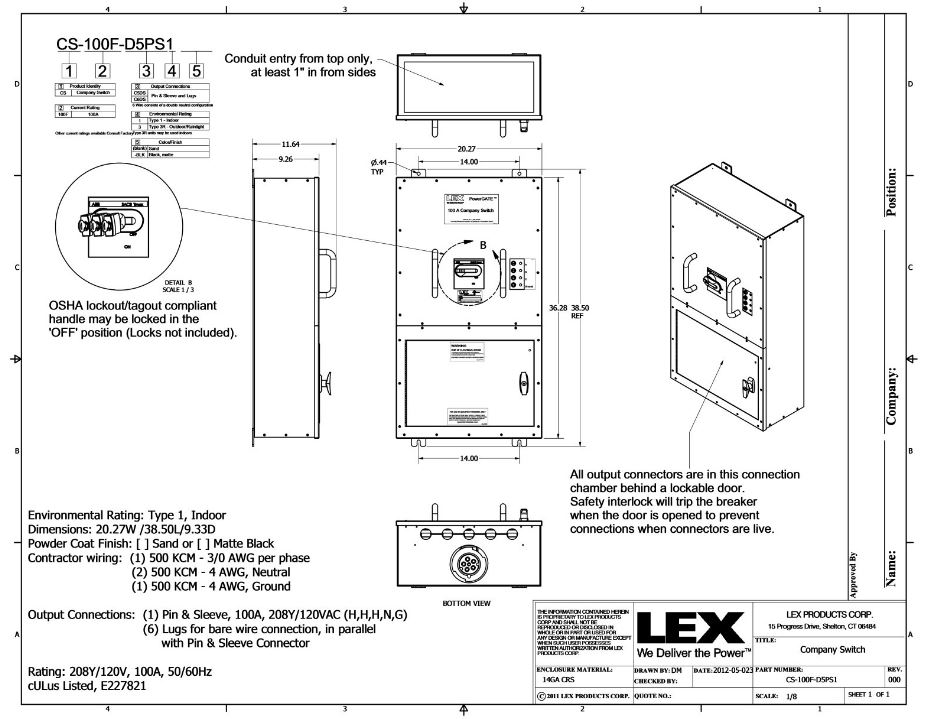

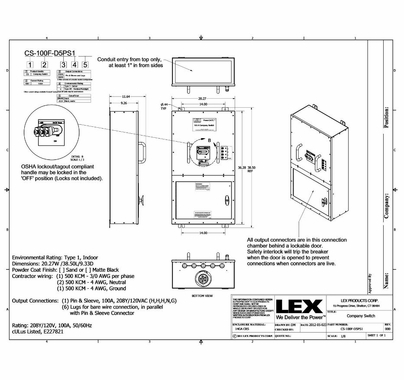

• Overall Dimensions: 11.64"L x 20.27"W x 38.50"H
• Weight: 123.0 lbs
