GAM 99 Heat Shield 20"x24" Sheet
Optically clear thermal insulator.
EXTEND COLOR FILTER LIFE with GAM Heat Shield 99, a clear film that protects color filters (gels) from fading and warping due to prolonged exposure to high heat light sources. It's an effective and economical material that outperforms other products in its class, offering more value and superior protection.
GAM Heat Shield 99 provides a barrier for dispersing heat through airflow over its surface area. It also filters most of the ultraviolet spectrum from the light source, which is most detrimental to color.
UV PROTECTION AND HIGH EFFICIENCY

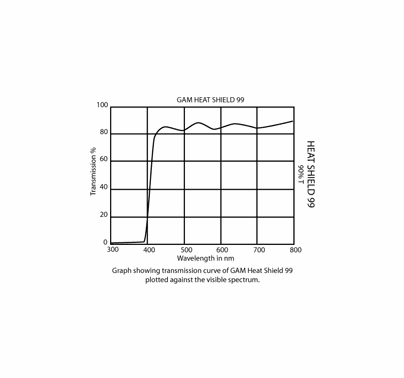

The melting point of GAM Heat Shield 99 is 480Â°F (250Â°C). The chart at left illustrates the percentage of light transmission throughout the visible spectrum at more than 90% with an almost complete elimination of color fading UV.
HOW TO USE GAM HEAT SHIELD 99
Position GAM Heat Shield 99 between the light source and the color filter. Separate the two elements by approximately one inch (2.5cm), allowing air to flow between the two to dissipate heat.
