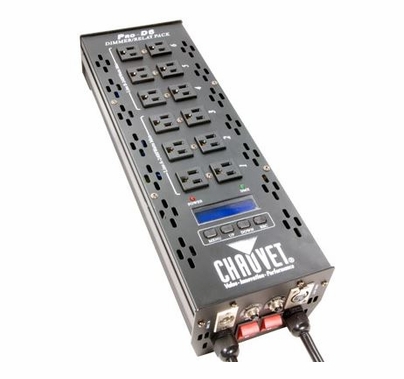

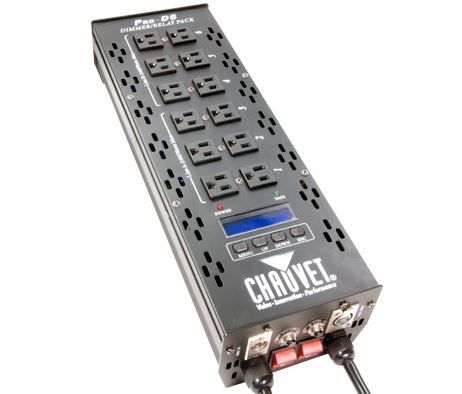

Chauvet Pro-D6 DMX Dimmer Pack

Free UPS Ground Shipping on this Item!

Chauvet Pro-D6 DMX Dimmer Pack

A great, inexpensive DMX Dimmer Pack. A Total of 4600W @ 115V can be dimmed when using 20A male plugs on power cords. Multiple dimmer packs can be added to create a large system by simply daisy chaining dmx cable from one pack to the next.

Don't want to run DMX Cable?? Then check out Chauvet's Wireless DMX Adapter.

***Please Note: A Lighting Control Console (Dimmer Board) is Required to Use this Dimmer Pack***

CONTROL FEATURES


• 6-channel DMX-512 dimmer/switch
• Dimmer curve selection for each channel: square, switch or linear
• Each channel can be set as either dimmer or relay
• Each channel can be set to any DMX address
• Dual 20A power lines (requires 2 separate circuits)
• Individual switch, circuit breaker and plug per line
• Accommodates different voltages per line (simultaneously)

  SPECIFICATIONS


• Output (115V): 15A (1,725W) per channel, 20A (2,300W) max (x2)
• Output (230V): 15A (3,450W) per channel, 20A (4,600W) max (x2)
• AC power: Autoswitching 10V – 240V 50/60Hz
• DMX: 3 Pin Connectors
• Weight: 9.3lbs (4.2kg)
• Size: 18in x 5.8in x 3.8in - 457mm x 147mm x 97mm
