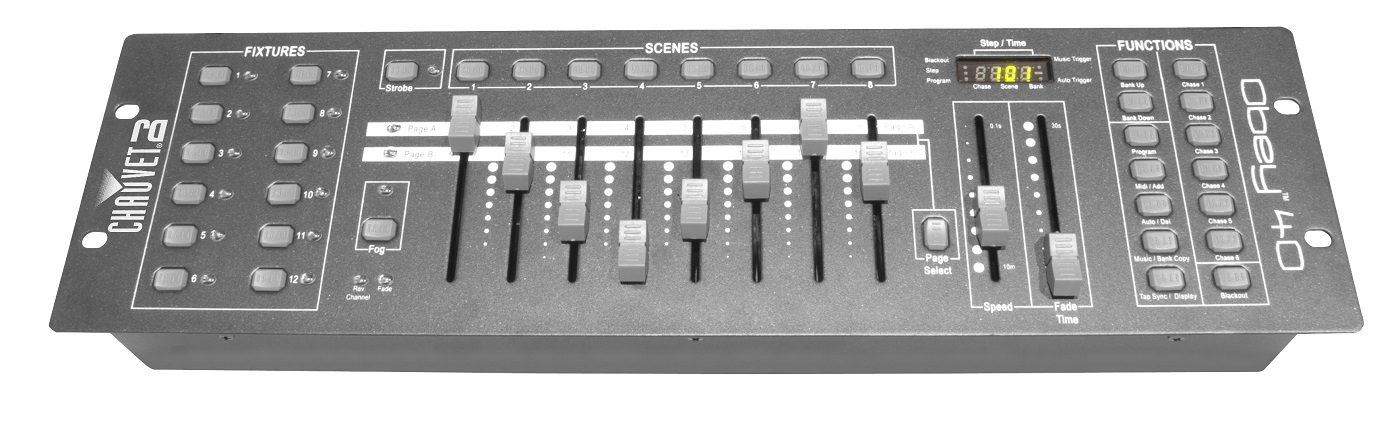

Chauvet DJ Obey 40 Universal DMX 512 Controller

PRODUCT DESCRIPTION

Chauvet DJ Obey 40 Universal DMX 512 Controller

The Obey40 is the next step up from the Obey10, allowing for control of up to 12 fixtures at 16 channels each. With a slightly larger size comes a larger capacity: the Obey40 has 30 banks on 8 scenes, or up to 240 scenes. The Obey40 offers the flexibility of its little brother but also adds fog and strobe control and MIDI compatibility.

CONTROL FEATURES

• Universal DMX-512 controller
• Controls up to 12 intelligent lights of up to 16 channels each
• 30 banks of 8 scenes, 240 scenes max
• 192 DMX channels of control
• 6 sets of chases containing 240 scenes
• Program fade and speed time into each step
• Reversible sliders
• Re-assignable channels
• Sequential linking of chases
• Fog & strobe control buttons
• Grab any fixture on the fly
• Beat activation, tap-sync and auto run
• Polarity selector
• 3-space (3U) rack mount
• MIDI compatible



  SPECIFICATIONS




• DMX Connectors: 3-pin
• Rackmount: 3U
• Input Voltage: 12VDC 500mA (external power supply: 100 - 240VAC 50/60Hz)
• Weight: 5.7lbs (2.6kg)
• Size: 19 x 3.5 x 6.7in (483 x 89 x 171mm)
• Approvals: CE
