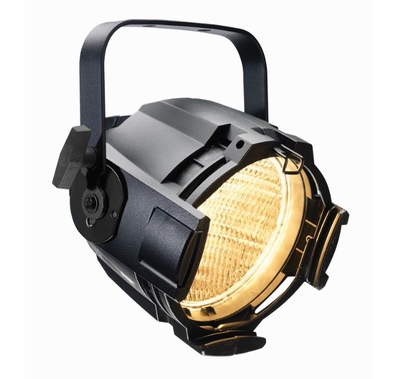

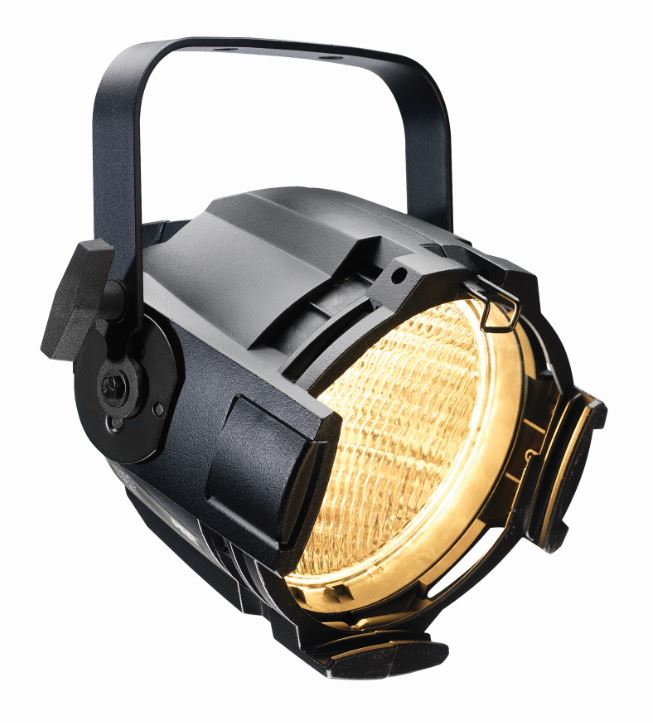

ETC Source Four PAR-MCM Cool Beam Light - ETC Source Four PAR-MCM Cool Beam Light

ETC Source Four PAR-MCM Cool Beam Light

All the power of a PAR plus the cool beam of the Source Four®! This is no ordinary par can. Source Four PARs™ go beyond run-of-the-mill pars with ETC's rugged, die-cast aluminum construction and acclaimed Source Four lighting technology. MCM stands for Metal Cold Mirror. This unique reflector coating ensures that only light, not heat, goes out of the front of the fixture – making the Source Four PAR MCM ideal for orchestra lighting or other performance situations where on-stage comfort is paramount.

Superior brightness and energy savings. Source Four PARs deliver a smooth, even field, and at 575 watts are comparable to 1000W PAR64s - while saving 40% on energy. Plus, changing beam angles is easy: Source Four PARs come with a set of four snap-in lenses that mount in a cool, rotating ring. That also means no more reaching into a hot can with cracked porcelain sockets. And when you need a new lamp, just use your stock of Source Four HPLs (no need to carry a large inventory of expensive PAR64 lamps). The Source Four PAR's compact design means more units can be mounted on a pipe or fit into a truck. Combined with reductions in power and cable requirements, Source Four PARs are perfect for touring.

Product Features:

Rated up to 575W
MCM (Metal Cold Mirror) reflector
Super-efficient HPL lamp
Interchangeable lenses (VNSP, NSP, MFL, WFL)
Optional extra-wide flood lens for short-throw applications
Die-cast faceted reflector
Die-cast aluminum construction
Supports Dimmer Doubling™

ETC Source Four PAR EA are supplied with 4 lens set: VNSP, NSP, MFL, WFL; color frame and 3' (96cm) electrical lead as standard

***Bulb, C-Clamp and Electrical Connector (plug) NOT Included.***

S P E C I F I C A T I O N S:

PHYSICAL

Rugged die-cast aluminum construction
Tool free access to the reflector and lens
High-impact, thermally insulated knobs
Sealed reflector housing
Reflector temperature control through integral heat sink fins
Gel frame holders with two accessory slots
Top-mounted, gel-frame retainer
Steel yoke with two mounting positions
Positive locking yoke clutch
UL and cUL Listed

ELECTRICAL

115-240V, 50/60Hz
High-temperature three-conductor 36” leads in a glass fiber outer sleeve
Supports ETC Dimmer Doubling™ technology

LAMP

HPL – compact tungsten filament contained in a krypton/ xenon-filled quartz envelope (see table for suitable lamp types)
575W maximum
Patented filament geometry makes for extremely efficient light collection and transmission
Integral die-cast aluminum heat sink lamp base

LENSES

Four heat resistant, molded borosilicate glass lenses supplied with each unit: Very Narrow Spot (VNSP), Narrow Spot (NSP), Medium Flood (MFL) and Wide Flood (WFL).
Round beam for VNSP and NSP, oblong beam shape for MFL and WFL
Optional Extra Wide Flood lens (XWFL) also available
Tool free lens changing
Thermally insulated lens ring

OPTICAL

Modified parabolic and multifaceted reflector
Computer designed reflector facets molded directly into heat sink casting, finished with an metal cold mirror, dichroic coating
Cold mirror, dichroic coating removes 90% heat from beam for cooler stage environment
Enhanced Aluminum (EA) also available

Wt: 7.5 lbs
