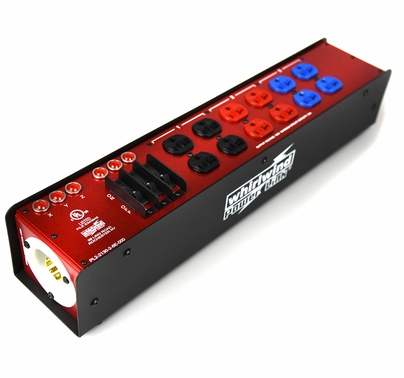

Whirlwind Power Link PL2 Stringer Box L21-30 to (6) Edison Duplex

PRODUCT DESCRIPTION

Whirlwind Power Link PL2 Stringer Box L21-30 to (6) Edison Duplex | Pl2-213026E-000

Each PL2 module converts a multi-phase input into independent branch circuits and also provides a multi-phase output connector so multiple boxes can be linked together. The PL2 series is perfect for distributing power around a stage, trade show kiosks or festival booths. The optional PL2-FB fly bracket allows the PL2 to be mounted to a truss for multi-circuit power distribution to loudspeakers and lighting fixtures. All PL2 modules are UL-listed devices.

Features

• PL2 Stringer
• L2130 inlet and outlet
• (6) 20A duplex outlets
• Neon indicator lamps
• (3) 20A Circuit breakers
• Input Voltage: 120/208Y 3 Phase
• Wiring: 4 Pole / 5 Wire
• Amperage: 30A
• Size: 5"x5"x20"
• Wt; 11 lbs
