PRODUCT DESCRIPTION
ProLights (6)DotQ LED Kit, Battery Powered RGBW, LumenRadio-Six Lights, Charger, IR Remote, ABS Case

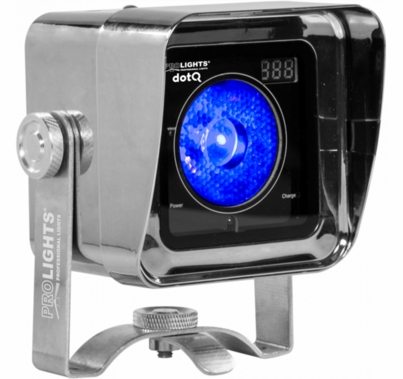

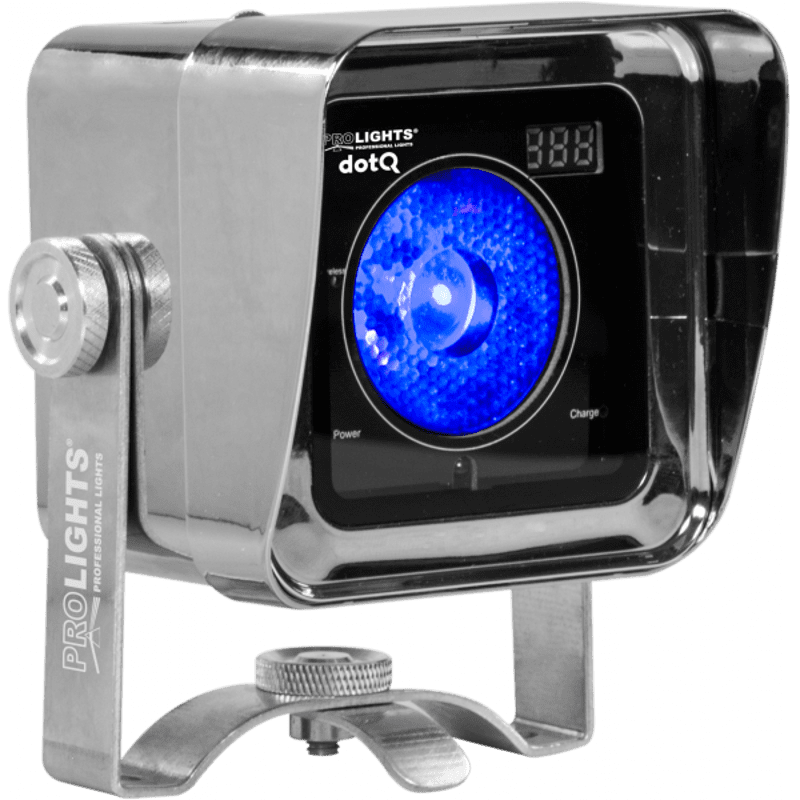

DOTQPACK is a bundle composed by 6pcs of DOTQ, IR remote controller, accessories and charger for the whole set - all included in a sturdy ABS case. DOTQ is an ultra-compact, wireless, battery, LED accent luminaire designed to complement uplighting both inside and outside a room. The compact form factor and chrome finish allow it to be used anywhere that needs a “little lift” to finish off the perfect event design.

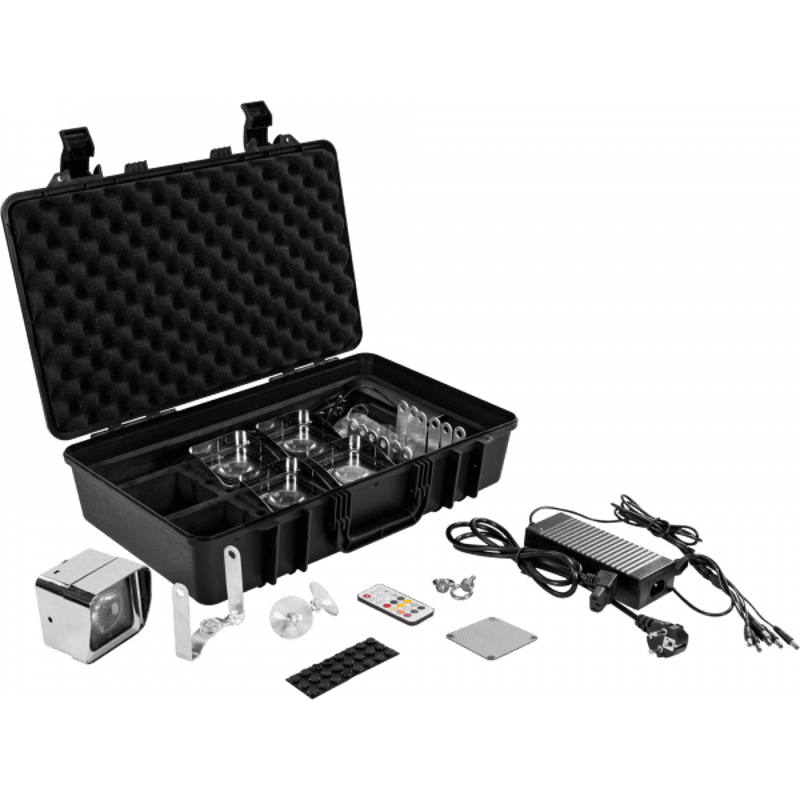

Box Content
- 6 x DotQ LED Lights
- 6 x Hanging Bracket

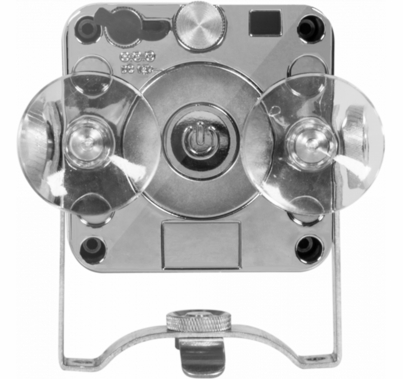

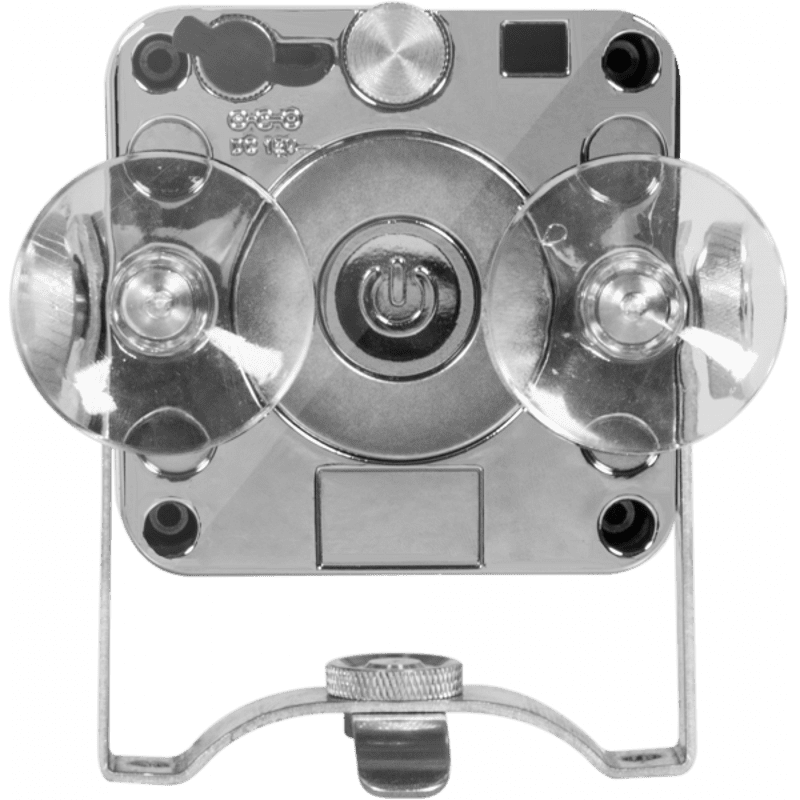

- 12 x Air Suckers

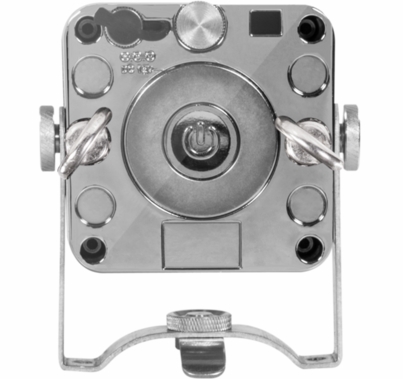

- 6 x Eye Bolt
- 6 x Magnetic Frost Filter
- 6 x Top Hat
- 1 x IR Controller
- 1 x Battery Charger for 6 DOTQ
- 24 pcs Rubber Feet
- Adjustable Foot Support
Features
- Even, powerful saturated and pastel colours from single 15W RGBW LED.
- Chrome finish, ultra-compact size and IP65 rating for incredible versatility.
- DOTQ-PACK option including ABS flight case containing 6 fixtures, charging station, top hats, magnetic frost filters, IR controller, eye bolts, suction cups, yokes.
Light Source
- Source: 1x15W RGBW LED
- Luminous flux: 203lm
- Lux: 467lux @3m full
- Source life expectancy: >50.000 h
Optics
- Beam angle: 15°
- Field angle: 23°
- Additional optics: Magnetic Frost filter included for wider diffusion
Colour System
- Colour mixing: RGBW/FC
- White presets: 2800-9000K
- Colour wheel: virtual colour wheel with presets
- Macros: built-in white presets
Dynamic Effects
- Static colour mode: selection of static colour
- Manual colour mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
Body
- Hardware on-board: Frost, foots, IR, charger, bracket
- Tilt angle: ° adjustable foot support for tilt regulation (up to 20°)
- Body: sturdy policarbonate body
- Body colour: mirror finishing
Control
- Protocols: W-DMX
- DMX channels: 5/9channel
- W-DMX: included, Lumen Radio CRMX receiver
- Display: 3-Chars display
- IR: infrared remote controller for simple control, addressing and settings
Electronics
- Dimmer: linear 0~100% electronic dimmer
- Strobe / shutter: 1-25 Hz, electronic
- Operating temperature: 0° ~ +35°
- Flicker: flicker free operation
Electrical
- Power supply: 100-240V – 50/60Hz
Battery
- Battery: 11,1V lithium
- Estimated battery life in colour change mode up to: 16h
- Estimated battery life in full-mode up to: 6h
- Re-charge connection: power cable
- Re-charge time: 3h/max
- Battery status: LED battery status indicator
Physical
- Cooling: natural cooling of the peculiar chassis and to absence of fans

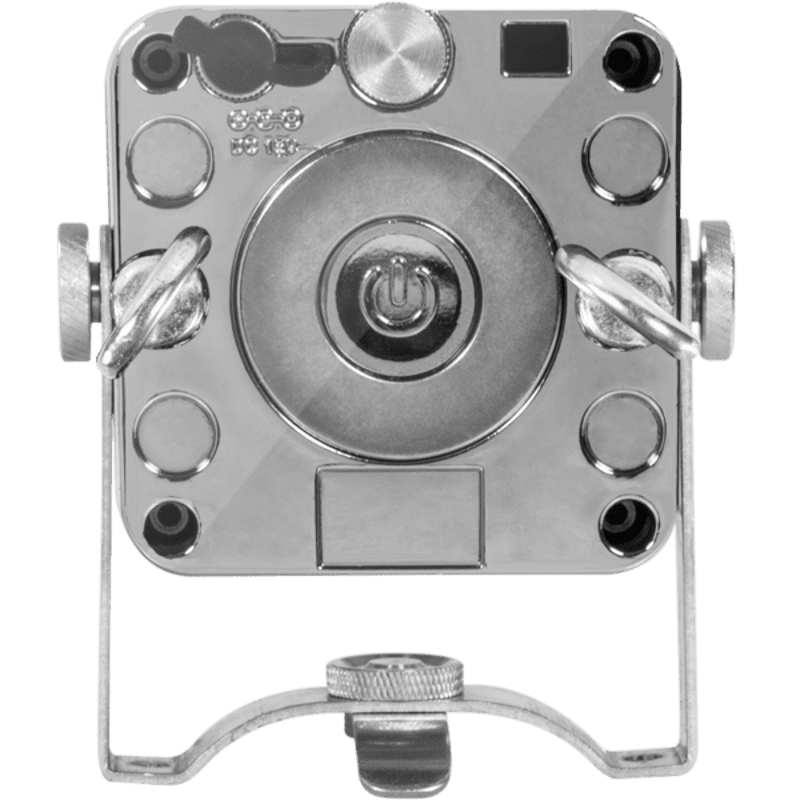

- Suspension and fixing: hanging bracket suitable for safe hanging and positioning
- IP rating: For temporary outdoor use - IP65 (front) - IP54 (bottom)
- Dimensions (WxHxD): 88x88x63mm / 3.46''x3.46''x2.48''
- Weight: 0,6kg / 1.32lbs
