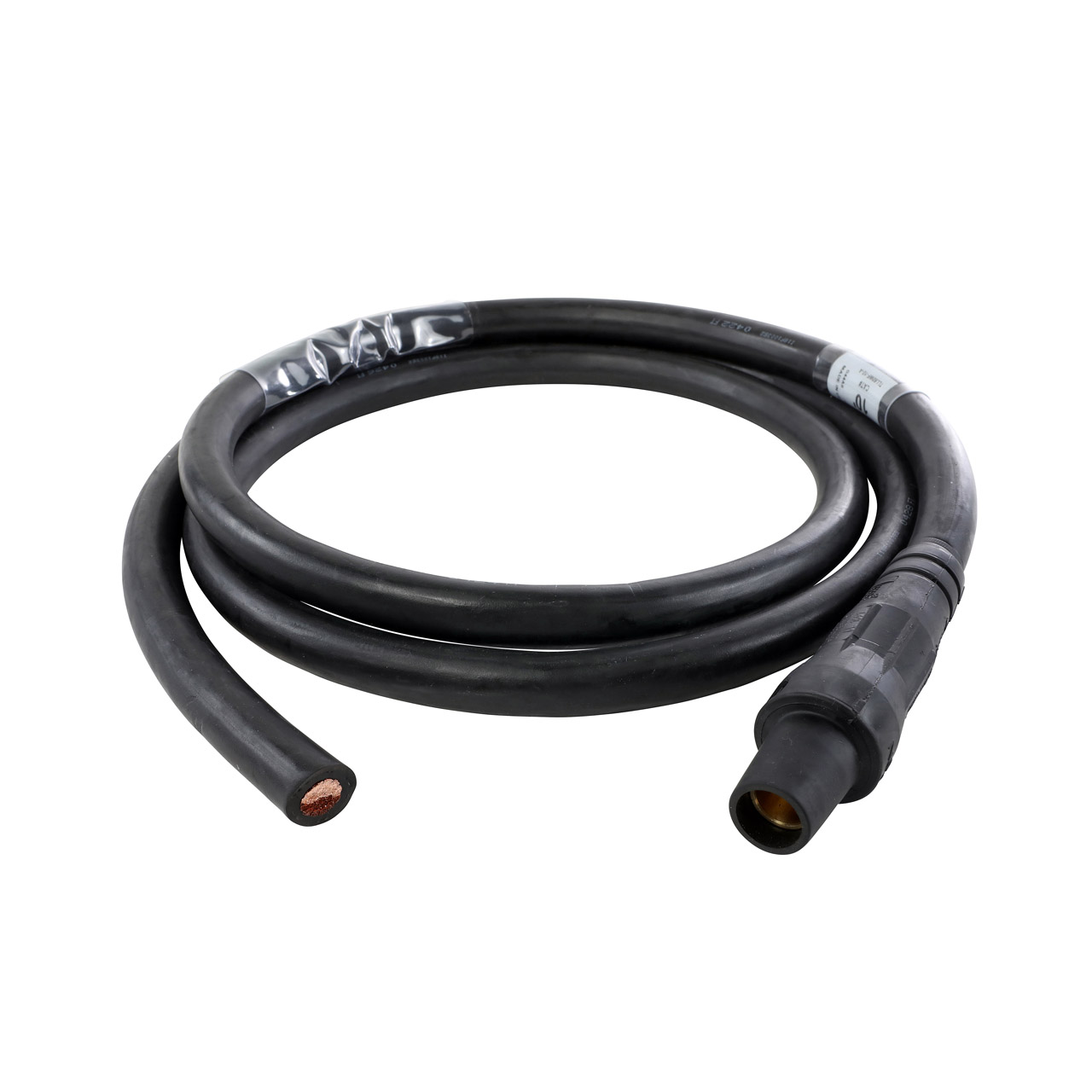

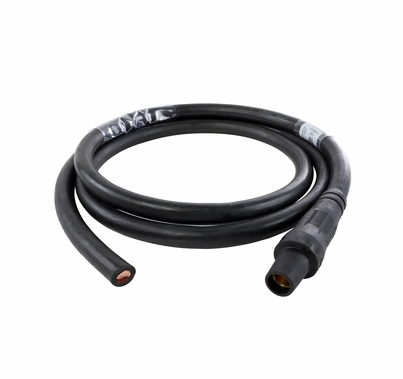

Lex 4/0 Tie In Female Cam to Blunt End 10ft Type SC

PRODUCT DESCRIPTION

Lex 4/0 Tie In Female Cam to Blunt End 10ft Type SC

Description

Cam single cable: 4/0 AWG 600VAC Type SC (entertainment) cable.

Markets Served

Theatrical, Motion Picture, Concert Touring, Live Events, Convention Centers Application

Application

Allows qualified personnel to tie-in to a lug or bus bar (ring terminal required for bus bar).

Features & Benefits

• Weatherproof type cable assemblies.
• Hard usage single layer thermoset jacket
• Provides excellent flexibility and resistance to oil and solvents
• Heat & flame resistant - will not melt

Specifications

• Rating: 400 Amps
• Cable:
  Weather resistant/UV resistant type SC hard usage cable
  Temperature rating: -50c to 105c
  Industry approvals: UL/MSHA Listed, RoHS compliant
  Annealed Stranded Copper: per ASTM-B-172
• Connector:
  Connector Type: Cam-type female series 16 inline
  NEMA rating: Type 3R - weatherproof
  Sleeve material: santoprene (TPE)
  Contact: Brass
  Strain Relief: Copper shim & wire
