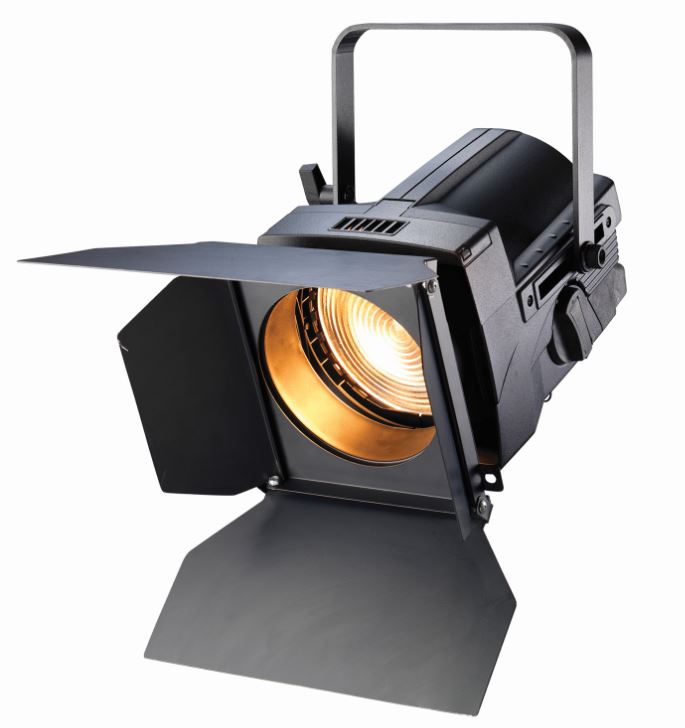

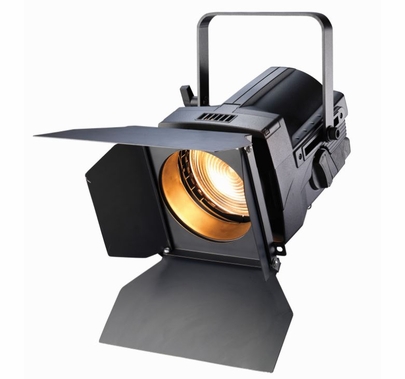

ETC Source Four Fresnel 750W Zoom

ETC Source Four Fresnel 750W Zoom

Bulb, Power Connector, Barndoors, C-Clamp and Safey Cable Not Included.

To mount this fixture on a stand a stand adapter (TVMP) is required.

ETC combines the efficiency of the HPL lamp with the singular optical qualities of the fresnel optical system to create the truly advanced ETC Source Four Fresnel. Traditional fresnel optics provide a unique quality of blending wash light and beam shaping via barn doors for well-defined, soft-edged area lighting. The Source Four Fresnel combines this classic system with a unique reflector design enabling the HPL 750W-equipped Source Four Fresnel to equal the lumen output of other 1000W fresnel fixtures. Spot-to-flood focus is accomplished by large, easy-to-use knob for quick adjustments in inconvenient positions. The unique Quick eXchange socket design permits re-lamping from underneath the fixture without breaking focus in most situations.

PHYSICAL:

• Rugged die-cast aluminum construction
• Convenient full-size zoom adjustment knob
• Unique HPL Quick eXchange socket enables easy lamp changes
• Sliding yoke mount for variable balance point
• Fully enclosed accessory slots for no light leak
• UL and cUL listed

ELECTRICAL

• 100V-240V, 50/60Hz
• High temperature three-conductor 36” leads in a glass fiber outer sleeve
• Supports ETC Dimmer Doubling™ technology

OPTICAL:

• 7”/175mm aperture
• Zoom range:
  • 9°-52° beam angle
  • 20°-65° field angle
• True fresnel optical system for good barn door beam shaping performance
• Glass reflector with dichroic coating optimized for HPL performance

LAMP:

• HPL – compact tungsten filament contained in a krypton/xenon-filled quartz glass envelope
• Uses same lamp as all Source Four fixtures for common inventory
• 750W maximum
• Patented filament geometry makes for extremely efficient light collection and transmission
• Integral die-cast aluminum heat sink lamp base

DIMENSIONS: 9.43"x12.4"x9.1"

WEIGHT: 13.3 lbs

Item Includes:

• Fixture with yoke
• 3ft. ac pigtail cable
• color frame
  ***Barndoors in Photo NOT Included***
